32 LME620-AI / PME120-AI / EAN823 / EBN853 / EBN861 ELECTRONIC UNIT | OI/PME/LME/EAN823/EBN853/EBN861-EN REV. E
… 7 Commissioning and operation
… Commissioning and service field

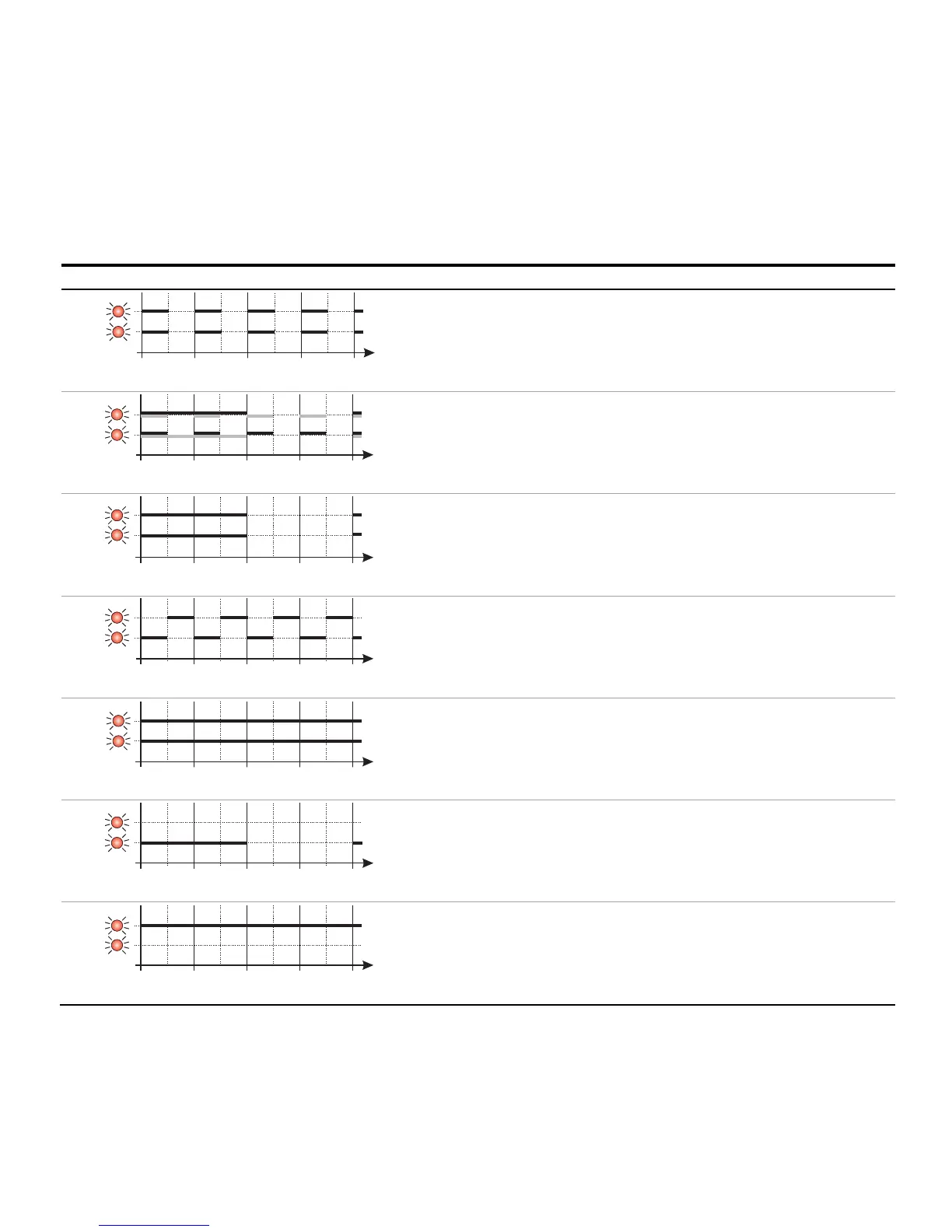

Meaning of the LED indicators
The LEDs 100 % / 0 % on the commissioning and service field (Figure 20 on page 31, Pos.
2 + 6) flash at different rates, depending
on the function that has been initiated.
LED Flash code 0 % / 100 % Description
t [s]
0 0,25 0,750,5 1
0%
100%
M11178a
Adjustment mode
Both LEDs flash synchronously at 4 Hz.
t [s]
0 0,25 0,750,5 1
100%
0%
M11178b
Accept 1. Position correct
Depending on which position is approached first, either LED 100 % flashes at 1 Hz and LED
0 % continues to flash at 4 Hz, or vice versa.
t [s]
0 0,25 0,750,5 1
0%
100%
M11178c
Accept 2 Position correct
Both LEDs flash at 1 Hz.
t [s]
0 0,25 0,750,5 1
0%
100%
M11178d
Failure
Both LEDs flash alternately at 4 Hz.
t [s]
0 0,25 0,750,5 1
0%
100%
M11178e
ECOM688 or ECOM700 mode
Both LEDs light continuously (from software version 2.00).
t [s]
0 0,25 0,750,5 1
0%
100%
M11178f
MAN operating mode (manual) through ISF
The LED 0 % flashes at 1 Hz, LED 100 % is off (from software version 2.00).
t [s]
0 0,25 0,750,5 1
0%
100%
M11178g
MAN (Manual) operating mode via binary input or graphical user interface
The LED 100 % lights continuously, LED 0 % is off (from software version 2.00).
Note
The flash codes for MAN (manual) operating mode through ISF or binary input / graphic user interface can also occur at the same
time.
