2. Switch-disconnector opening from “closed” position
a) Fit operating lever into upper hole.
b) Turn lever counter-clockwise to “open” position.
3. Switching from “open” position to “earthed” position
a) Fit operating lever into lower hole.
b) Turn lever clockwise to “earthed” position.
4. Switch-disconnector opening from “earthed” position
a) Close cable compartment door.

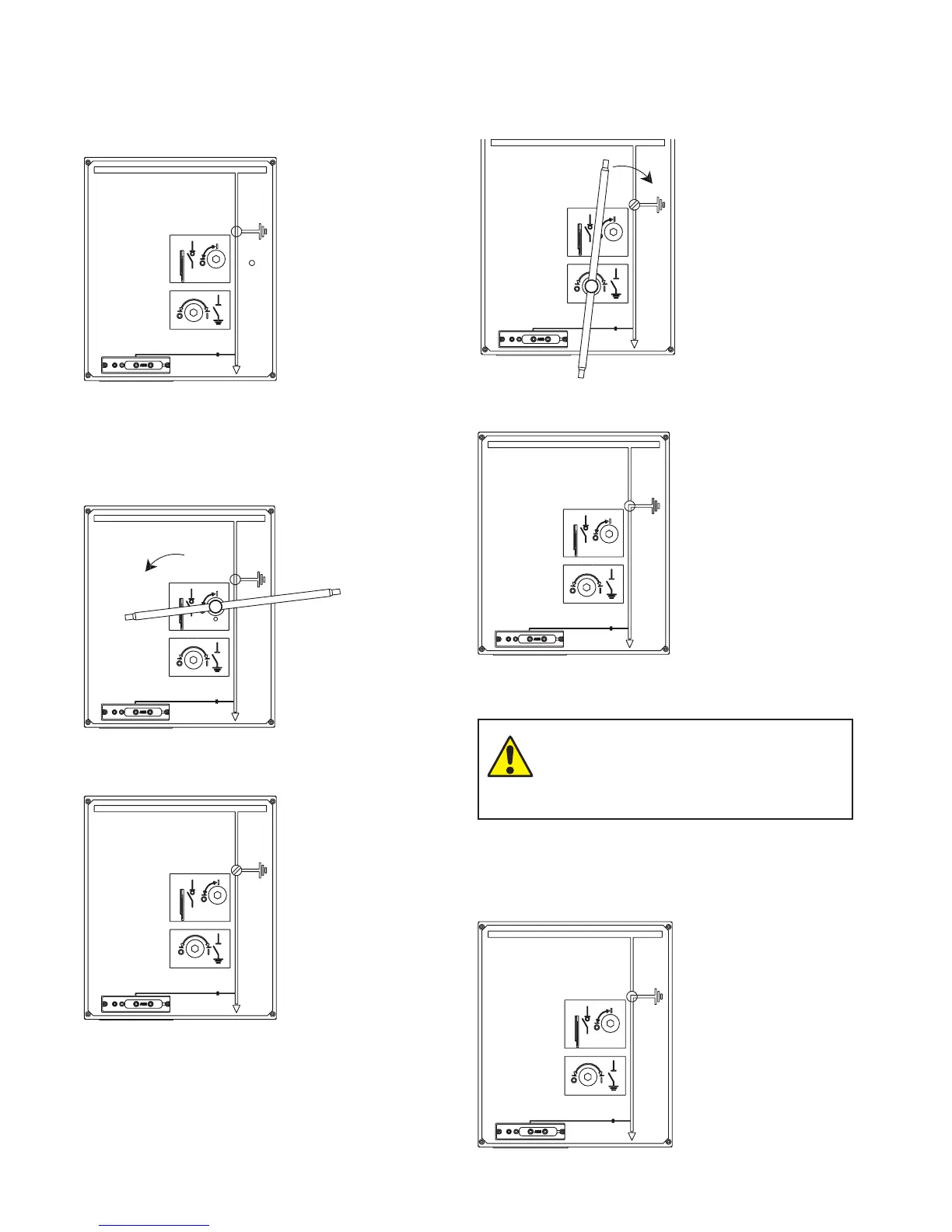

Fig. 25 - “Closed” position
Fig. 26 - “Closed” position with operating lever
Fig. 29 - “Earthed” position with operating lever
Fig. 28
Fig. 30 - “Earthed” position
Fig. 27 - “Open” position
NOTE
The cable compartment door can only be
opened when the switch-disconnector is in
the “earthed” position.
