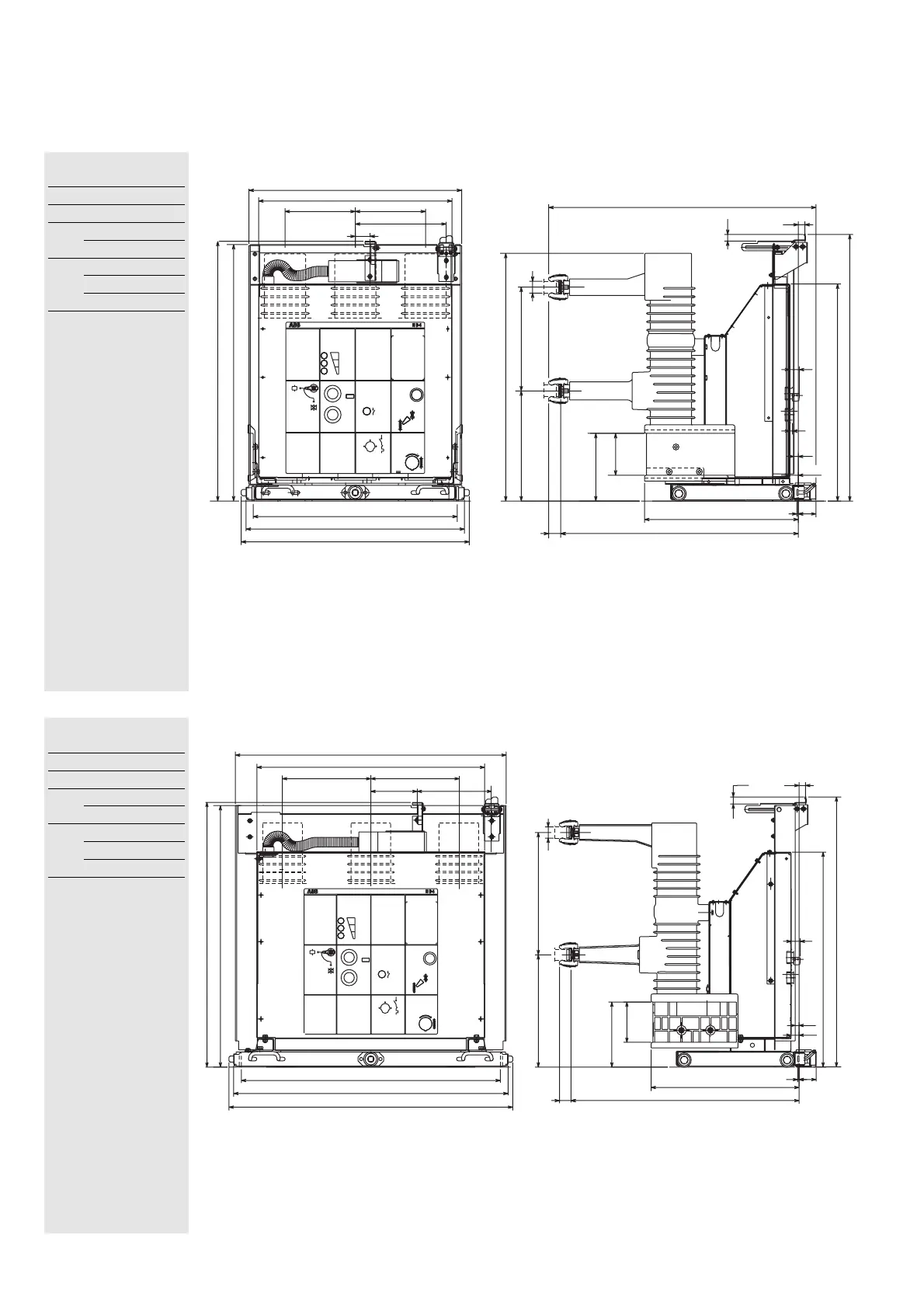

30/40 - 647016/002 M3650 - 2000/05/24 ro-en
Φ
35
329 310
4
53
710
36
799
792
460
202
125
12.5
25.5
28
8
20
23
649
740
44
210 210
636
653
682
776
610
578
272
767
Φ
Q60
805
853
882
144 232
275 275
842
708
821.5
813
35
349 380
202
125
53
4
460
12
838
20
710
36
25
28
23
668
Intrerupatorul debrosabil pentru celule UniSafe
Tip
Type
HD4/W
TN 7183
Ur 24 kV
Ir 630 A
1250 A
Isc 16 kA
20 kA
25 kA
Tip
Type
HD4/W
TN 7217
Ur 24 kV
Ir 630 A
1250 A
Isc 16 kA
20 kA
25 kA
Plug-in circuit-breakers for UniSafe switchboards
