Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Disassembling and assembling
turbocharger
8.3 Page 108
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

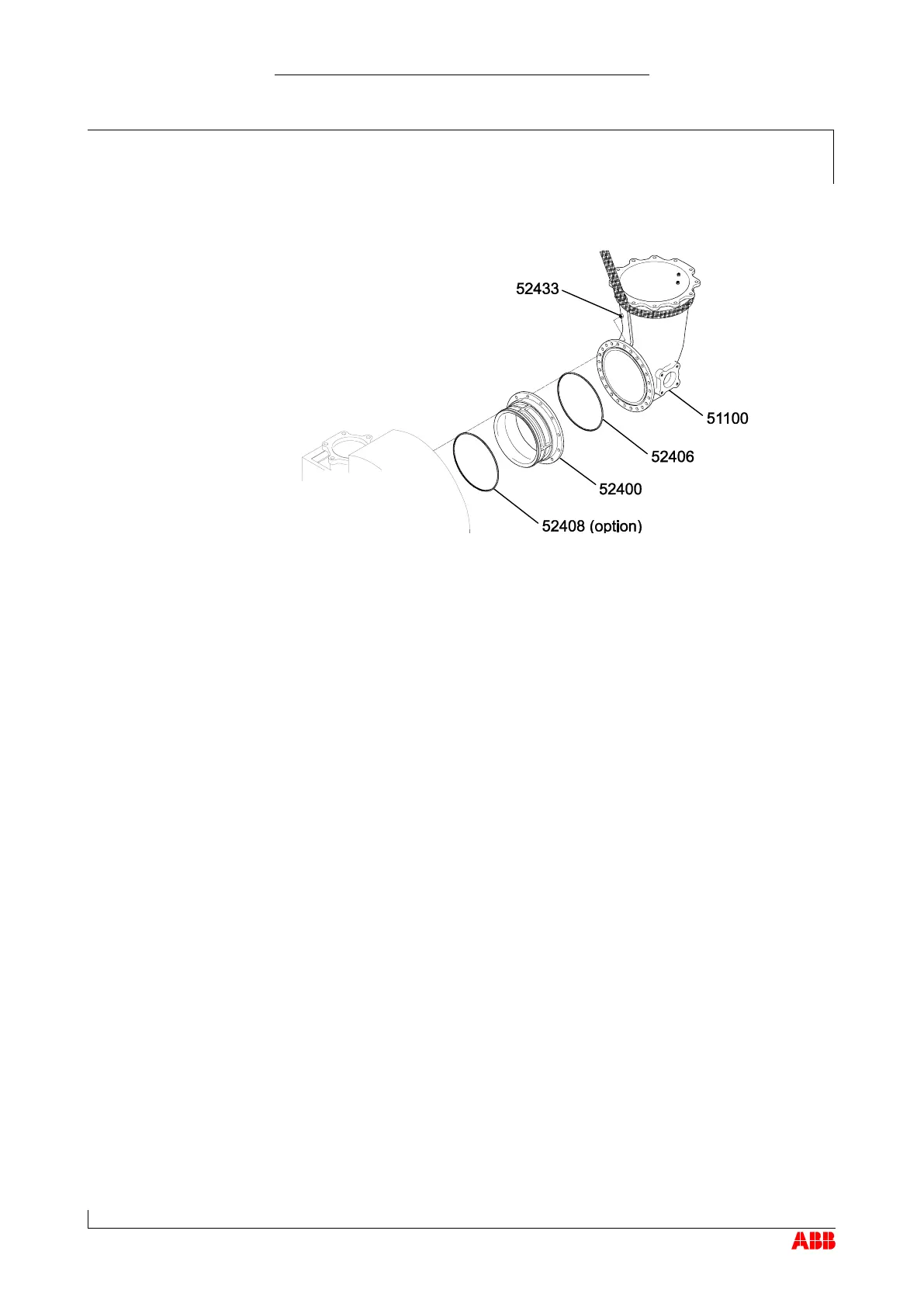

Fitting the gas outlet flange and gas outlet bend
τ If provided, fit the C-ring (52408).
τ Fit the gas outlet flange (52400).
τ In the case of gas outlet bends (51100) from ABB Turbo Systems:
always replace the gasket (52406) (see the chapter entitled Spare
parts).
τ Apply high-temperature grease to contacting surfaces and threads.
τ Fit the turbine casing using the nuts (52433) while observing tightening
torques specified in the table of tightening torques.
τ Fasten the insulation.
τ Attach pipes in accordance with the enginebuilder's instructions.
