Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Disassembling and assembling
turbocharger
8.3 Page 95
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F
Disassembling and assembling turbocharger
8.3
Removing the compressor casing
WARNING
Risk of burning
Touching hot surfaces or contact with hot operating materials can lead
to serious burns.
τ Do not touch hot surfaces and heed the warning plate on the turbo-
charger.
τ Wear heat-resistant safety gloves and protective clothing.
τ Allow the turbocharger to cool down before carrying out any work.
Wear safety gloves to protect against thermal hazards.
τ Disconnect all air lines in accordance with the enginebuilder’s instruc-
tions.
τ Remove the screws for the compressor casing insulation and disman-
tle the insulation.

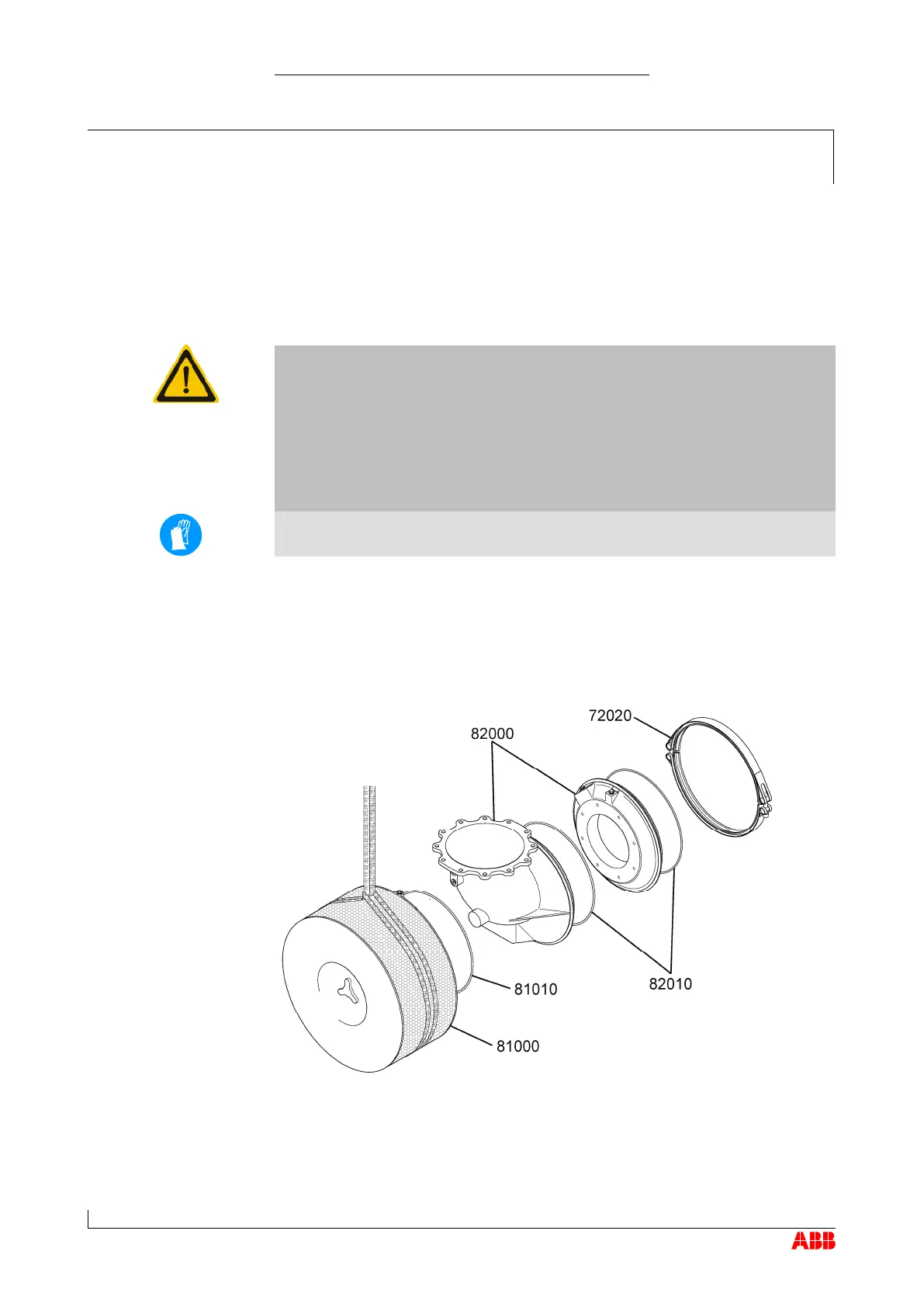

τ Undo the V-clamp (72020) and remove the filter silencer (81000) or air
suction branch (82000).
8.3
If provided
