Operation Manual / TPS44-F.. - TPS61-F..
Operation 4
Speed measurement 4.4 Page 52
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F

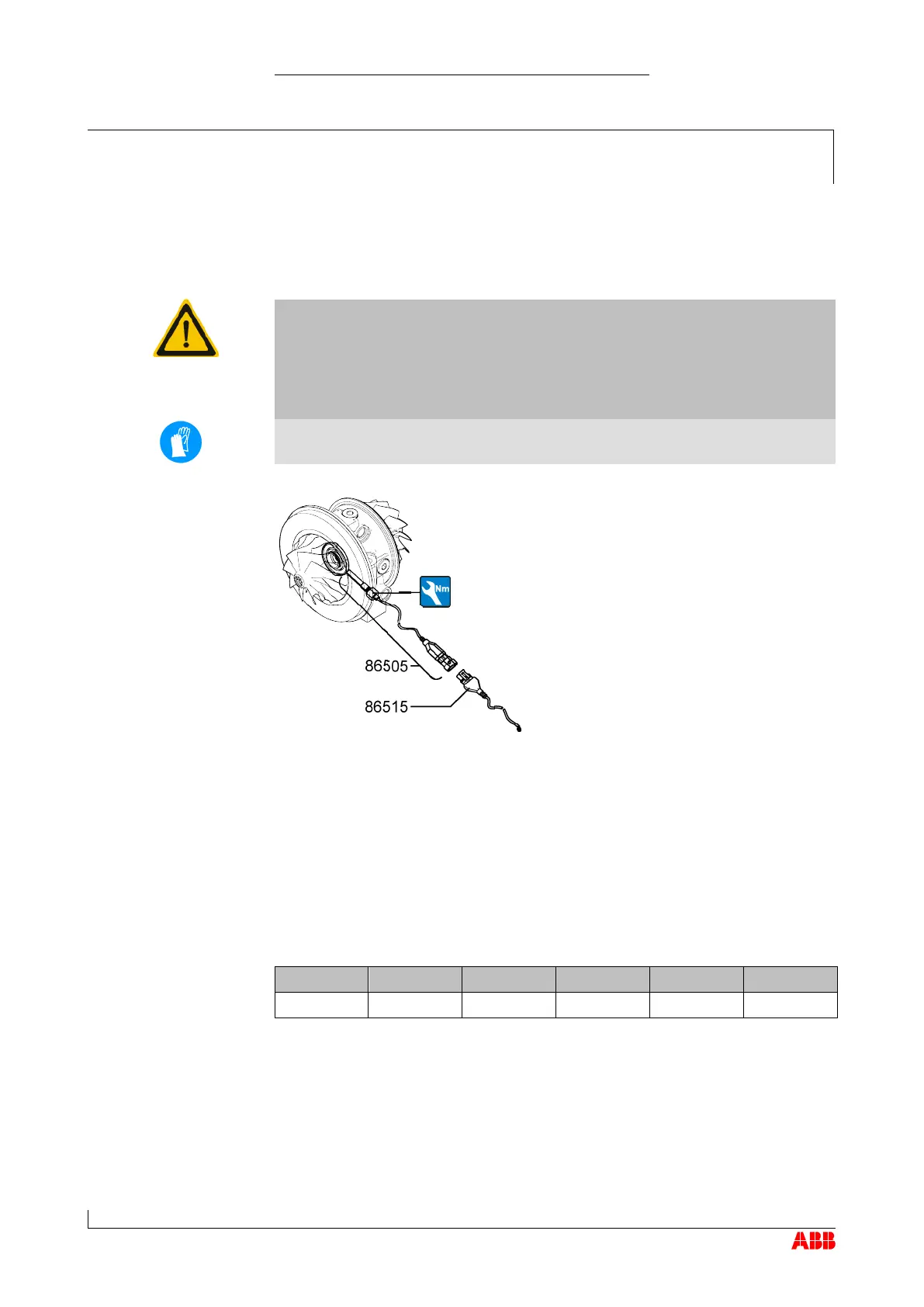

Replacing the speed sensor
WARNING
Hot cable connector and hot speed sensor
Risk of burning. During operation, the cable connector and the speed
sensor can reach temperatures exceeding 100 °C.
τ Wear safety gloves when removing the cable connector and speed
sensor.
Wear safety gloves to protect against thermal hazards.
τ Reduce engine performance to the idling speed, then stop the engine.
τ Switch off the lubricating oil supply to the turbocharger.
τ Disconnect the cable connector from the speed sensor.
τ Screw out defective speed sensor.
τ Screw in a new speed sensor up to the limit block.
τ Adhere to tightening torque.
Part number TPS44 TPS48 TPS52 TPS57 TPS61
86505 15 Nm 15 Nm 15 Nm 15 Nm 15 Nm
4.4.2
