Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly 8
Introduction 8.1 Page 93
© Copyright 2016 ABB. All rights reserved.
August 2017HZTL2412_ENRevision F
fined application. They are not commercially available products. Use
assembly / fitting devices only for the applications described.
€ Lifting gear
Equipment for lifting and transporting loads (ropes, chain hoists,
cranes). Lifting gear is not supplied by ABB Turbo Systems.

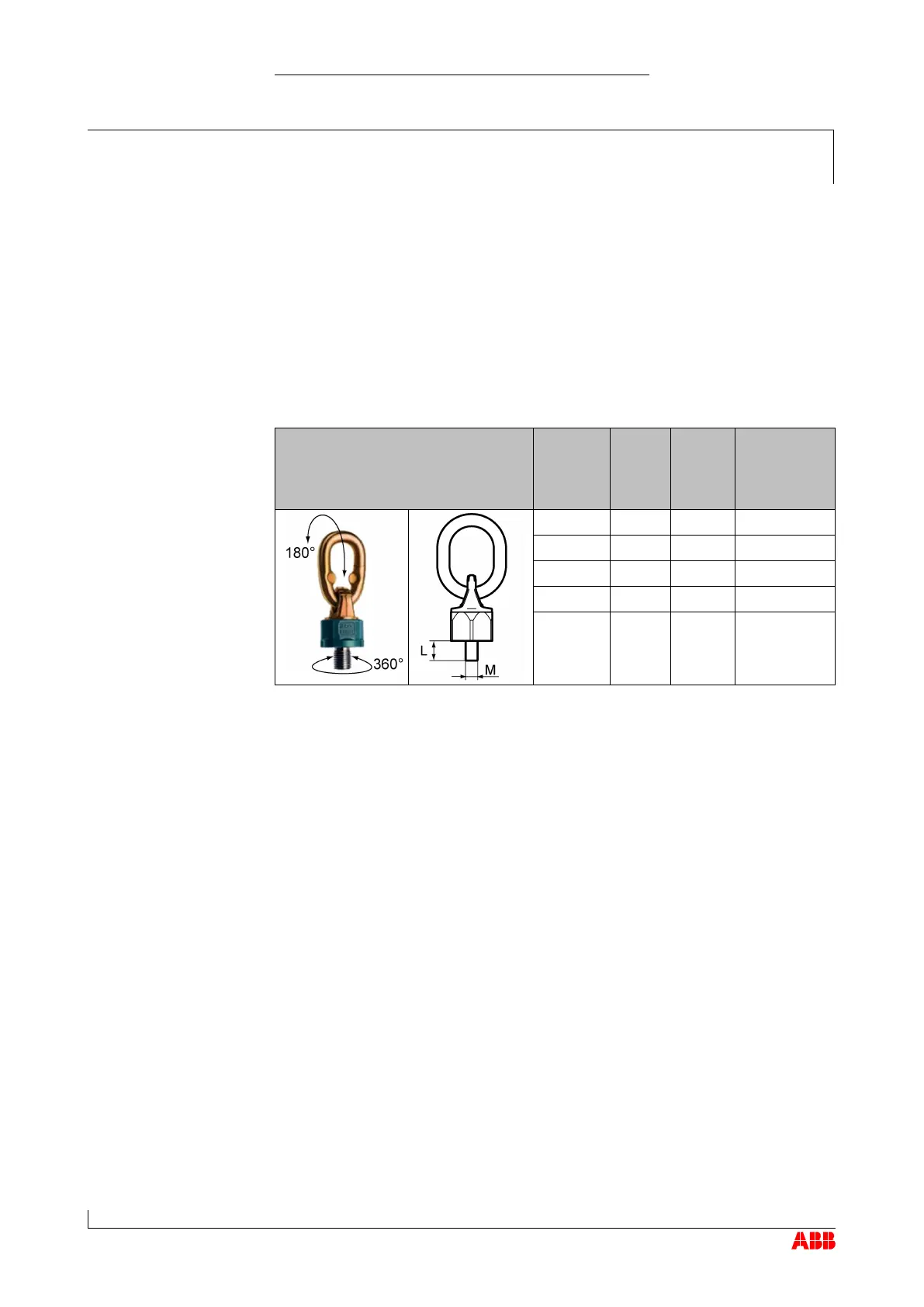

Swivel lifting eye to be used
A swivel lifting eye is required to lift loads safely (not supplied by ABB).
Swivel lifting eye Product Thread
M
Length
L
Minimum
load limit
(loading
capacity)
TPS44 M8 13 mm 150 kg
TPS48 M10 17 mm 250 kg
TPS52 M10 17 mm 250 kg
TPS57 M12 21 mm 350 kg
TPS61 M12 21 mm 500 kg
