ABB HT575442 - Fig. 61: Flange Tightening Sequence; Table 41: Tightening Torques 61009

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.13 Table of tightening torques
© Copyright 2017 ABB. All rights reserved. HZTL4033_DE Revision B December 2017

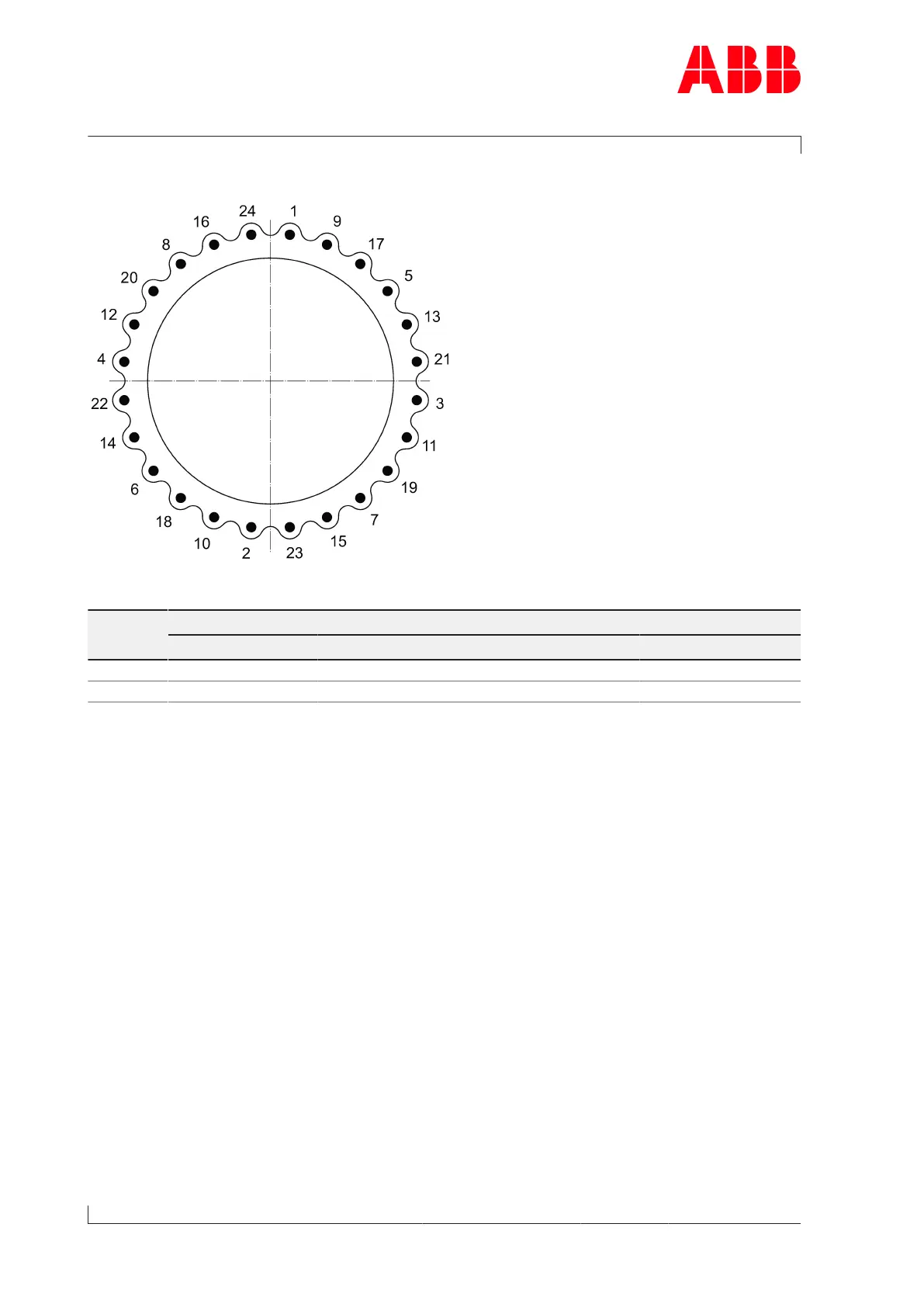

Tightening sequence
Fig.61: Flange tightening sequence
Product Tightening torque (61009) [Nm]
Step 1 Step 2 Step 3 Step 4
A170-M hand-tight 80 170 280
A175-M hand-tight 100 240 380
Table41: Tightening torques 61009
Page 84 / 99
