Operation Manual / 4 Product description / A100-M axial
12 Spare parts / 12.2 View of turbocharger with part numbers
© Copyright 2017 ABB. All rights reserved. HZTL4033_DE Revision B December 2017
12.2 View of turbocharger with part numbers

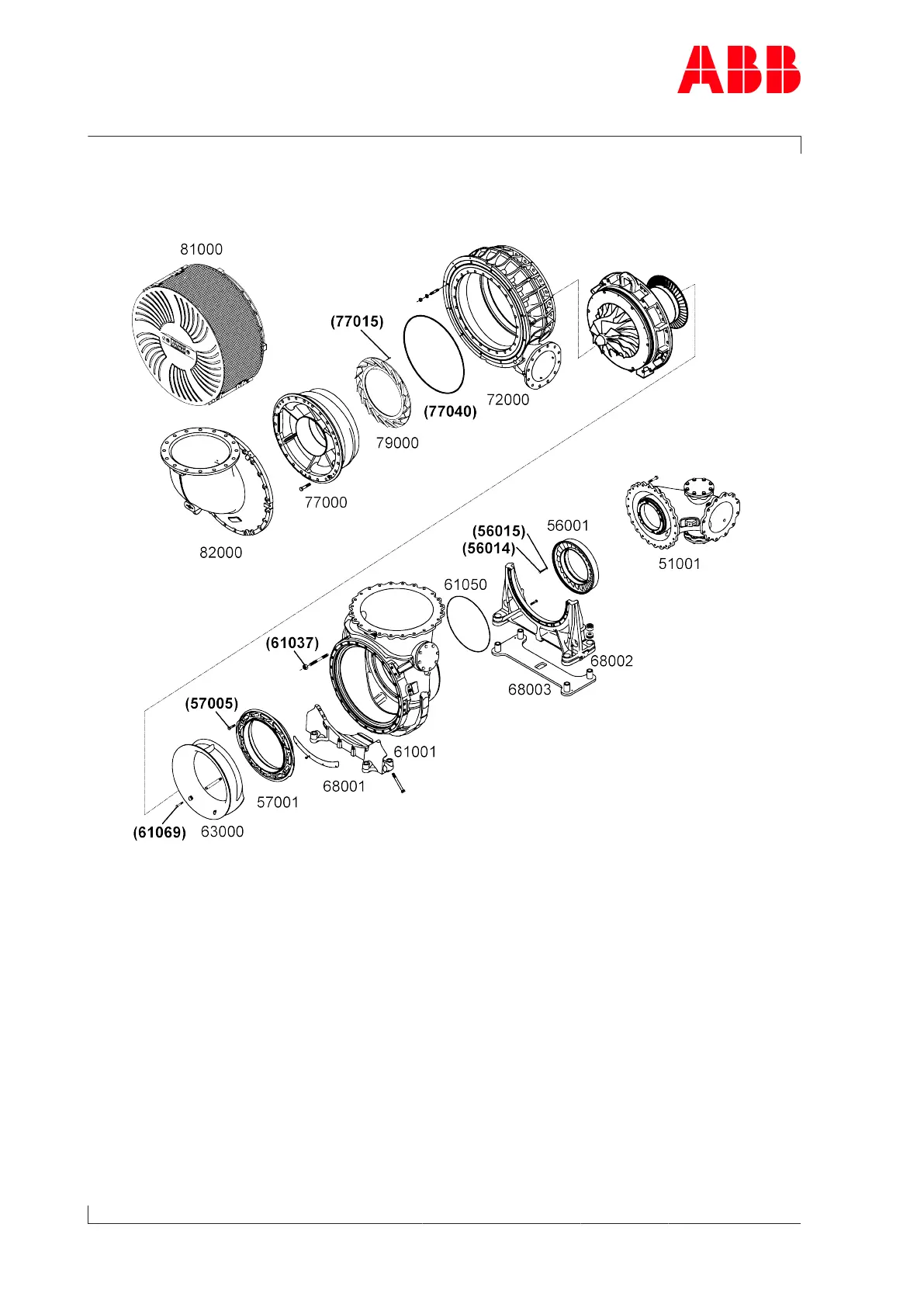

Fig.65: Turbocharger with part numbers
( . . . . . ) only available in customer spare part set (97070)
Page 96 / 99
