9 Dismantling and fitting with removed air inlet and gas outlet / 9.2
Removing the gas outlet casing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
Variant with support

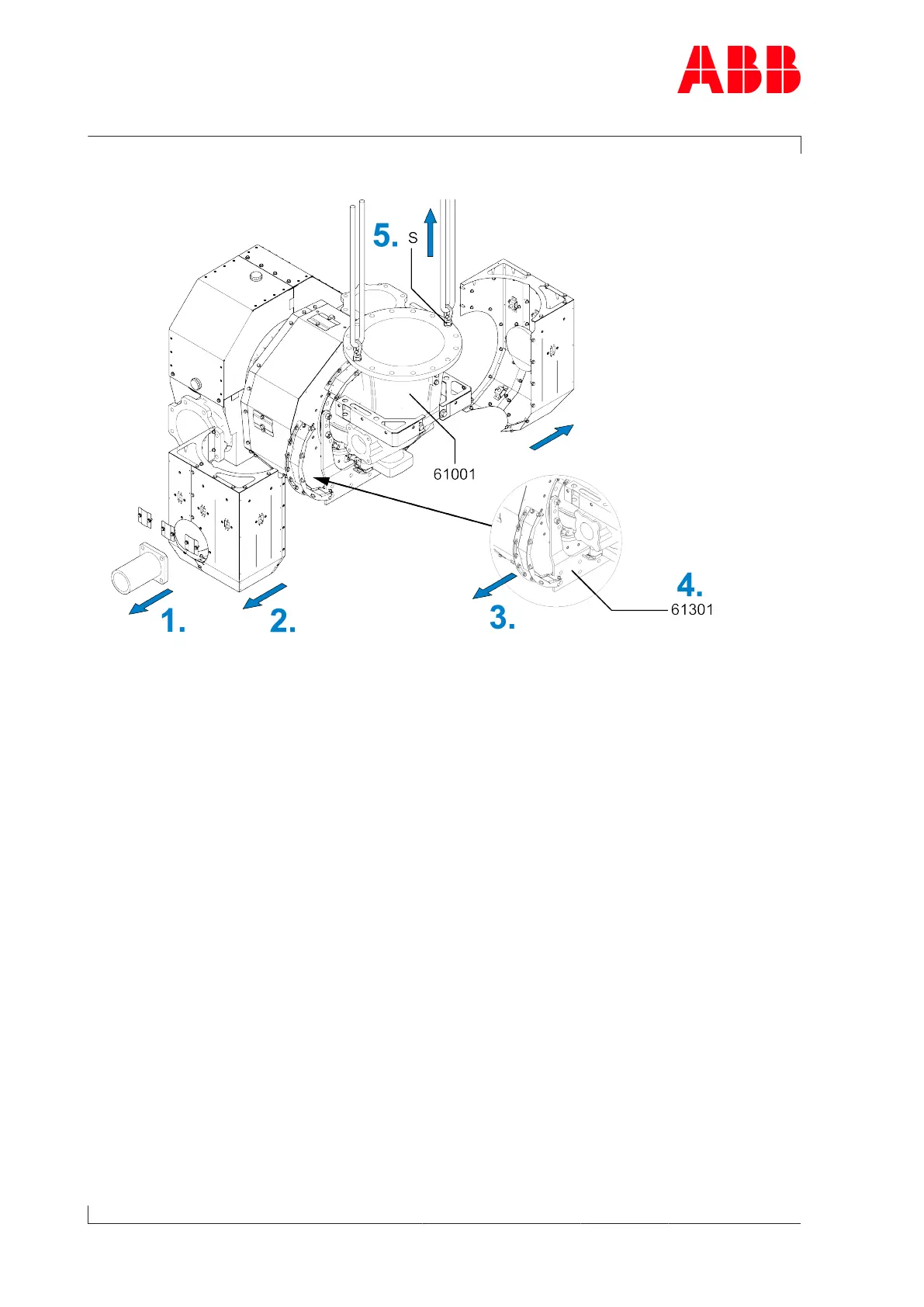

Fig.43: Removing gas outlet casing with support 1
1. If present: Remove waste gate pipe.
2. Remove gas outlet casing insulation.
3. Remove insulation ring.
4. Remove fixing screws of support (61301) to bracket.
5. Fit swivel lifting eyes (S) to the gas outlet casing (61001). Attach lifting gear to swivel lift-
ing eye and secure to a crane hook.
