9.4 Removing the cartridge group with compressor
and turbine casing

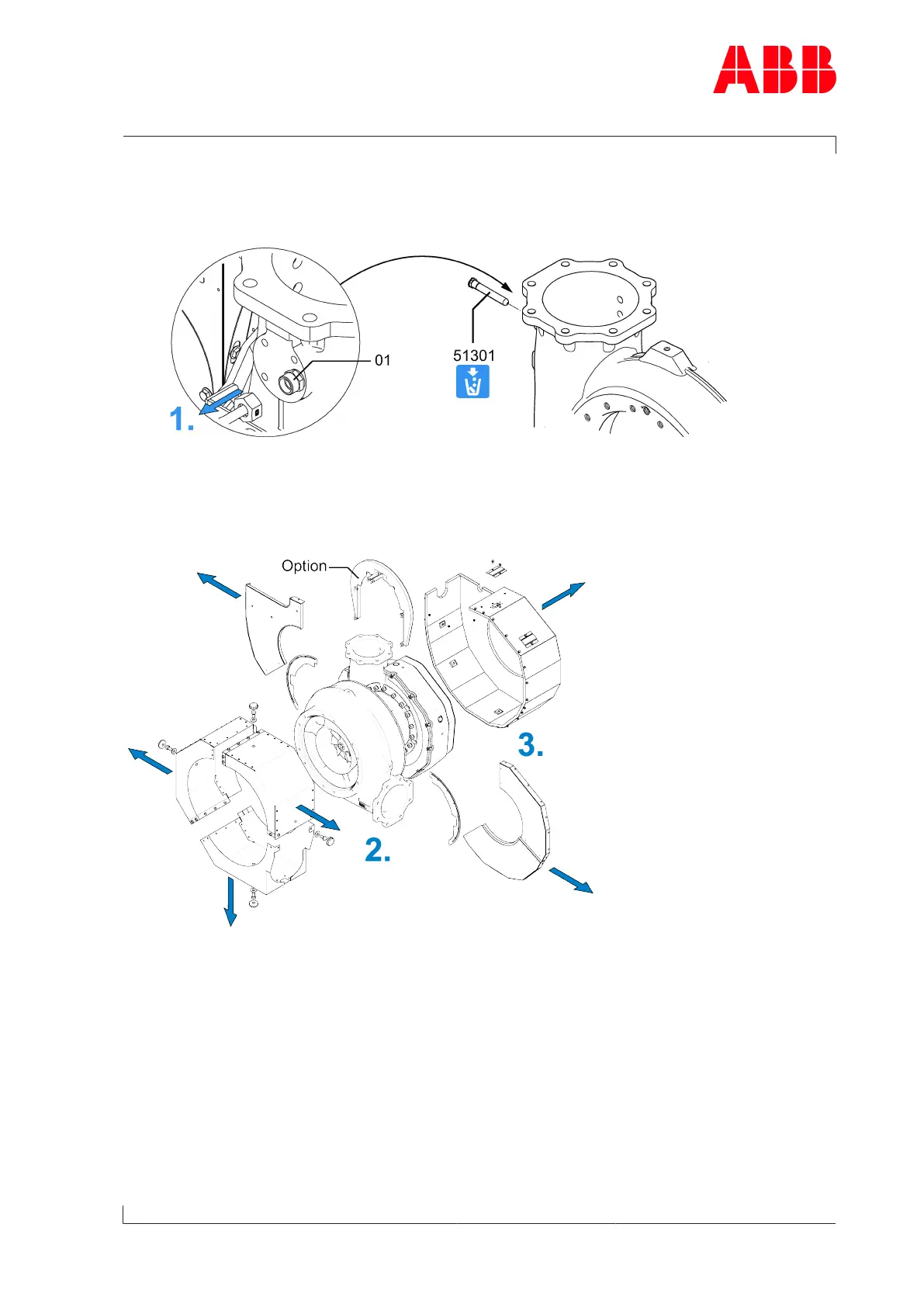

Fig.47: Turbine cleaning nozzle
1. If present: Loosen the turbine cleaning connection.
The cleaning nozzle (51301) must be replaced after each removal procedure. If the clean-
ing nozzle is not to be replaced, the screw connection (01) must not be loosened during
disassembly.
Fig.48: Remove insulation
2. Remove the compressor casing insulation.
3. Remove the turbine casing insulation.
