ABB HT597611 - Fig. 57: Removing the Nozzle Ring; Removing the Nozzle Ring

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.8
Removing the nozzle ring
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
9.8 Removing the nozzle ring

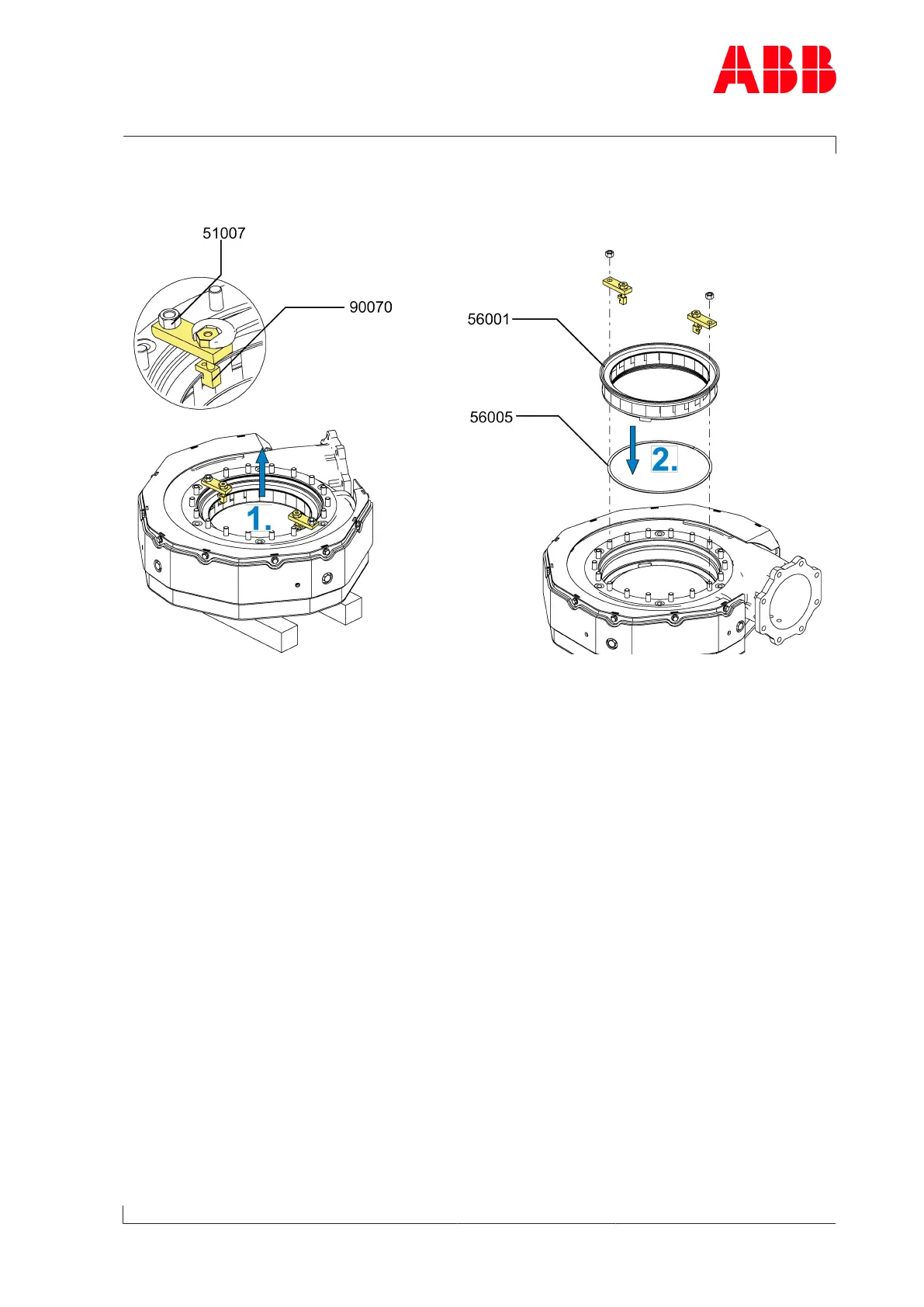

Fig.57: Removing the nozzle ring
1. Pull out the nozzle ring (56001) with the two extraction devices (90070).
2. Remove the lamellar sealing ring (56005).
