8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2020 . All rights reserved. HZTL2488_EN Rev.G March 2020

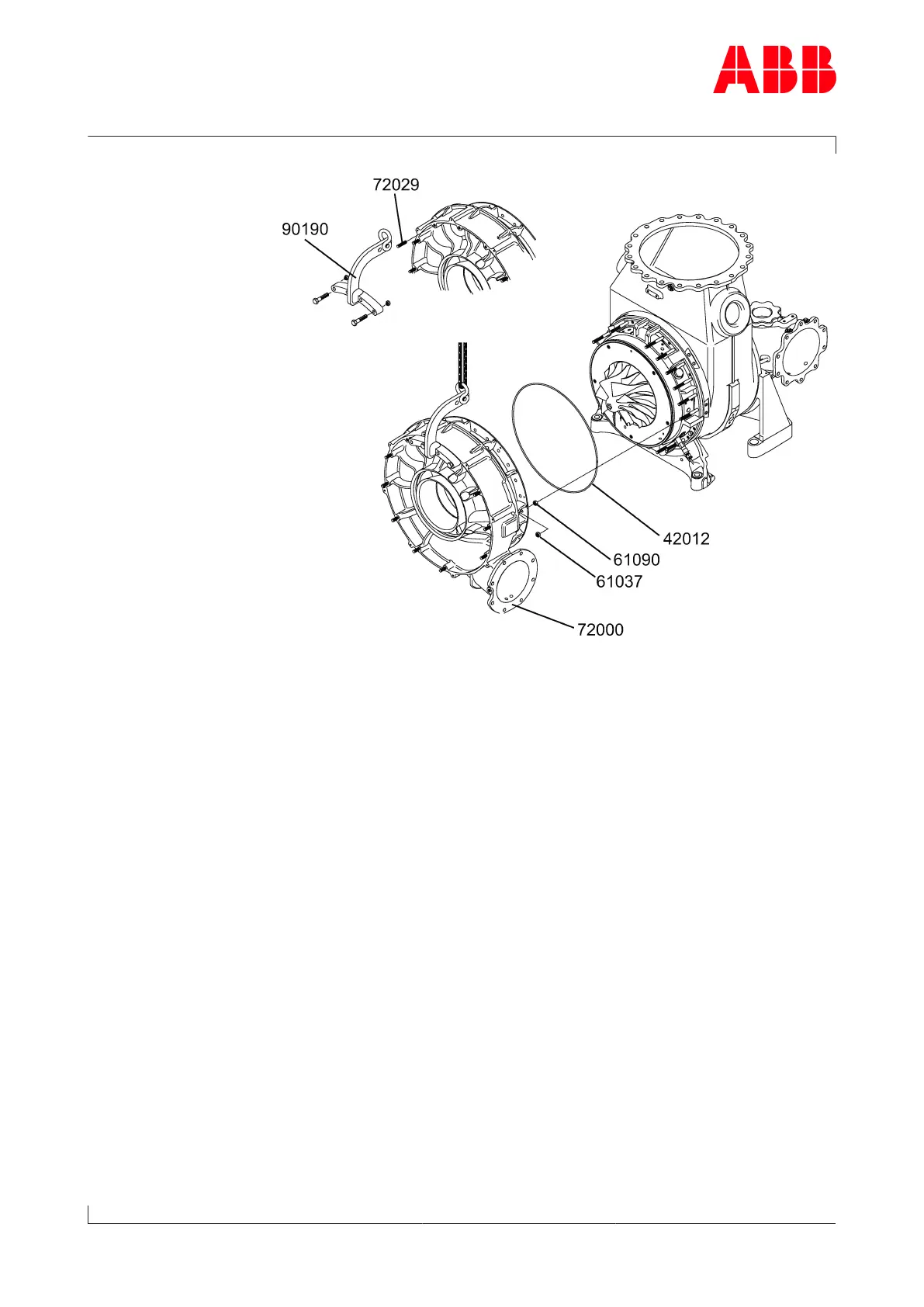

u Fit O-ring (42012).
u Attach lifting gear to the shackle of the lifting device (90190) and turn
the compressor casing (72000).
u Screw three press-off nuts (61090) onto bearing casing studs, equally
distributed around circumference, and screw up to end of thread by
hand.
u Push compressor casing (72000) fully onto cartridge group and se-
cure using nuts (61037).
u Secure three press-off nuts (61090) against compressor casing
(72000) by tightening them to specified torque (see chapter Table of
tightening torques).
u Remove lifting device (90190).
