Operation Manual / TPL67-C.. - TPL71-C..
7 Removal and installation / 7.2 Removing the turbocharger
© Copyright 2020 . All rights reserved. HZTL2488_EN Rev.G March 2020
7.2 Removing the turbocharger
u Disconnect all gas, air and oil lines in accordance with engine manu-
facturer’s instructions.
CAUTION
Oil orifices
There is an orifice for adjusting the oil pressure in each of the two oil
supply pipes of the bearing casing. When the cartridge group, the bear-
ing casing or the turbocharger-is being fitted to the engine, it must be
ensured that the orifices specified for the turbocharger are installed in
both oil supply pipes.
u Check that the oil orifices have been correctly installed.

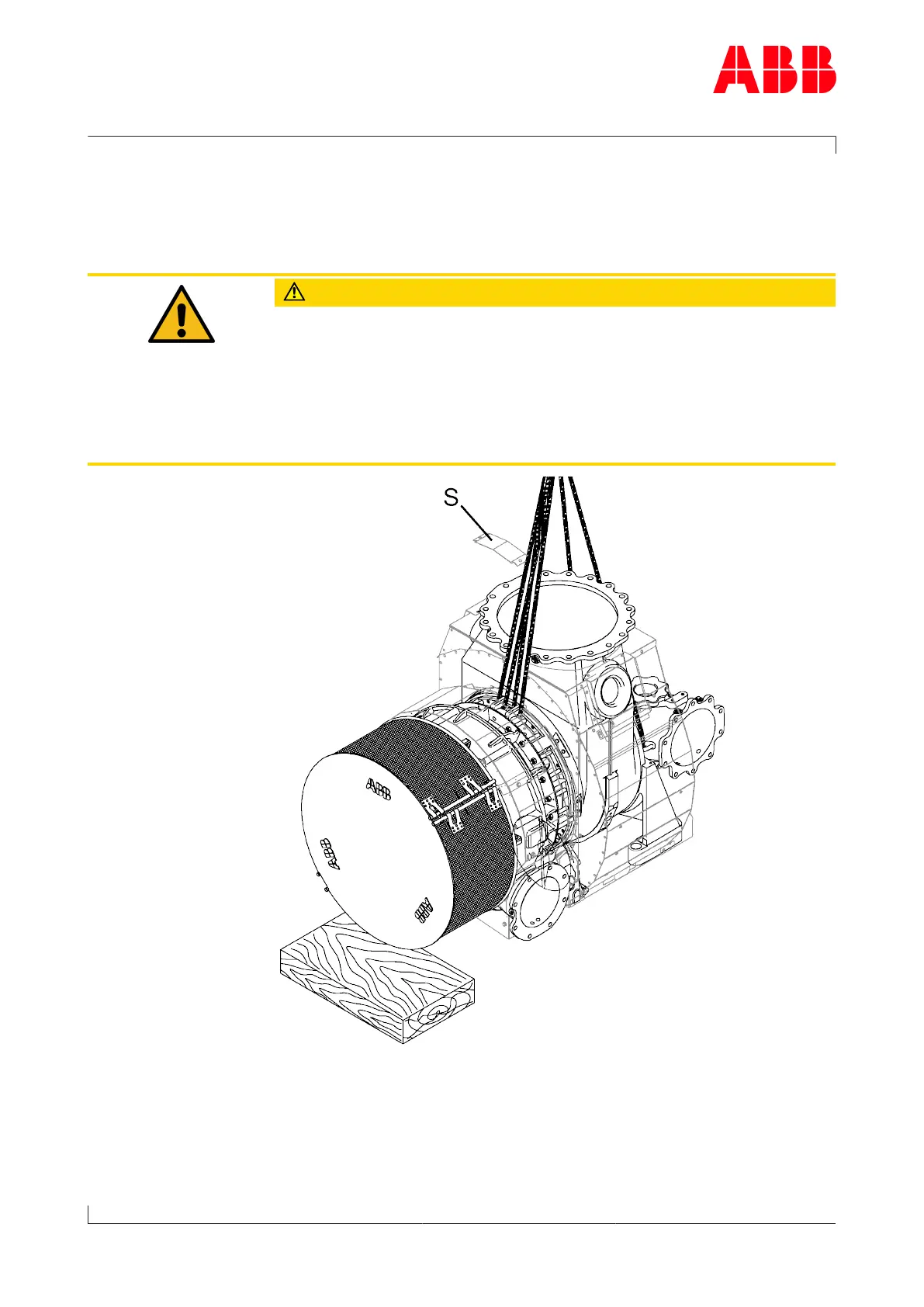

Use the two suspension eyes on the bearing casing (observe the mark-
ing on the insulation). The lifting gear around the gas inlet casing serves
to align the turbocharger horizontally.
u Remove the insulation shell (S) from the bearing casing and possibly
the insulation on the gas inlet casing. Leave any remaining insulation
on the turbocharger.
Page 78 / 125
