Operation Manual / TPL67-C.. - TPL71-C..
1 Preliminary remarks / 1.2 Layout and function
© Copyright 2020 . All rights reserved. HZTL2488_EN Rev.G March 2020

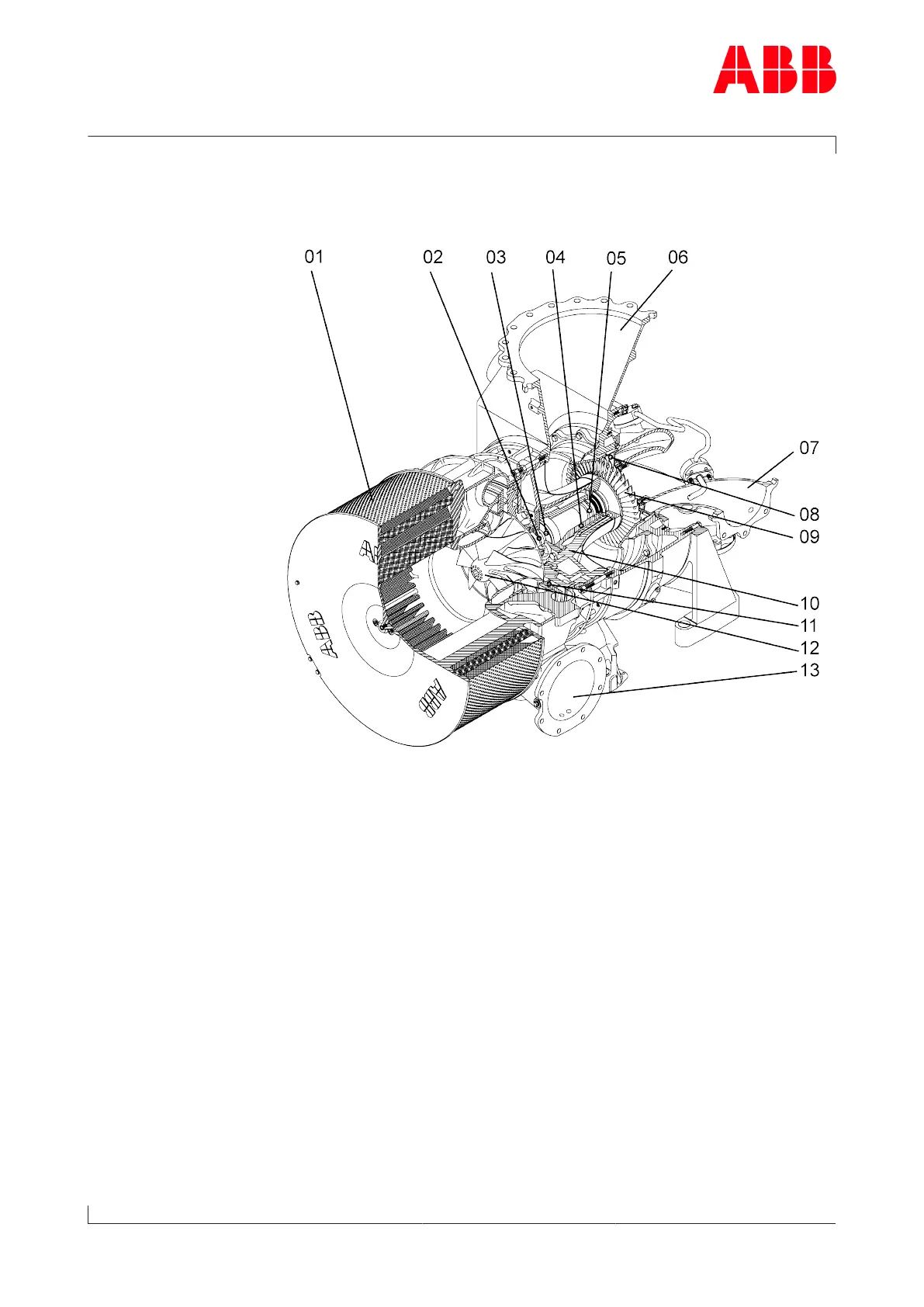

1.2 Layout and function
TPL67/71-C
01Filter silencer 08Nozzle ring
02Radial plain bearing 09Turbine wheel
03Thrust bearing 10Bearing casing
04Bearing bush 11Diffuser
05Radial plain bearing 12Compressor wheel
06Gas outlet casing 13Compressor casing
07Gas inlet casing
Page 4 / 125
