Operation Manual / TPL67-C.. - TPL71-C..
4 Operation / 4.1 Noise emissions
© Copyright 2020 . All rights reserved. HZTL2488_EN Rev.G March 2020

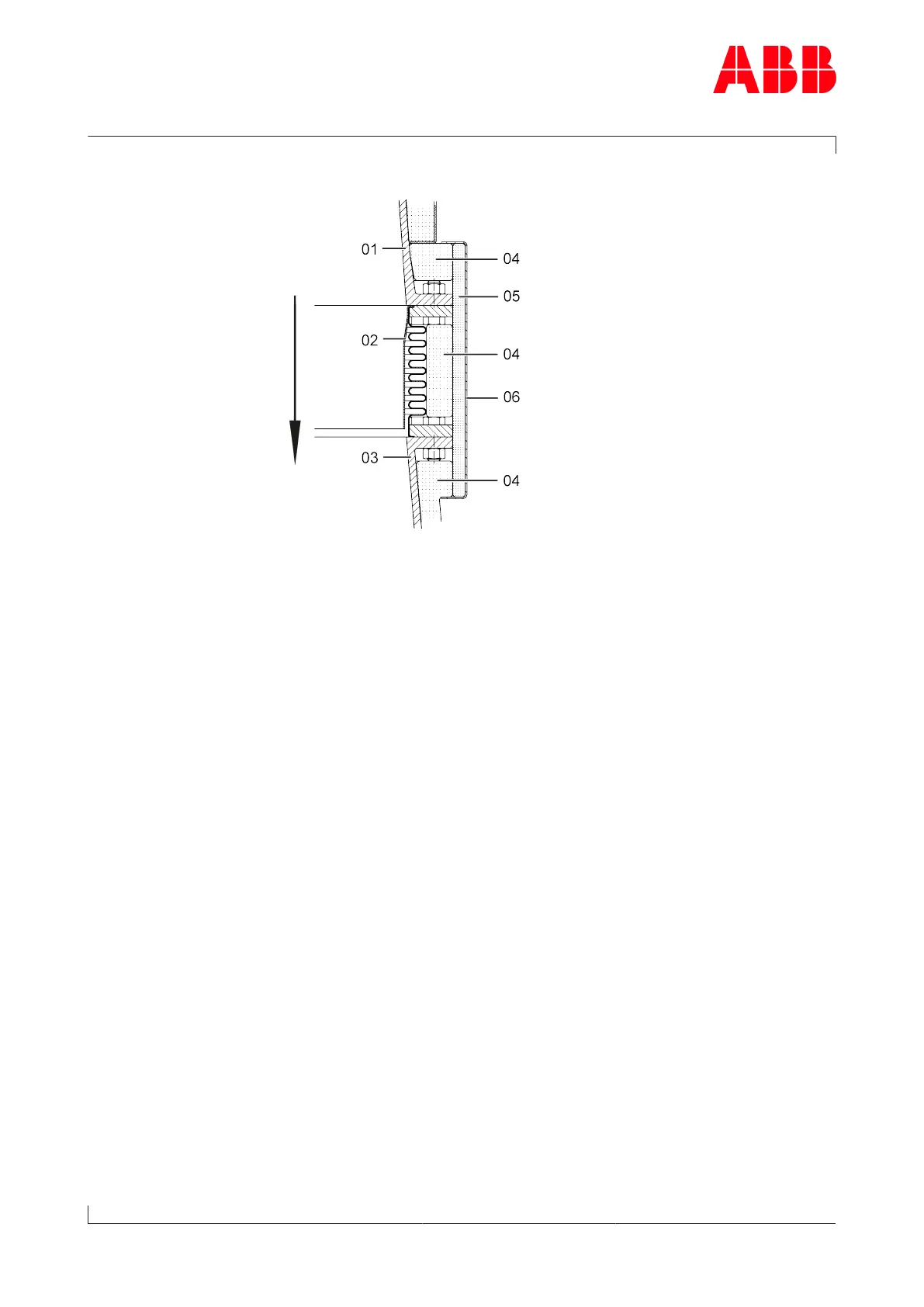

Suggestion for noise insulation of the bellows
01 Compressor casing 04 Insulation pads
02 Bellows 05 Insulation mat (at least 15 mm)
03 Charge air duct / scavenging
air line
06 Sheet metal cover
