Operation Manual / TPL67-C.. - TPL71-C..
8 Disassembly and assembly / 8.3 Removing and fitting filter silencer
or air suction branch
© Copyright 2020 . All rights reserved. HZTL2488_EN Rev.G March 2020

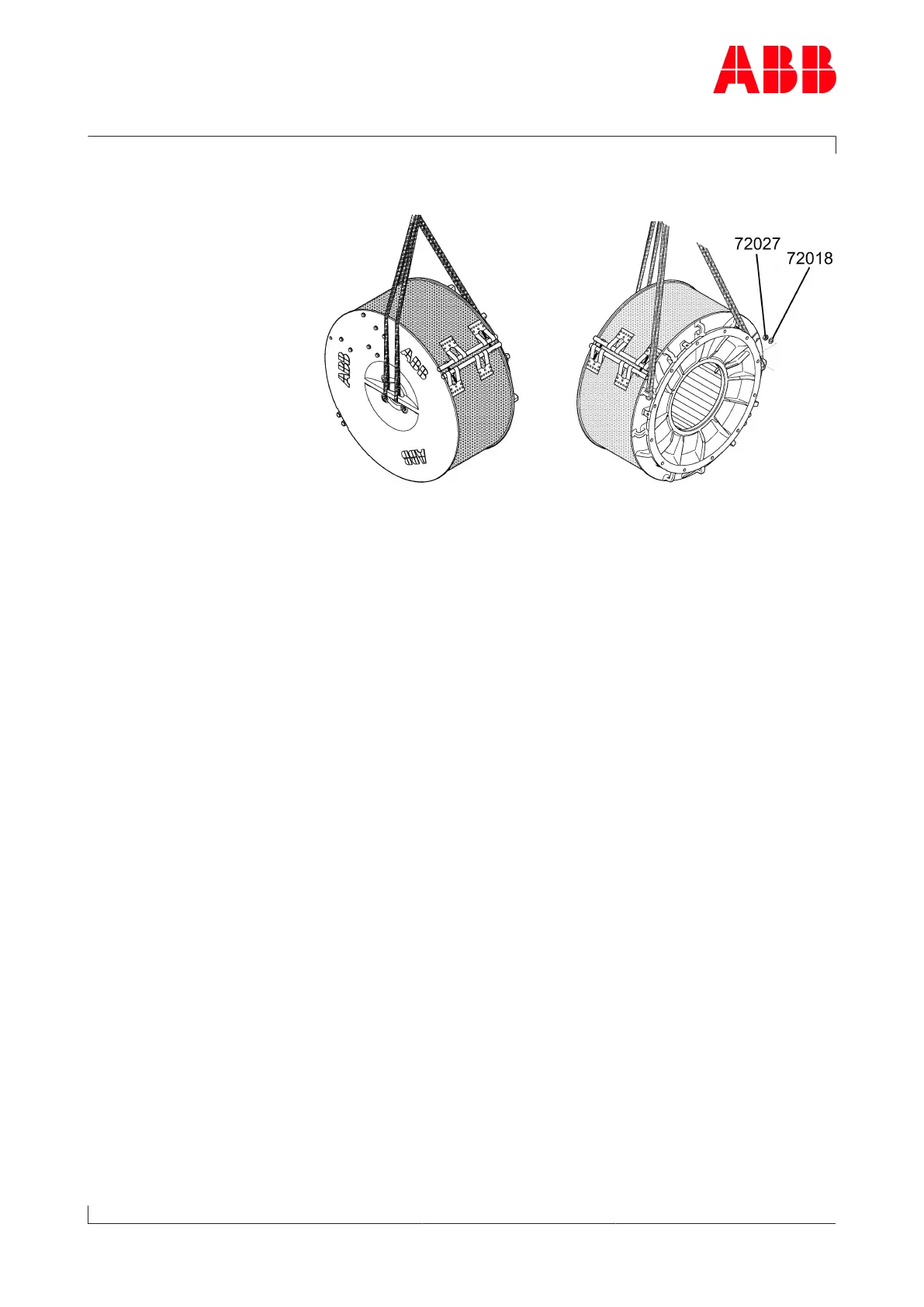

Removing filter silencer
u Remove insulation where necessary.
u Pass lifting gear through rib on filter silencer.
u Pass lifting gear through lugs on back.
u Unscrew nuts (72027) and remove them together with washers
(72018).
u Remove filter silencer and it set down to one side.
Installing the filter silen-
cer
u Install filter silencer in reverse order.
Page 86 / 125
