Operation Manual / TPL67-C.. - TPL71-C..
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2020 . All rights reserved. HZTL2488_EN Rev.G March 2020

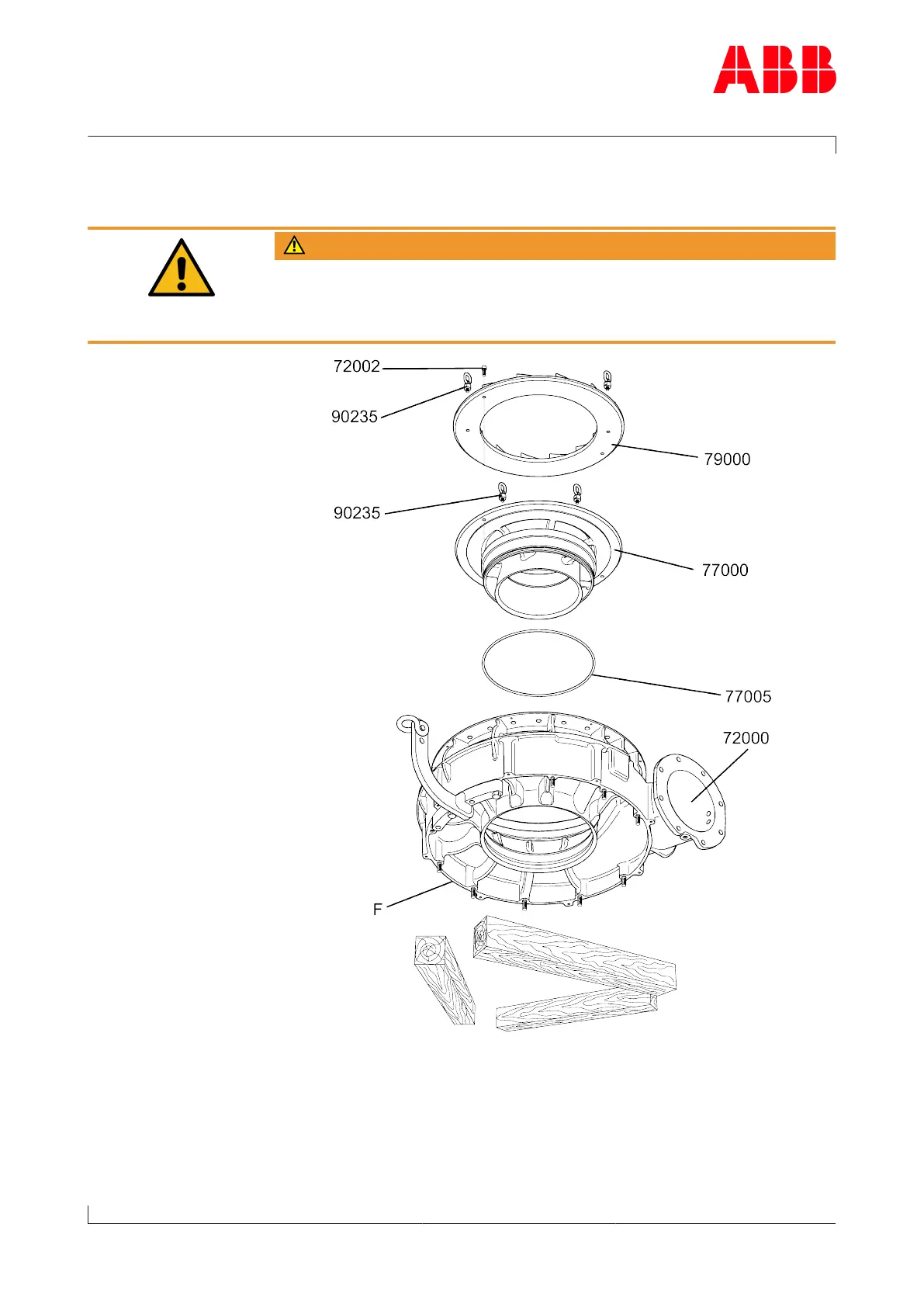

u Turn compressor casing (72000) together with wall insert and dif-
fuser and put them down with surface (F) on underlay.
WARNING
Make sure that the underlay does not slip.
u Allow compressor casing to rest only on surface (F).
u Check underlay and adjust if necessary.
u Remove screws (72002).
u Remove diffuser (79000) using swivel lifting eyes (90235).
u Remove wall insert (77000) using swivel lifting eyes (90235).
u Remove O-ring (77005) from wall insert.
Page 90 / 125
