Operation Manual / TPL67-C.. - TPL71-C..

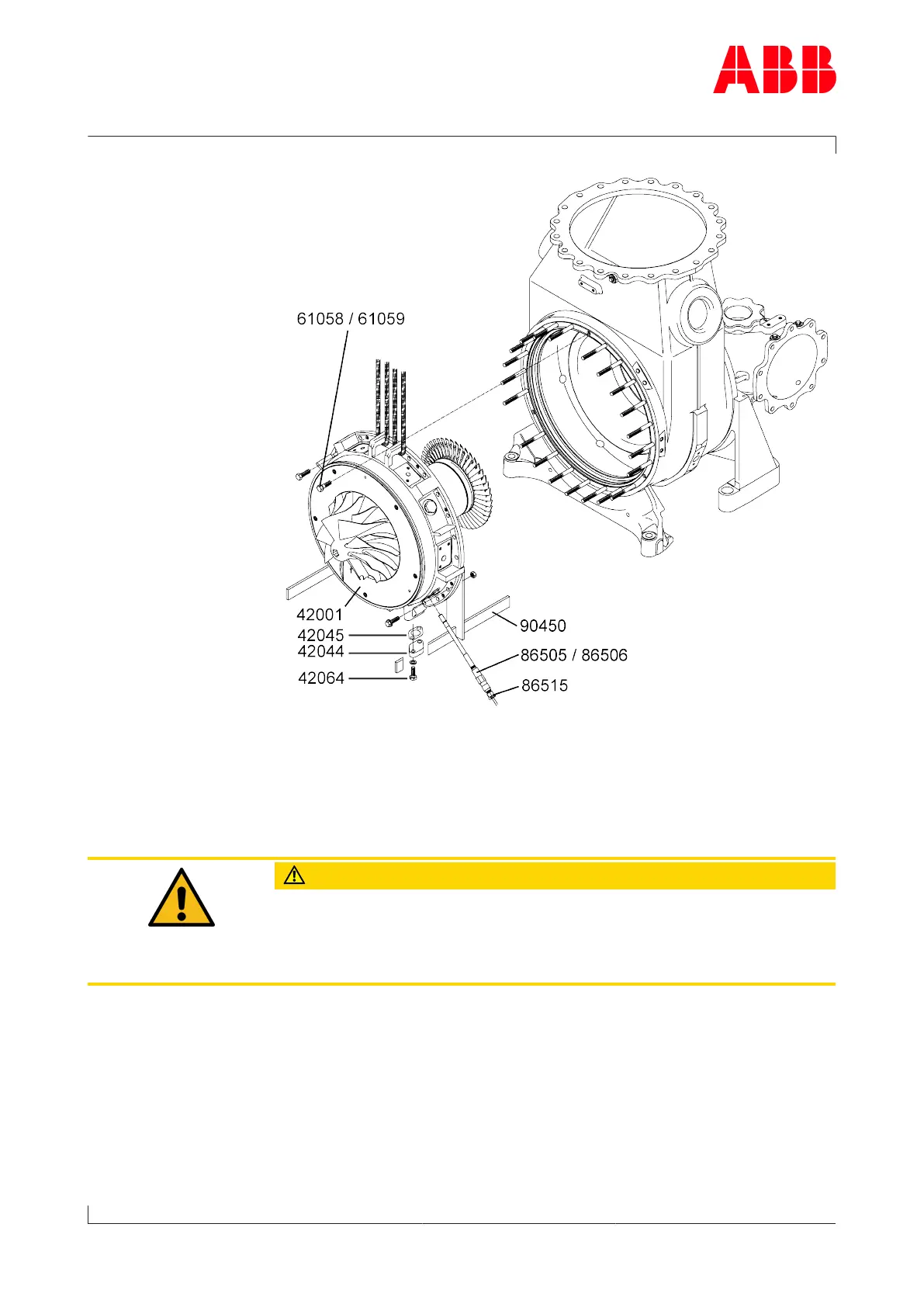

8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2020 . All rights reserved. HZTL2488_EN Rev.G March 2020
u Remove cover from oil connection.
u Fit flange(42044) with screws(42064) and new gasket(42045).
u Attach one lifting gear each to the two ribs of the bearing casing
provided for this purpose.
u Remove supports (90450) and carefully insert cartridge group.
CAUTION
If the rotor blades have insufficient or no clearance, the blades and cas-
ing could be damaged.
u Check that the blades do not rub on the turbine diffuser by rotating
the rotor.
u Uniformly tighten the three screws (61059) with Verbus Ripp® wash-
ers (61058).
u Remove the lifting gear.
u Screw in the speed sensor (86505) together with the O-ring (86506)
and plug in the cable connector (86515).
Page 96 / 125
