9.6 Removing the cartridge group
u Mark the casing position for assembly.

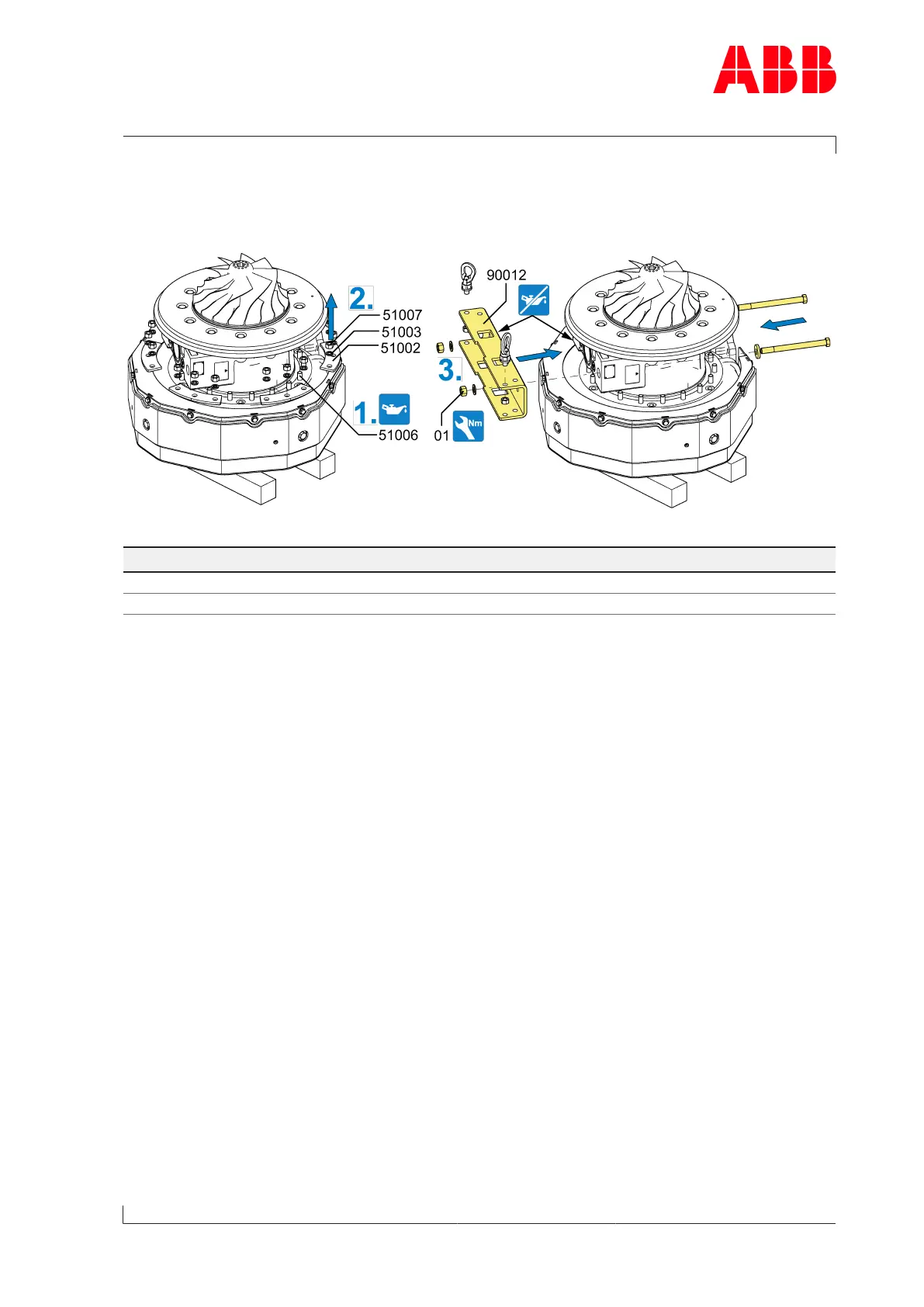

Fig.53: Removing cartridge group 1
Product Position Tightening torque [Nm]
A150 01 150
A155 01 150
Table42: Tightening torque (90012-01)
1. Treat threads of studs(51006) with penetrating oil and leave to take effect.
2. Loosen nuts(51007) and remove Verbus Ripp® washers(51003) together with the fasten-
ing strips(51002).
3. Fit the cross-piece of the service support(90012). Observe the tightening torque.
