Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
14 Taking out of operation at short notice / 14.5 Cover plate drawing
© Copyright 2020 ABB. All rights reserved.
HZTL4032_EN
Rev.P
March 2020

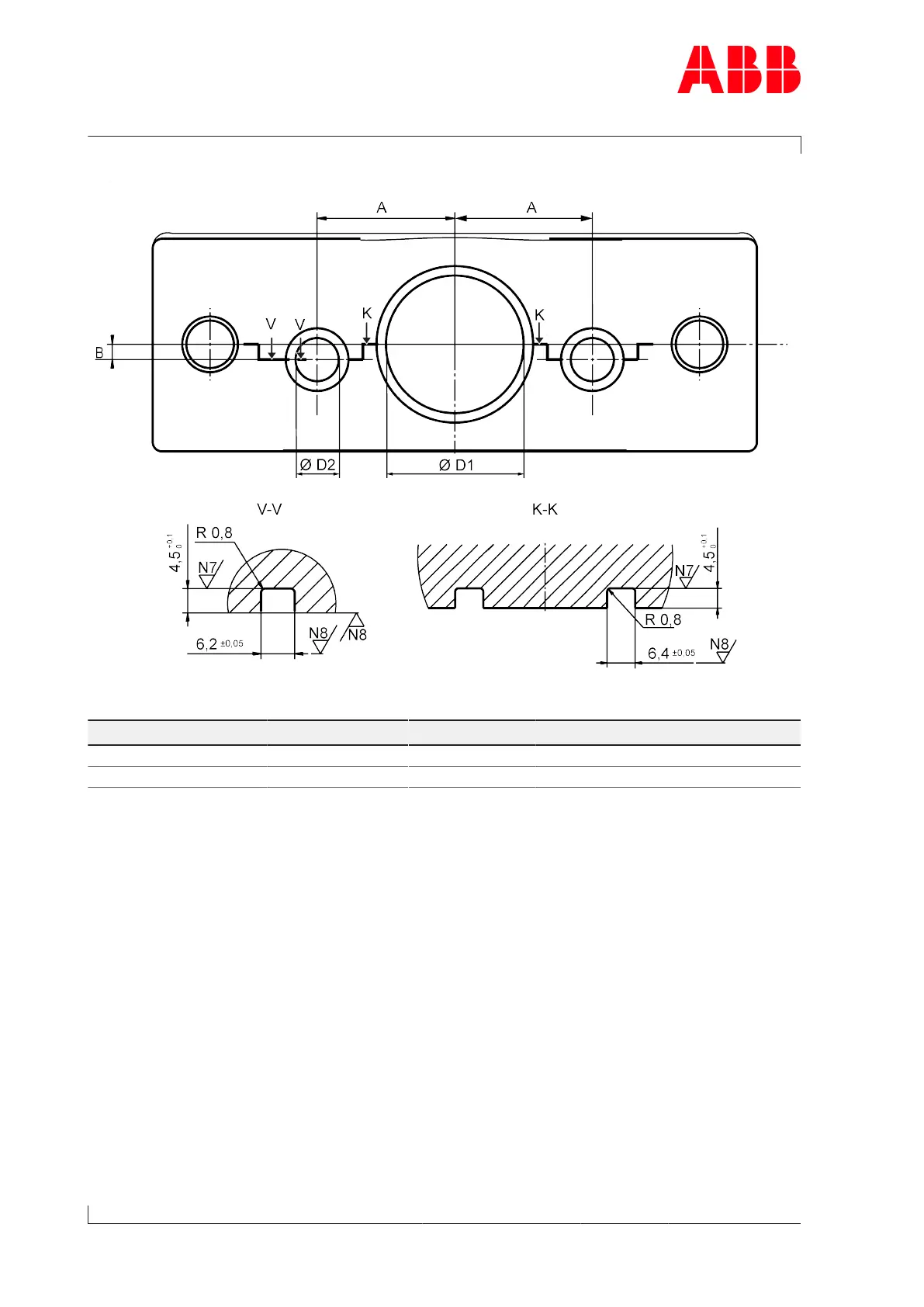

Fig.124: Dimensions for cover plate
Product
A
B
D1
D2± 0.1
A150
90
10
90± 0.2
28.2
A155
107
12
111± 0.1
37.2
Table74: Cover plate dimensions [mm]
Page 154 / 171
