9.19 Installing the gas outlet flange

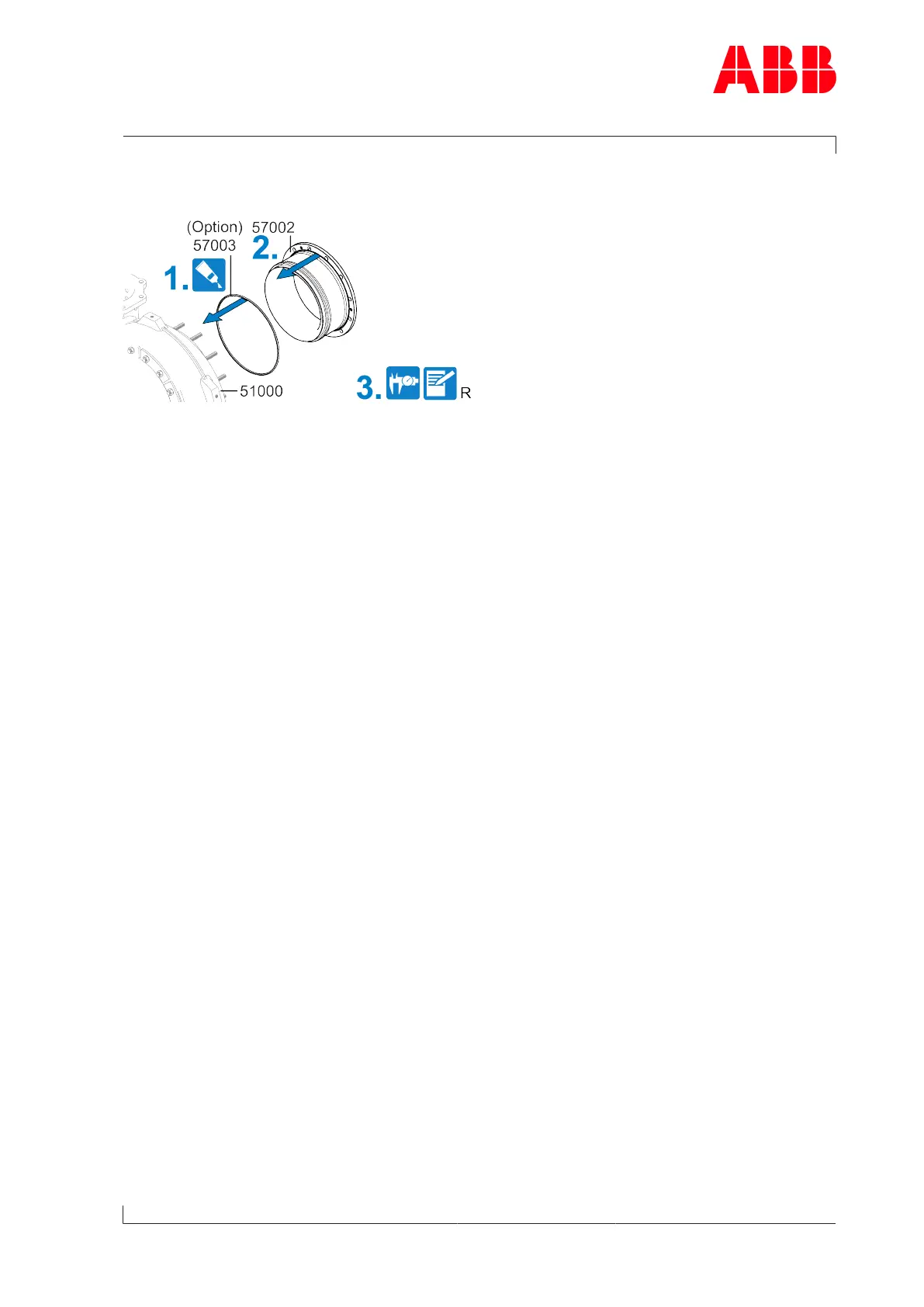

Fig.63: Installing the gas outlet flange
1. If present: Insert the metal C-ring(57003) into the turbine casing(51000) and secure with
high-vacuum grease.
2. Install the gas outlet flange(57002) in the turbine casing.
3. Measure radial clearance(R) (see chapter Radial clearances N and R).
