ABB HT605521 - Table 61: Spare Parts - Bearing Casing, Oil Cooled

Operation Manual / A130-M.. - A145-M..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4031_EN Rev.N March 2021

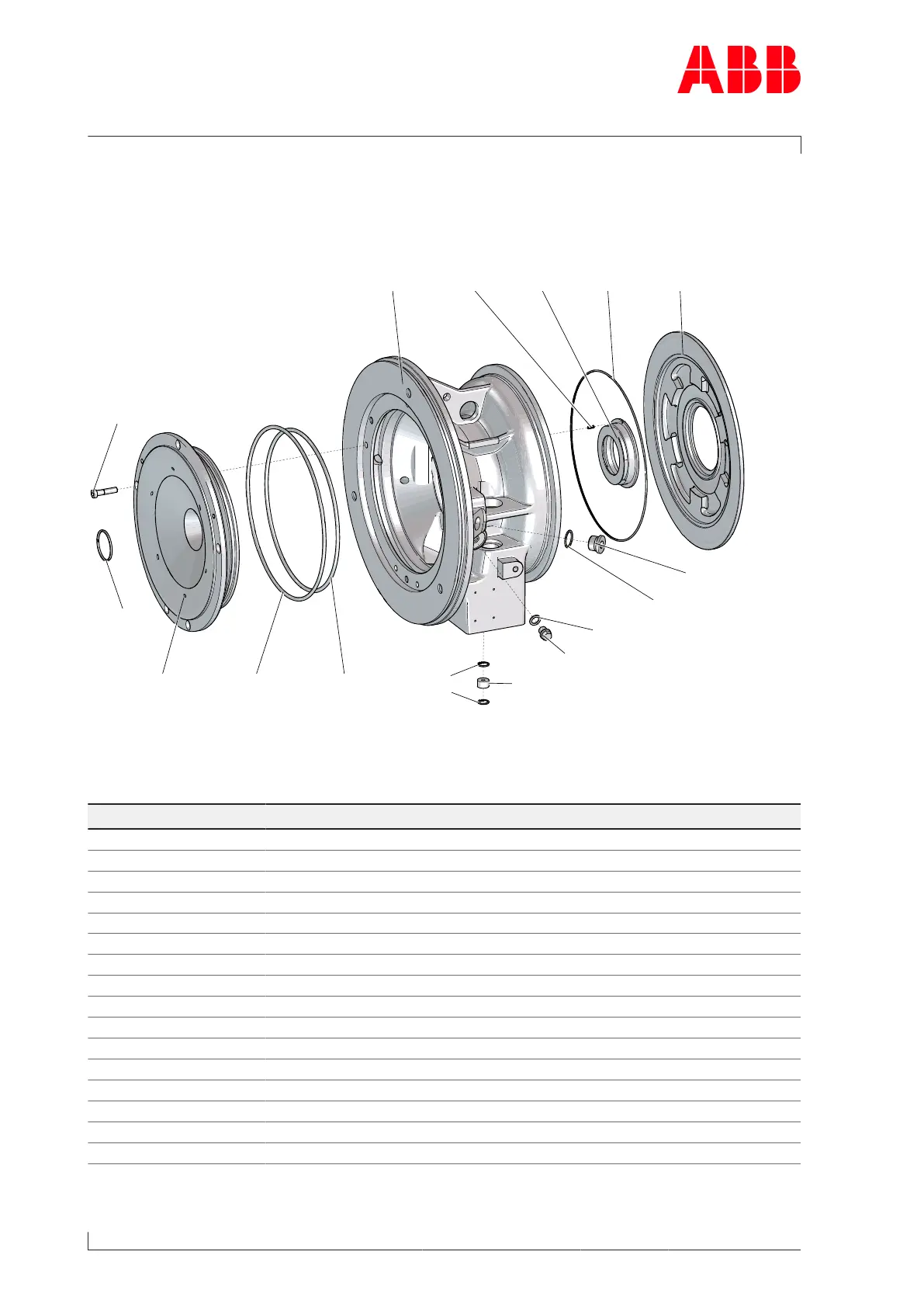

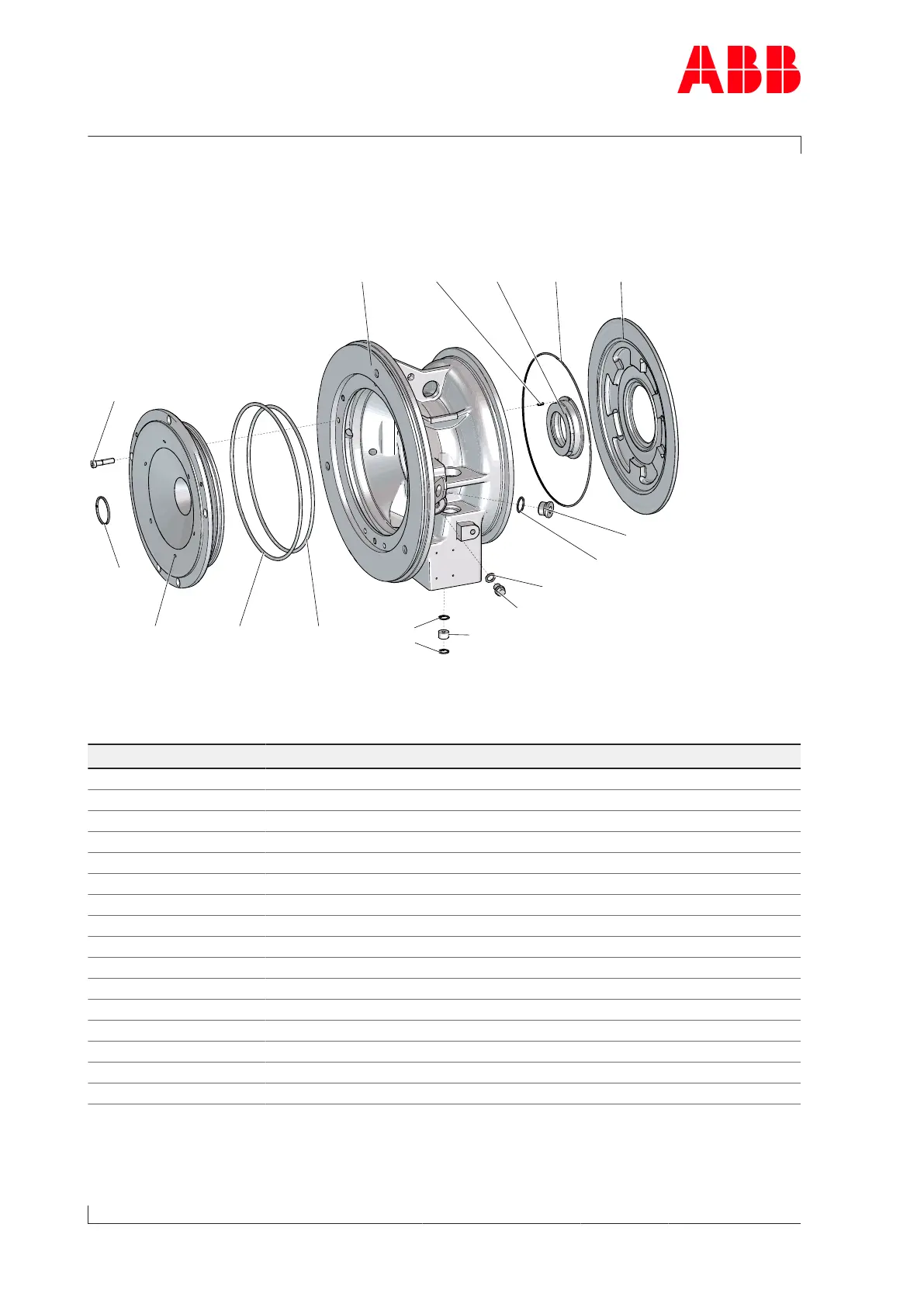

Bearing casing, oil cooled
42401** 4240042005**42006**
421964219742305*
42001
42008*
42306*42301
42194(p)
42302* **
42047(p)
42189(p)
42188(p)
(p) = pre-assembled
* = Available within the spare part set
** = if provided
HZTL443373 Mod. E
Part no. Designation
42001 Bearing casing
42005** Sealing bush
42006** Spring-type pin
42008* Socket screw
42047(p) Screw plug
42188(p) Hexagon-head screw
42189(p) Gasket
42194(p) Gasket
42196 Orifice oil inlet
42197 Safety ring
42301 Bearing cover
42302* ** Piston ring
42305* O-ring
42306* O-ring
42400 Heat shield
42401** Metal C-ring
Table61: Spare parts - Bearing casing, oil cooled
Page 142 / 149
