ABB HT605521 - Fig. 64: Fitting the Insulation; Fitting the Insulation of the Turbine Casing

Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.20 Fitting the insulation of the turbine
casing
© Copyright 2021 ABB. All rights reserved. HZTL4031_EN Rev.N March 2021
9.20 Fitting the insulation of the turbine casing

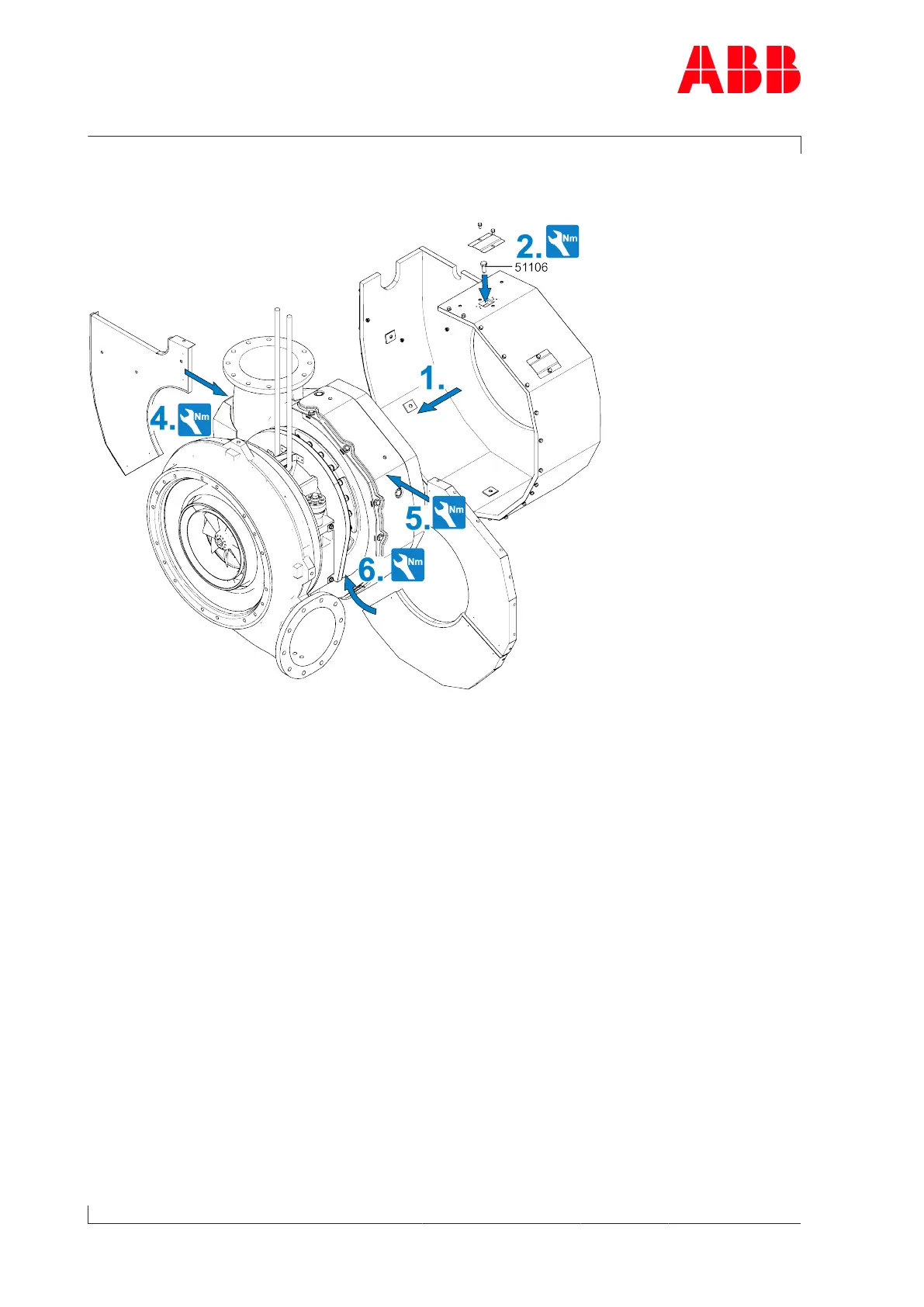

Fig.64: Fitting the insulation
u Fit the insulation according to the illustration. Observe tightening torques (see Table of
tightening torques →119).
