Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.17
Fitting the insulation
© Copyright 2020 ABB. All rights reserved.
HZTL4032_EN
Rev.P
March 2020
9.17
Fitting the insulation

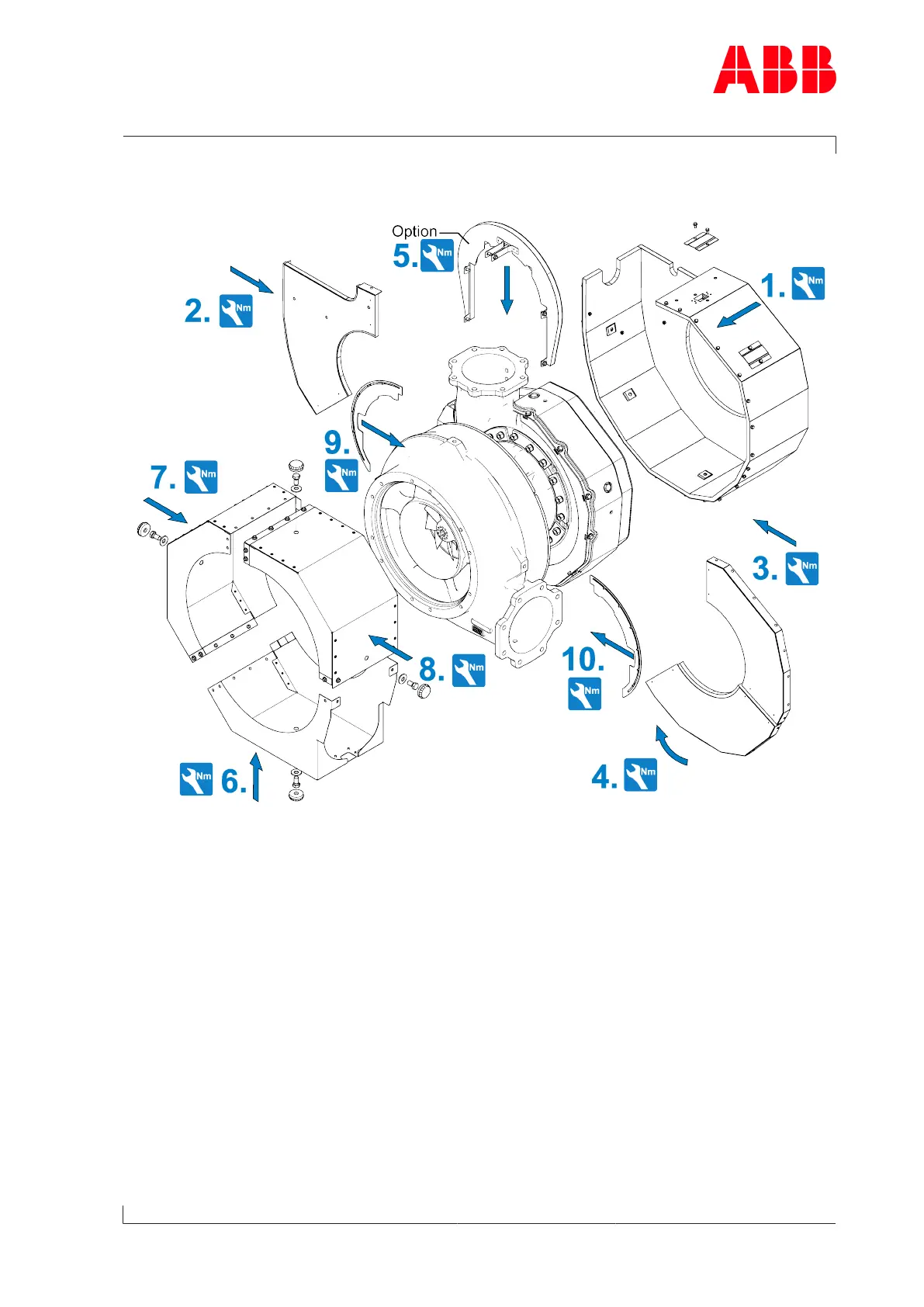

Fig.69: Fitting the insulation
u
Fit the insulation according to the illustration. Observe tightening torques (see
