Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
12 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 12.1 Disassembly
© Copyright 2020 ABB. All rights reserved.
HZTL4032_EN
Rev.P
March 2020

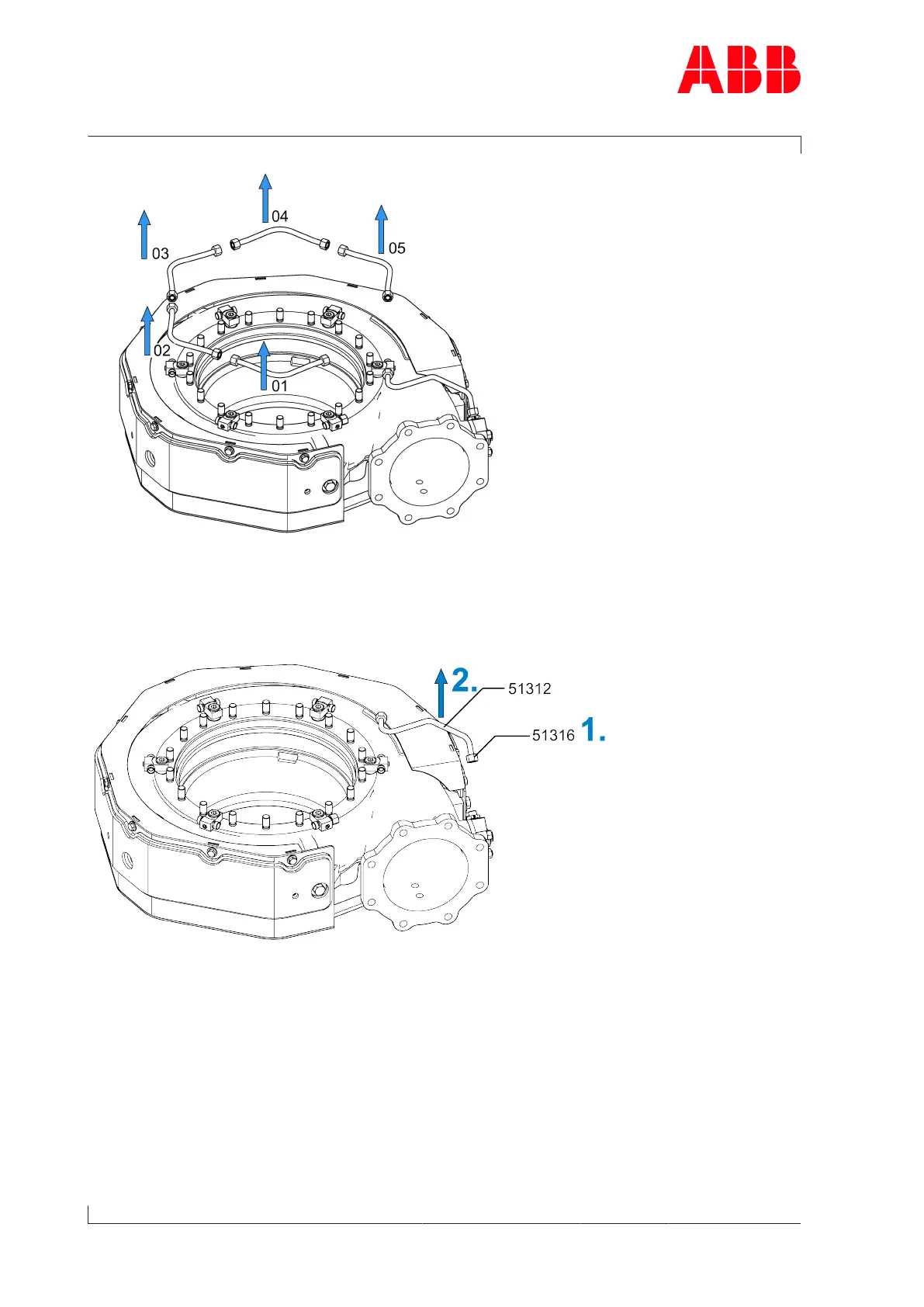

Fig.112: Disassembly of the elbows
u
Remove the elbows (51311) from the connecting pieces (51313) in the specified order (01,
02, 03, 04, 05).
Fig.113: Pipe disassembly
1.
Undo union nuts (51316) of pipe (51312).
2.
Remove pipe.
Page 144 / 171
