Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
10 Dismantling and fitting, cartridge concept / 10.1 Removing air in-
lets
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
10 Dismantling and fitting, cartridge
concept
10.1 Removing air inlets

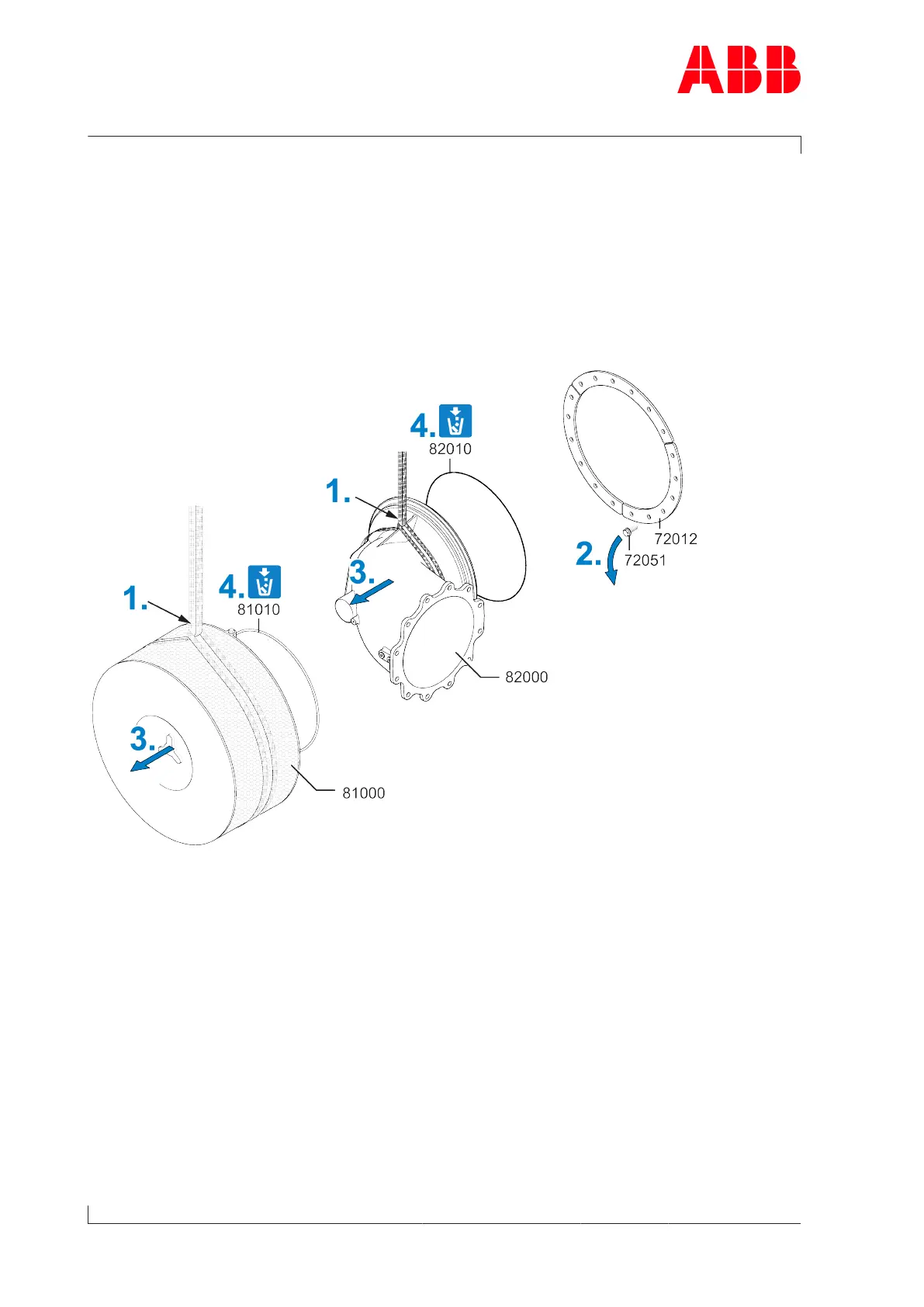

Fig.77: Removing the air inlets
1. Attach lifting gear to the filter silencer (81000) or air suction branch (82000).
2. Loosen the hexagon-head screws(72051) and remove them with fastening strips(72012).
3. Remove the filter silencer(81000) or air suction branch(82000).
4. Remove and dispose of the O-ring(81010 or 82010).
