ABB HT613166 - Fig. 66: Fitting the Insulation

Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.21 Installing the gas outlet casing
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
Fitting the insulation

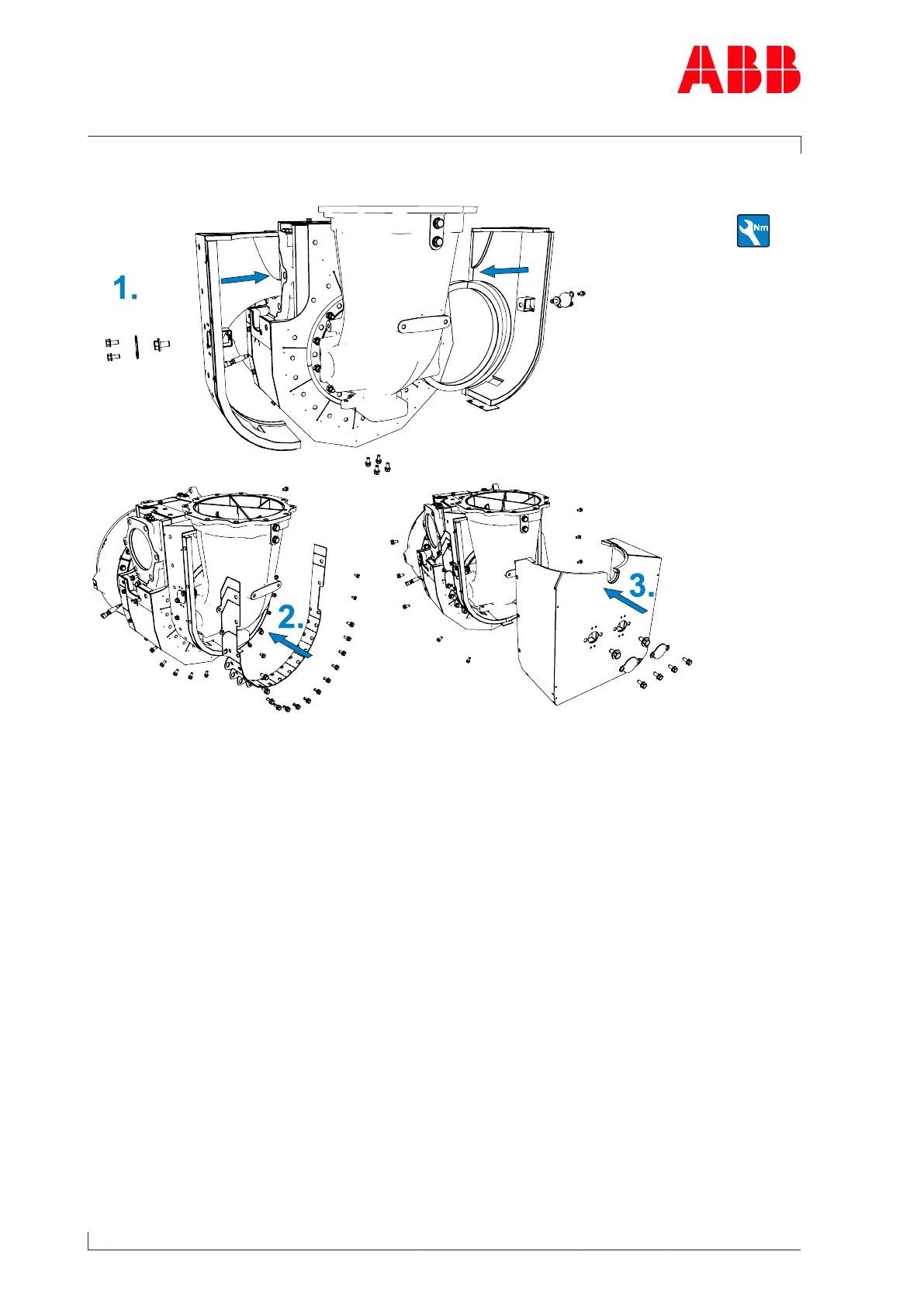

Fig.66: Fitting the insulation
u Fit the insulation according to the illustration. Observe tightening torques (see Table of
tightening torques →119).
See also
2 Table of tightening torques [}119]
Page 118 / 149
