10.5 Cover plate drawing
The cover plate is not included in the Turbo Systems scope of delivery and must be manufac-
tured by the operating company according to the following drawing.
Material: General structural steel, in accordance with DINEN10025-2.

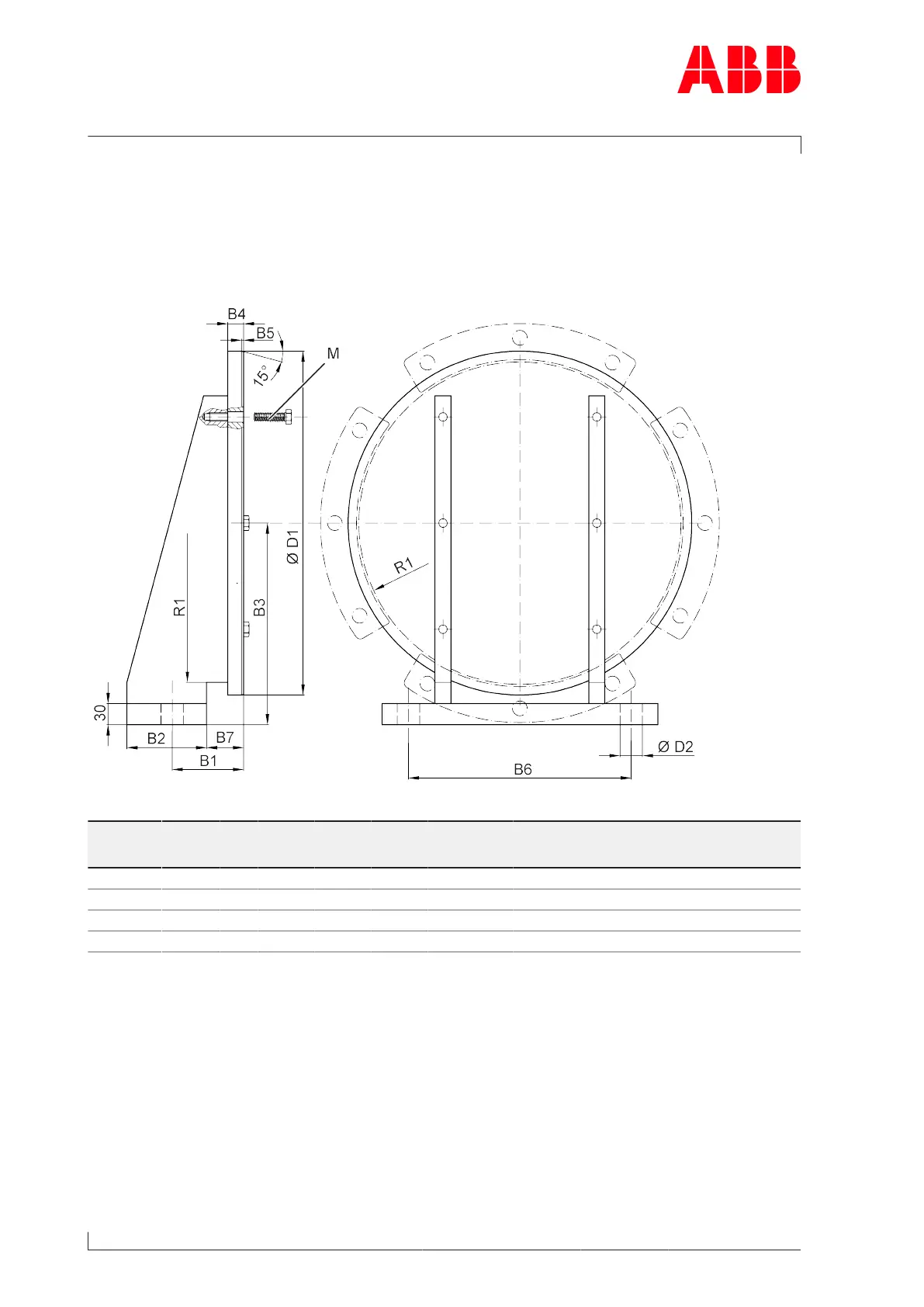

Fig.70: Cover plate drawing
Product B1
± 0.5
B2 B3 B4
± 0.2
B5 B6 B7 ØD1
± 0.2
ØD2 R1 M
A130 65.7 60 130 11.7 1.4 150 35.7 227.7 17 ≤105 M8
A135 79.6 80 155 14.2 1.6 180 39.6 271.7 21 ≤125 M8
A140 98.2 102 190 17.2 2.0 220 48.2 332.5 25 ≤153 M10
A145 116.8 120 226 20.5 2.4 260 56.8 395.9 31 ≤182 M10
Table49: Cover plate dimensions [mm]
