ABB HT613166 - Fig. 25: Attaching the Support

Operation Manual / A130-M.. - A145-M..
3 Removing and Installing / 3.3 Installing the turbocharger
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
3.3.7 Attaching the support

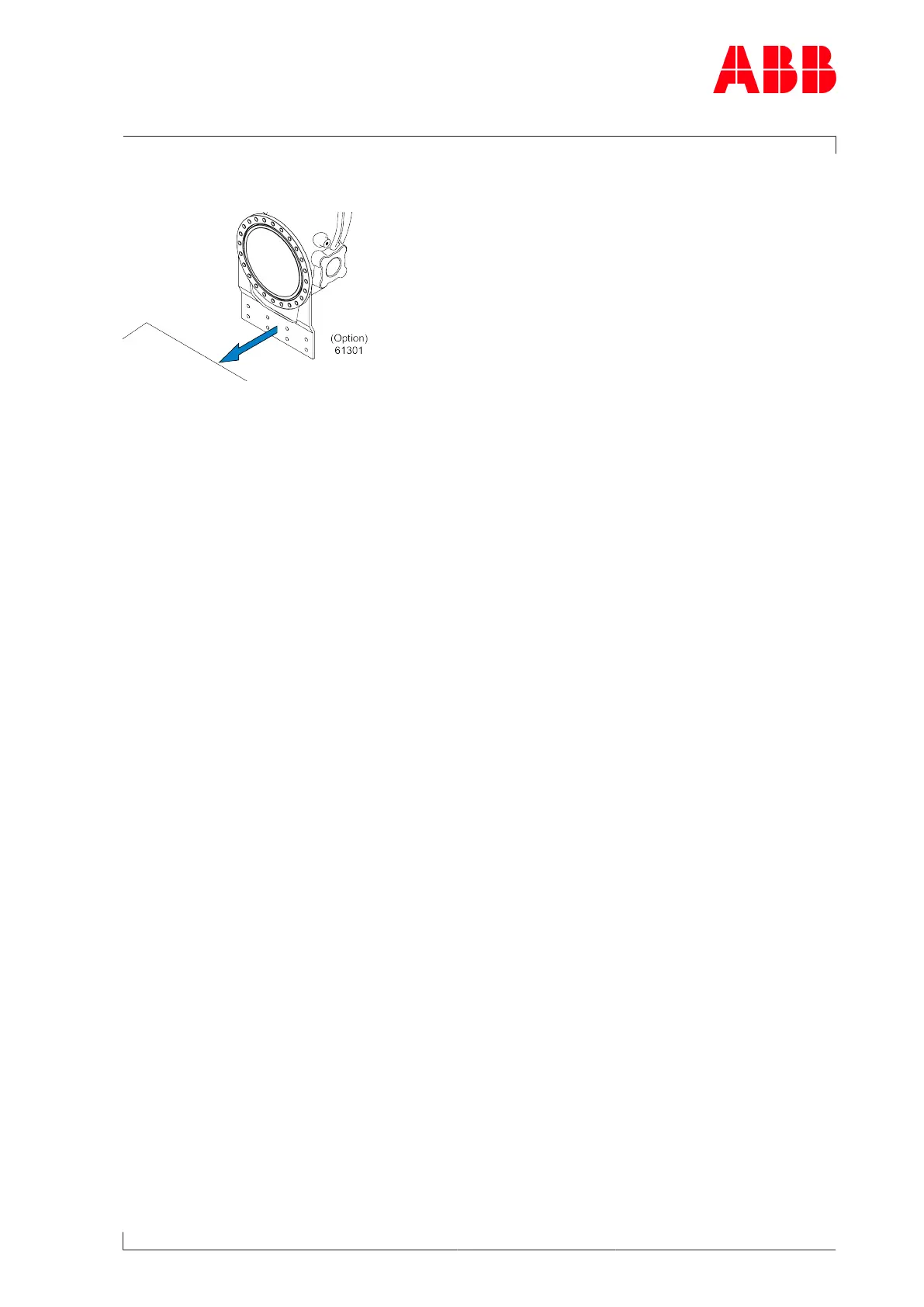

Fig.25: Attaching the support
u If present: Attach support (61301) to engine support or to a connecting piece.
Page 43 / 149
