ABB REF 54 Series User Manual

1MRS 750500-MUM
)HHGHU7HUPLQDODQG0DFKLQH7HUPLQDO
Operator’s Manual
5(BB
15
 $FNQRZOHGJHPHQWDQGUHVHWWLQJRI/('LQGLFDWRUVLQGLFDWLRQ
PHVVDJHVRXWSXWVDQGUHJLVWHUV
LED indicators, indication messages, outputs and registers can be acknowledged
and reset regardless of the HMI operation level, view or menu.
• LED indicators, indication messages and outputs of protection functions are
acknowledged by pressing [C] and [E] simultaneously for at least 2 seconds. A
message in the assisting window confirms the acknowledgement.
• LED indicators, indication messages, outputs of functions and registers,
including the disturbance recorder, are acknowledged by pressing [C] and [E]
simultaneously for at least 5 seconds. A message in the assisting window
confirms the acknowledgement.

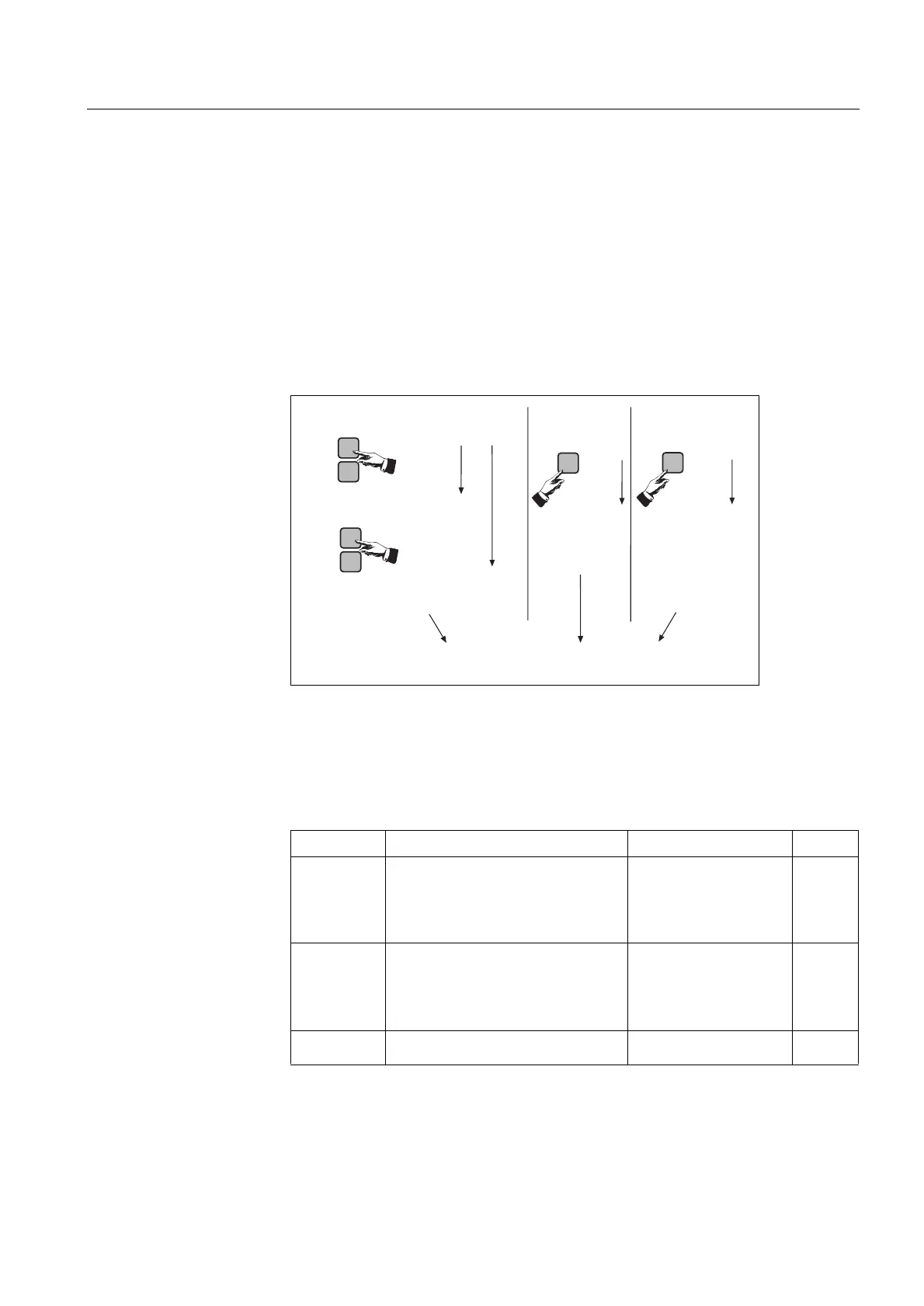

)LJ $FNQRZOHGJHPHQWDQGU HVHWWLQJ
 3DVVZRUGV
The HMI includes three passwords with different uses.
C
C
C
E
C
E
kuitsequ
View dependent
reset
LEDs and non-
reset indications
2 sec.
2 sec.
2 sec.
Clears messages
according to view:
MIMIC, MEAS,
EVENT, ALARM,
MAIN MENU
Resets LEDs
and indications
Resets outputs, LEDs
and indications
Resets registers, outputs, LEDs,
indications and waveform memory
Reset/Clear done
5 sec.
7DEOH 3DVVZRUGV
3DVVZRUG $SSOLFDWLRQ 6WDWXV 'HIDXOW
Password 1
(MIMIC)
Local/remote/disabled/logic selection
with the [R\L] button
• The password is reset after a preset
time-out and must be re-entered
before using the [R\L] button again
Enabled/disabled
(can be taken out of use)
100000
Password 2
(parameter)
Entering the parameter setting mode
at technical level
• The password applies as long as the
user stays at technical level or until
the backlight time-out elapses
Always enabled 200000
Password 3
(HMI level)
Entering the technical level
from MIMIC view to MAIN MENU)
Enabled/disabled
(can be taken out of use)
300000
