The user can also adjust the contrast by setting the “Contrast” parameter in MAIN
MENU/Configuration/MIMIC [17].
Provided the user stores the selected contrast tuning value in the non-volatile
memory (refer to section “Saving parameters” on page 23), the contrast is
automatically adjusted according to the set value after power cycling of the terminal.
 6HOHFWLQJODQJXDJH

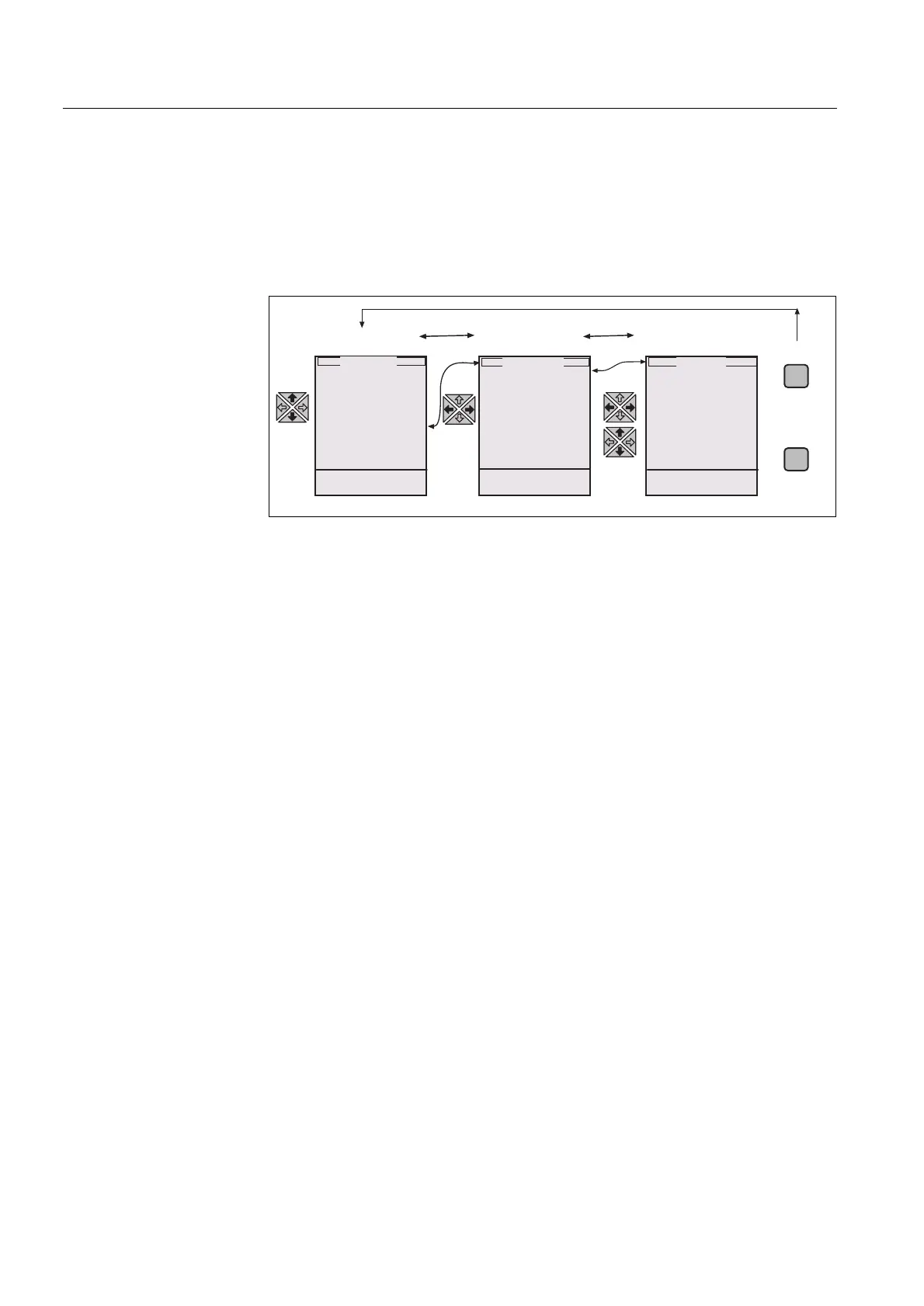

)LJ 6HOHFWLRQRIODQJXDJH
7RFKDQJHWKHGLVSOD\ODQJXDJH
1. In the MIMIC view at user level, press [E] for 2 s and enter the password to
access the technical level
2. Press [
↑] or [↓] to select Configuration (last item) in the MAIN MENU
3. Press [
→] to move to the Configuration menu
4. The cursor is at the first menu item, Languages, so you can move to the
Language menu by pressing [
→]
5. Press [
↓] to move the cursor to the desired language
6. Confirm the selection by pressing [E]
• After confirmation, the cursor automatically returns to the MAIN MENU
 0DLQZLQGRZ
The main window informs the user via different views and menus, for example:
•At user level
• MIMIC configuration, CB status, disconnector status, etc.
• events
• measurements
•alarms
• At technical level
• parameter settings
