4 Installing the turbocharger
4.1 Fastening RR turbocharger to exhaust gas pipes
RR turbochargers are fastened directly to the exhaust gas pipe of the engine. The turbochar-
ger is fastened to the gas inlet flange or gas outlet flange of the turbine casing (see follow-
ing illustration).
¡ Use heat resistant screws the strength of which is sufficient to withstand the temperat-
ures that can occur (R
p02
> 590 N/mm
2
, for example Nimonic 90).
¡ Apply heat resistant grease to the threads.

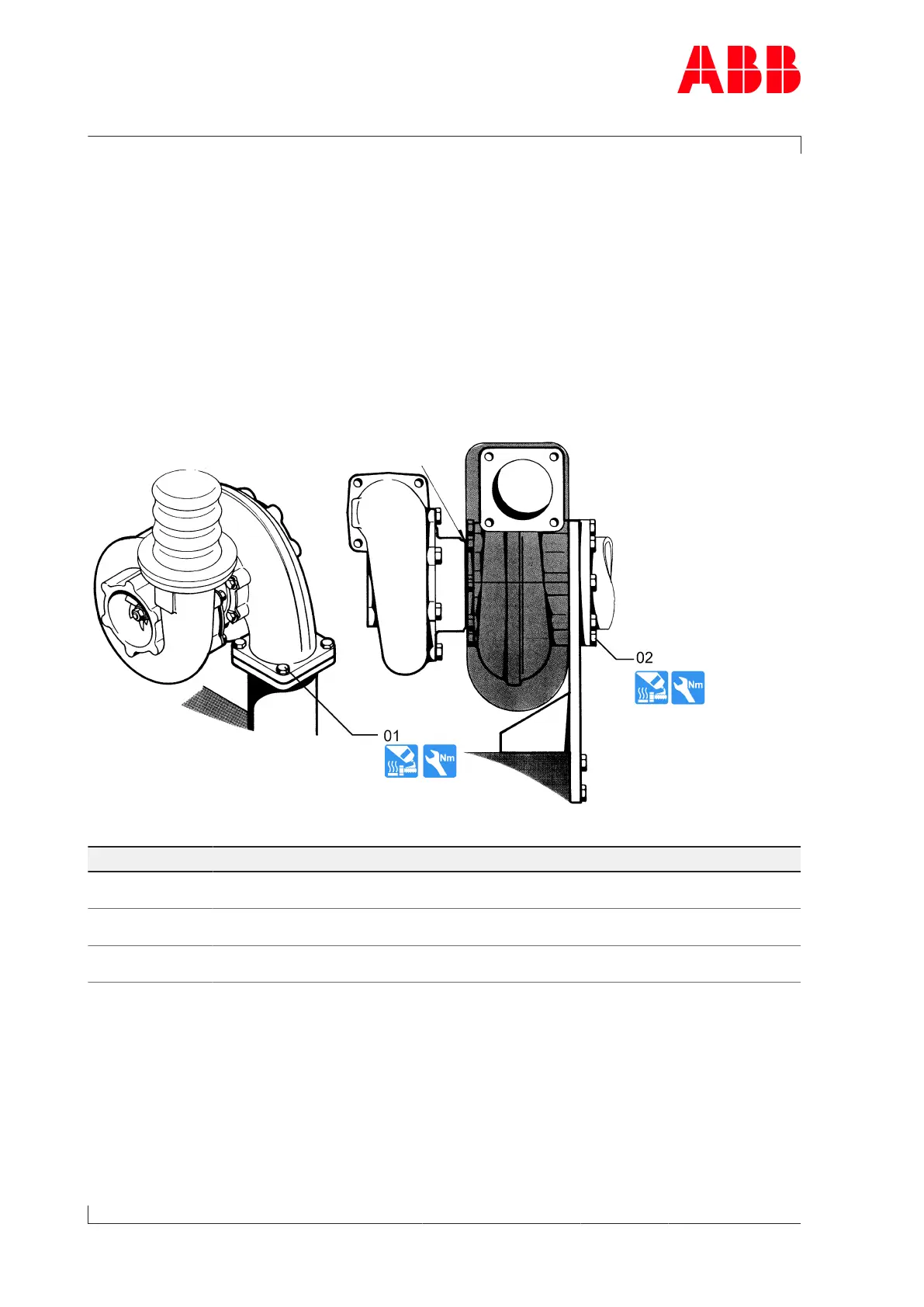

Fig.2: Fastening the RR turbocharger to the exhaust gas pipe
Product Fastening to gas inlet flange (01) Fastening to gas outlet flange (02)
RR131, RR151,
RR153
4 x M16
M
A
= 160 Nm ±35 Nm
8 x M10
M
A
= 37.5 Nm ±8.5 Nm
RR181 *) Not admissible 12 x M10
M
A
= 37.5 Nm ±8.5 Nm
RR221 *) Not admissible 12 x M12
M
A
= 65 Nm ±15 Nm
Table5: Fastening the RR turbocharger to the exhaust gas pipe
*) Has to be fastened additionally to a bracket in accordance with the following chapter.
u Fit all pipes in accordance with the enginebuilder's instructions.
