V2 S500 Hardware 1-21 System Data S500 / Issued: 01.2007
Terminal type: Spring terminal
Number of cores per terminal Conductor type Cross section
1 solid 0.08 mm² to 1.5 mm²
1 flexible 0.08 mm² to 1.5 mm²
1 with wire end ferrule (without plastic
sleeve)
flexible 0.25 mm² to 1.5 mm²
1 with wire end ferrule (with plastic
sleeve)
flexible 0.25 mm² to 0.5 mm²
1 (TWIN wire end ferrule) flexible 0.5 mm²
2 (with the same cross section) solid 0.08 mm² to 0.5 mm²
2 (with the same cross section) flexible 0.08 mm² to 0.75 mm²
2 (with the same cross section) in
wire end ferrule, without plastic sleeve
flexible 0.25 mm² to 0.34 mm²

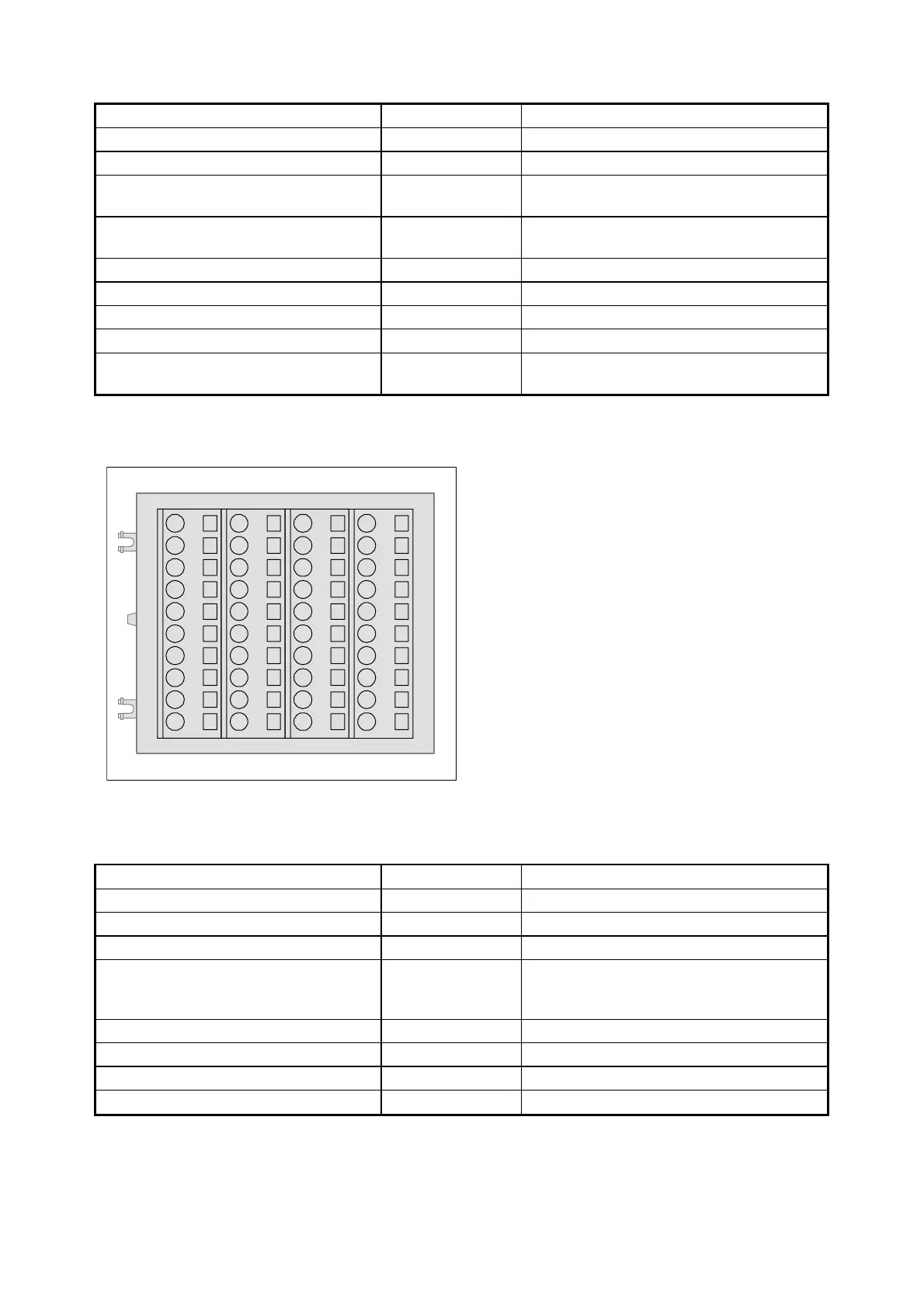

Terminals at the Terminal Units (I/O, FBP)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
Figure: Terminals at the Terminal Units (I/O, FBP)
Terminal type:
Screw-type terminal
Number of cores per terminal Conductor type Cross section
1 solid 0.08 mm² to 2.5 mm²
1 flexible 0.08 mm² to 2.5 mm²
1 with wire end ferrule flexible 0.25 mm² to 1.5 mm²
TWIN wire end ferrule flexible 2 x 0.25 mm² or 2 x 0,5 mm² or 2 x 0,75
mm², with square cross-section of the
wire-end ferrule also 2 x 1.0 mm²
2 solid not intended
2 flexible not intended
