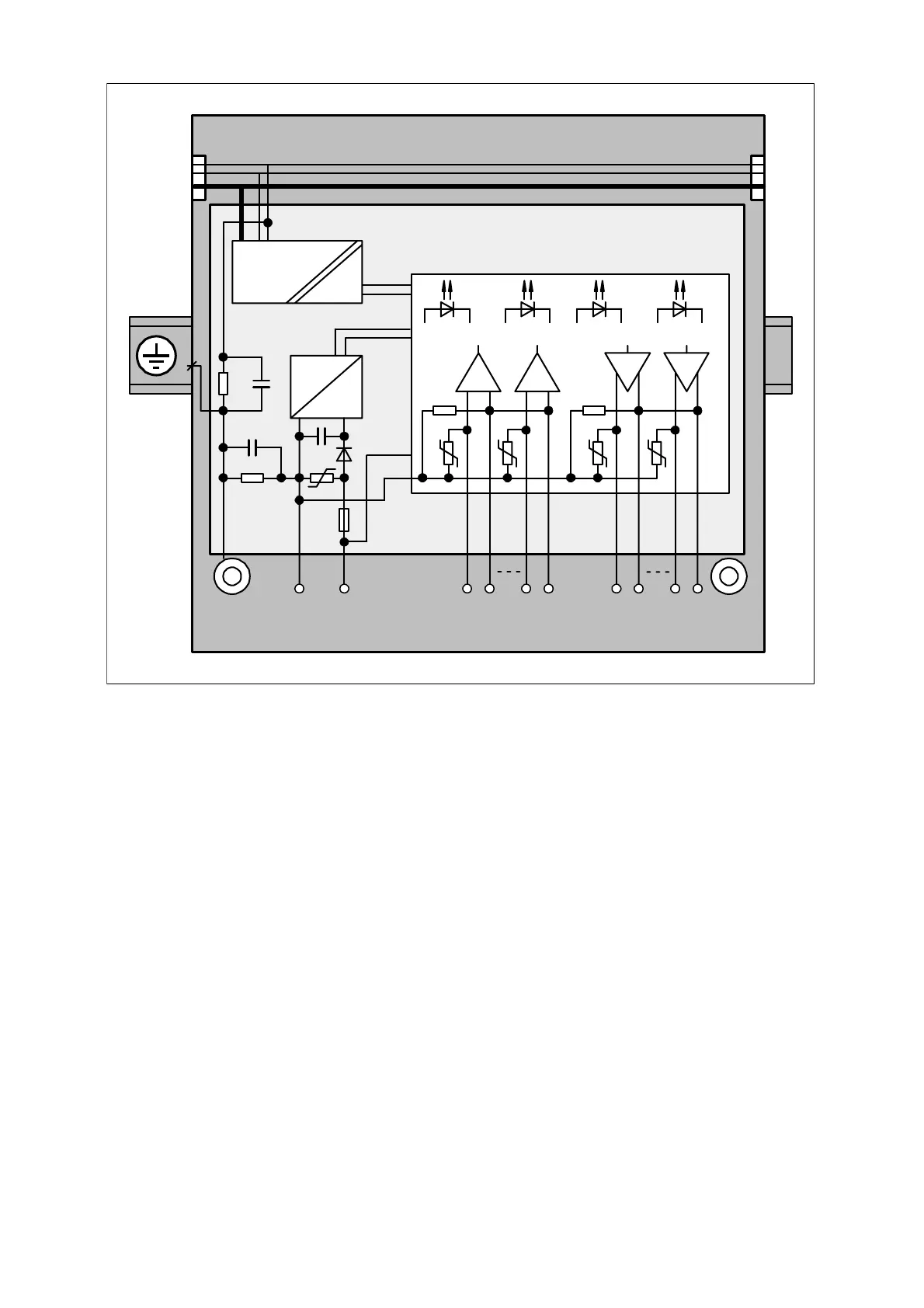

Block diagram of the analog I/O modules, earthing concept
Power
AX522
I/O Terminal Unit TU515/TU516
ZP
supply
DIN
rail
I/O-Bus
UP CH-ERRx
0V
UP
+24V
I+ I–
I/O-Bus
Analog I/O interface
Inputs Outputs
+– +–
I+ I– O+ O–
+– +–
O+ O–
PTC PTC
1M
1M
Figure: Block diagram of the analog I/O modules, earthing concept
