ABB TA0107L - Page 22

22
4,5,6,7
15,16
1
21
44
14
26
23
2
27
24,25
411
401
404,405
402
400
409,410
408
406
403
408
407
SCREW CONVEYOR
ADAPTER ASSEMBLY
204,205
201,202
203
200
600
413
412
34,36
41
40
38
28
39
35,37
414
415
OPTIONAL
BACKSTOP
ASSEMBLY
29
45
13
22
30,32
18
31,33
10
11,12
9
TORQUE-ARM
ASSEMBLY
100
106,108,
109,110
101
104
103
105
107
102
111,112
ADJUSTABLE
ADAPTER KIT

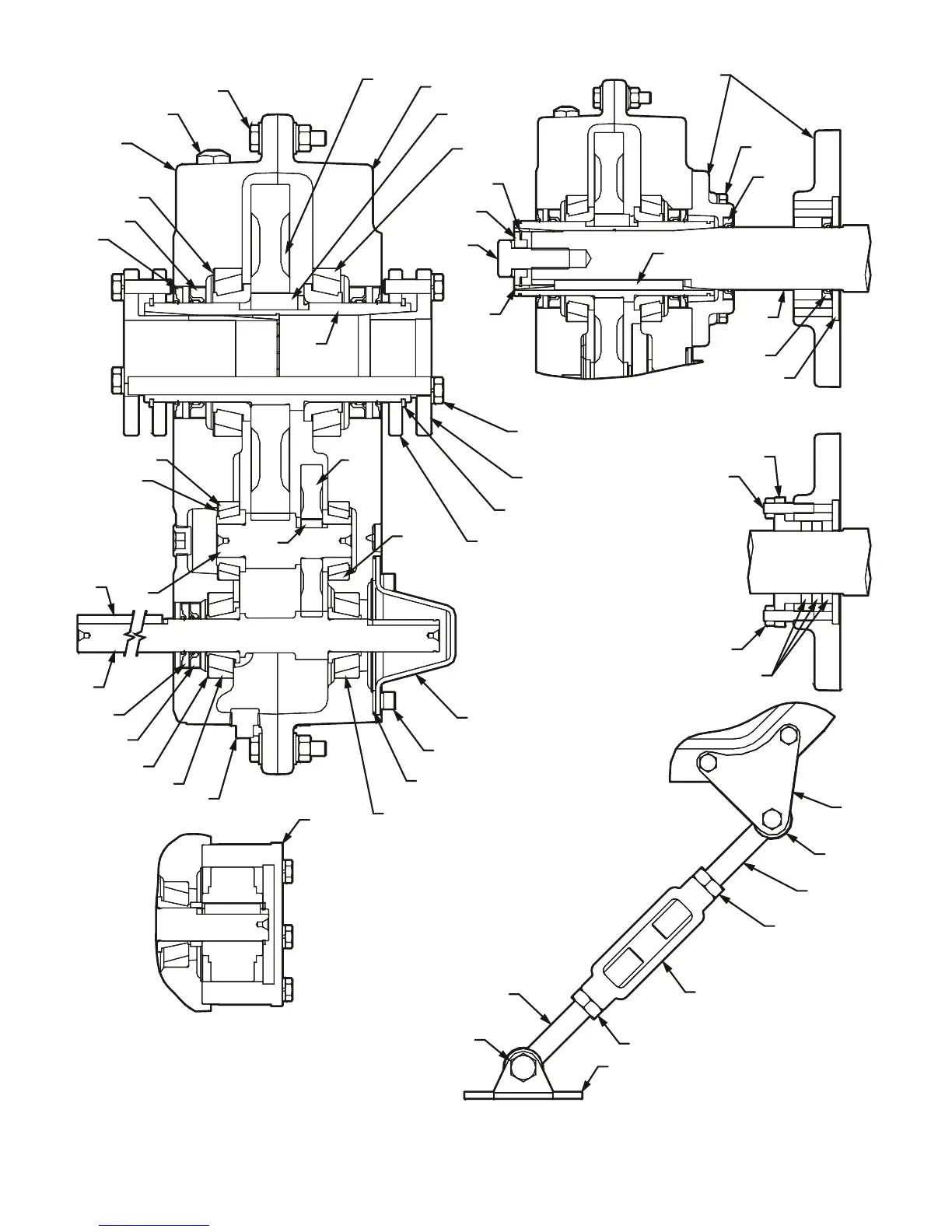

Figure 19 - Parts for TA0107L through TA12608H Taper Bushed Double Reduction Reducers
