ABB TPL67-C Series User Manual

Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8

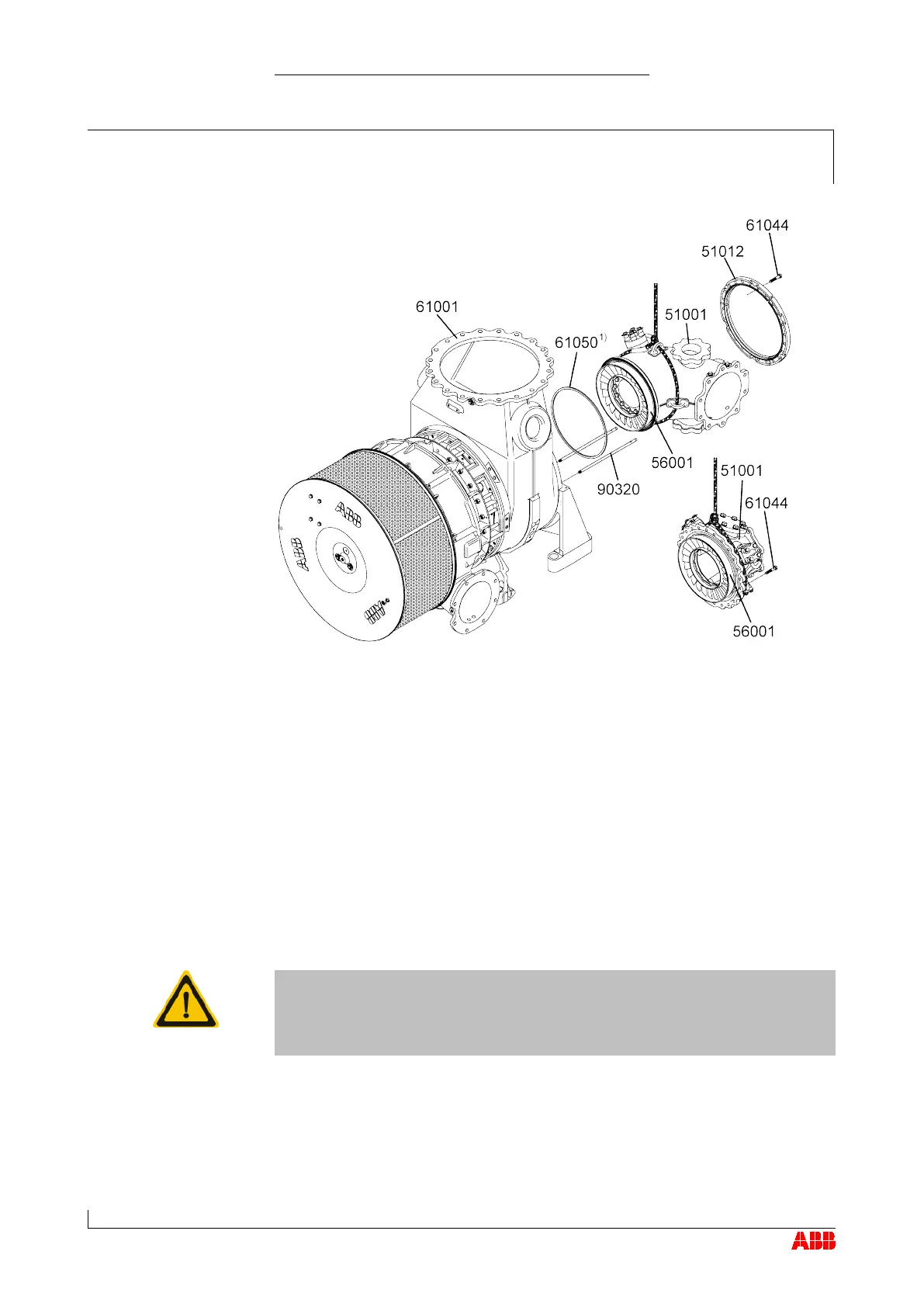

Dismantling and fitting nozzle ring at
turbine end
8.8
Page 109
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D
 Remove screws (61044) and one segment (51012) in the lower sec-
tion.
 Fit two guide studs (90320) as a safety measure.
 Loosen and remove remaining screws (61044) and segments (51012).
 Remove two screws (61044) in lower section.
 Fit two guide studs (90320) as a safety measure.
 Remove remaining screws (61044).
 Pull gas inlet casing complete with nozzle ring away from gas outlet
casing until nozzle ring can be lifted away.
 Remove gas inlet casing and put it down.
CAUTION
Use suitable underlays when putting down gas inlet casing.
 Remove spiral-wound gasket (61050).
Segment connection
Flange connection
1) If present
