Operation Manual / TPL67-C.. - TPL71-C..
Operation
4
Noise emissions
4.1
Page 40
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D

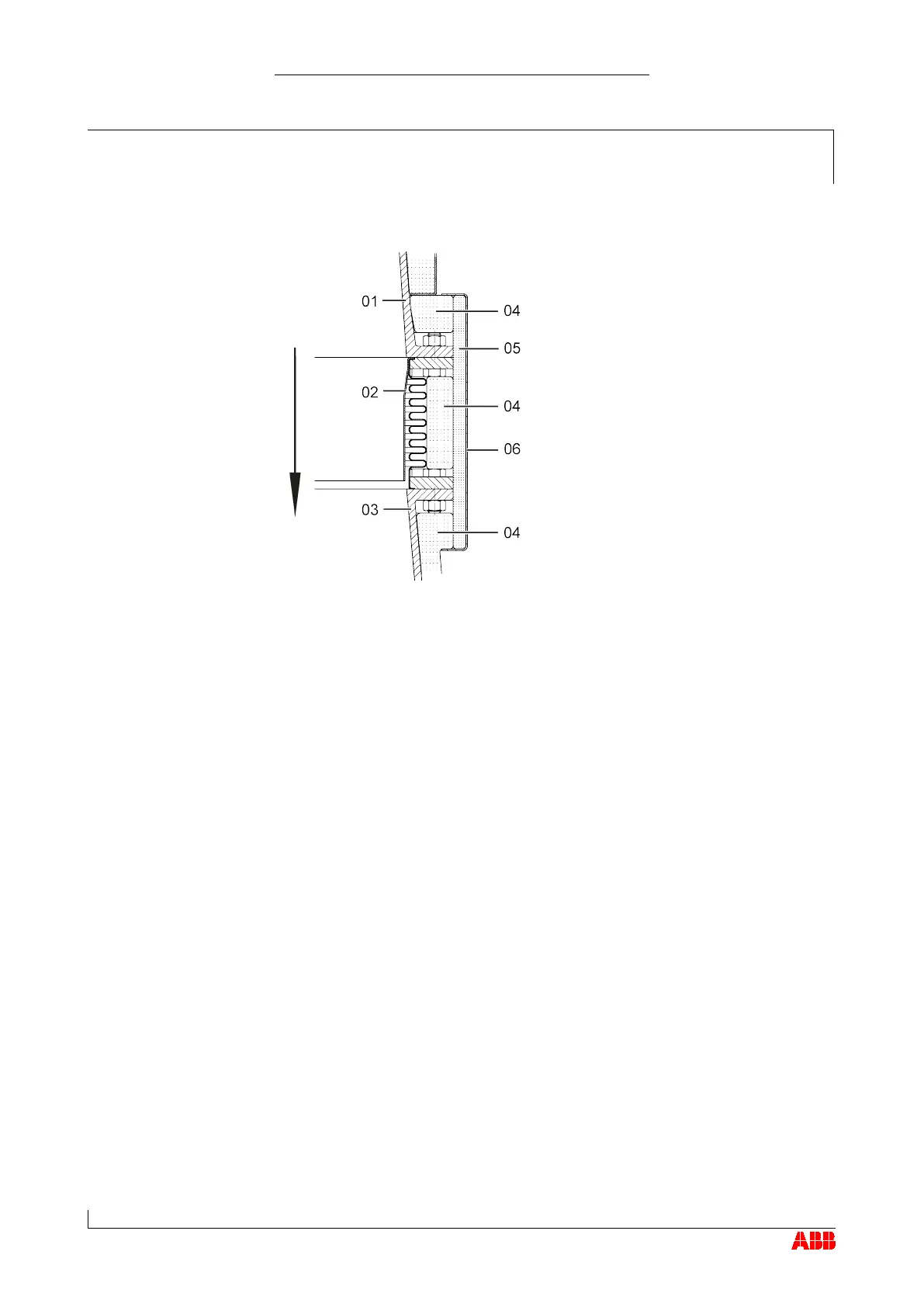

Suggestion for noise insulation of the bellows
01 Compressor casing 04 Insulation pads
02 Bellows 05 Insulation mat (at least 15 mm)
03 Charge air duct / scavenging
air line
06 Sheet metal cover
