Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018
CAUTION
If the rotor blades have insufficient or no clearance, the blades and cas-
ing could be damaged.
u Check that the blades do not rub on the turbine diffuser by rotating
the rotor.
u Remove the lifting gear.

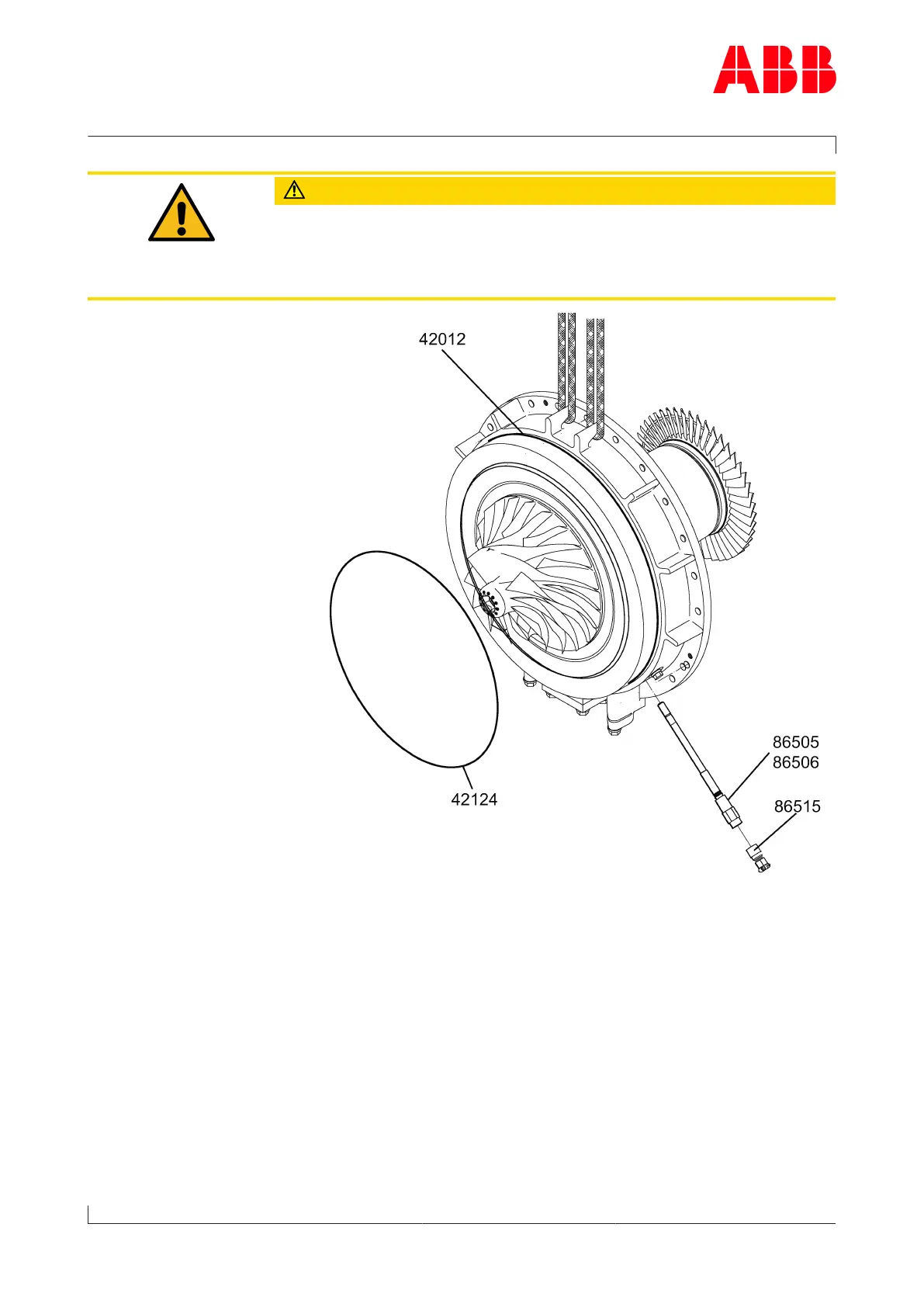

u Fit O-ring (42012).
u Screw in the speed sensor (86505) together with the O-ring (86506)
and plug in the cable connector (86515).
u Reconnect oil pipes.
Version with compressor wheel cooling system
u Fit the O-ring (42124).
u Fit the air supply line. (See also chapter entitled Preliminary remarks /
Layout and functionality)
Page 101 / 136
