ABB TPL69-A Series User Manual

Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
9 Taking out of operation at short notice / 9.2 Locking the rotor
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018
Table of tightening
torques [Nm]
Part number TPL69-A TPL73-A TPL77-A
74027 M16
105
M18
135
M20
175
94006 M8
25
M8
25
M8
25
94007 M8
15
M8
15
M8
15
NOTICE
Carried out work as described in the chapter Disassembly and as-
sembly.

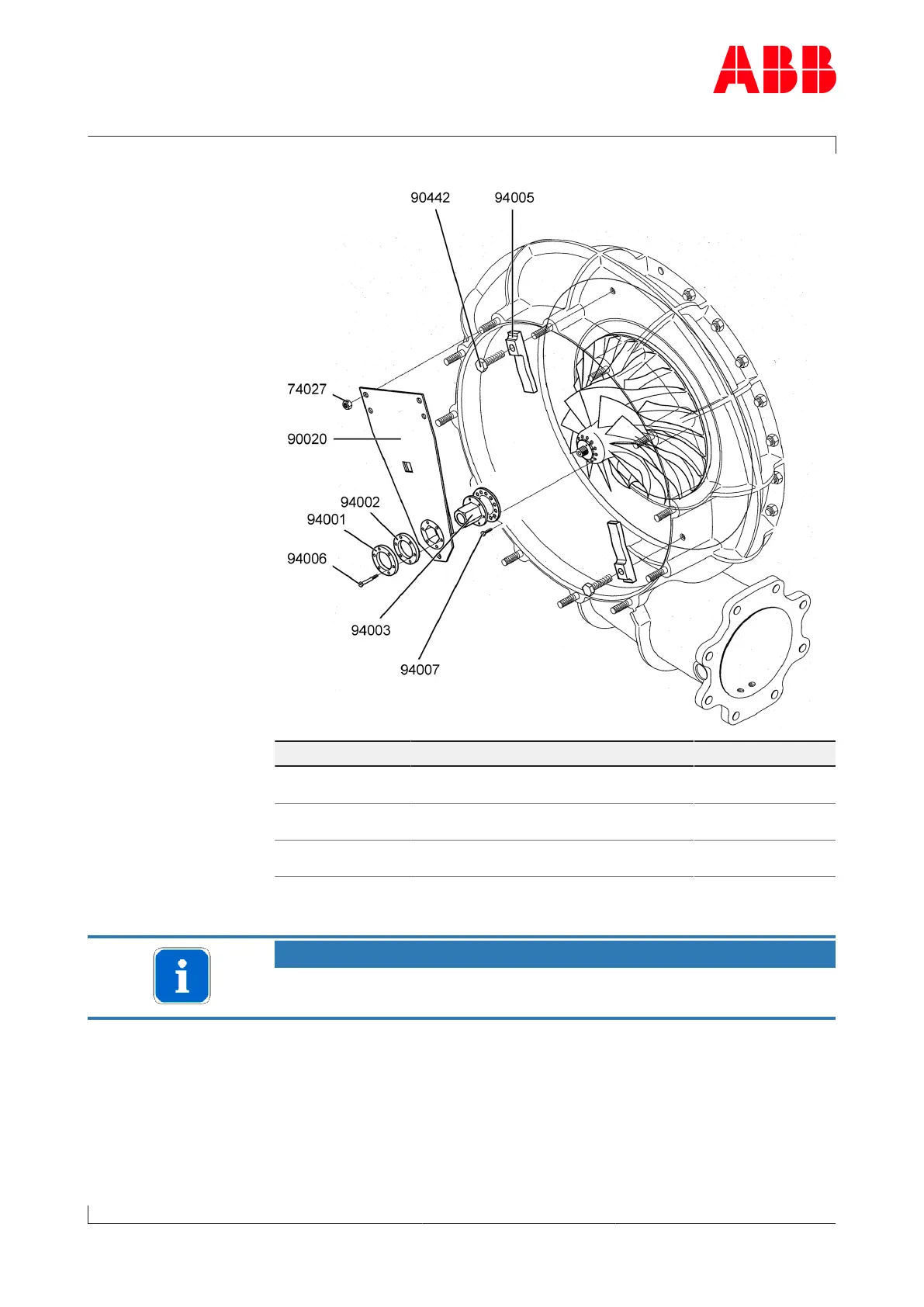

u Remove silencer or air suction branch and compressor casing internal
part complete with wall insert and diffuser.
u Fit partition wall clamp (94005) using screws (90442).
u Fit locking flange (94003) using nuts (74027) and then screws
(94007 / 94006) and tighten according to Table of tightening
torques.
Page 118 / 136
