Fitting the filter silencer
u Assemble the insert units (E) by inserting the absorption segments
(81136) into the sheet metal coverings (81137).
u Bend sheet metal coverings (81137) back to original shape.
u Insert the insert units (E) into slot guides in filter silencer unit (81135).

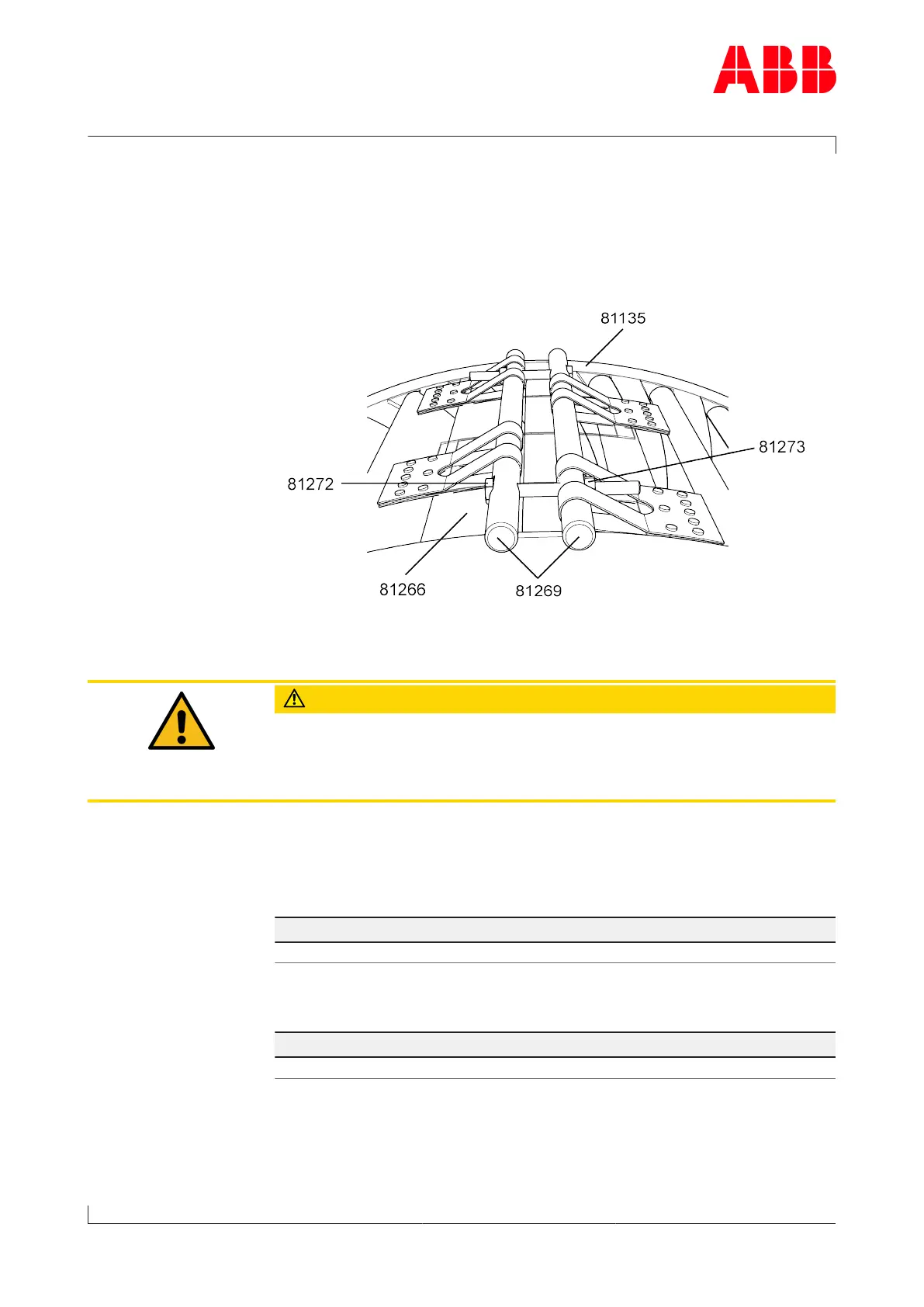

u Install cover grids (81266) uniformly and in the correct position.
u Push connecting rods (81269) through the lugs of cover grids (81266).
CAUTION
If connecting rods (81269) are not correctly positioned in their recesses
on filter silencer body (81135), cover grid (81266) can twist and shift.
There is then a risk of foreign matter and contamination getting into
the compressor.
u Join connecting rods (81269) using screws (81272). When tightening
the screws (81272), ensure that connecting rods (81269) are located
correctly in recesses in filter silencer body (81135). Now tighten
screws (81272) alternately until the following maximum torque is
reached:
Screw Tightening torque [Nm]
81272 20
u Screw lock nuts (81273) onto screw (81272) and tighten to following
torque:
Lock nut Tightening torque [Nm]
81273 40
If provided
u Fit filter strip (81265).
