ABB TPU Series User Manual

21

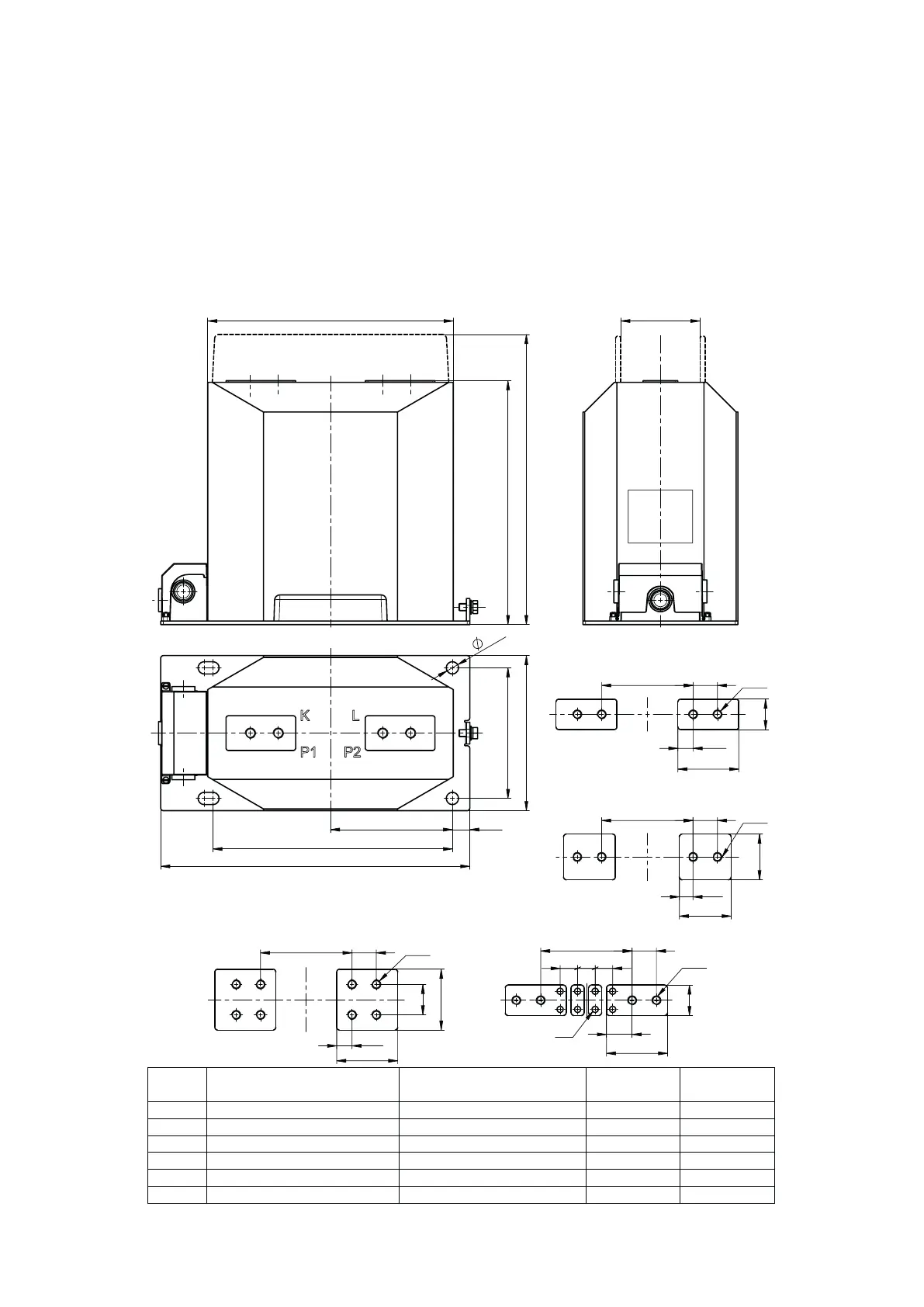

Dimensional Drawing TPU 6x.xx
280
b
a
D
B
F
150 178
14
E
H
80
40
32 120
20
M12
TPU 60.11, TPU 63.11
TPU 60.21, TPU 63.21
68
60
32 120
18
M12
TPU 60.13, TPU 63.13
TPU 60.23, TPU 63.23
80
40
32 120
33,5
23 23 23
M12
M8
TPU 60.12, TPU 60.14
TPU 60.22, TPU 60.24
80
80
32 120
40
20
M12
TPU 64.11, TPU 64.13
TPU 65.11, TPU 65.13
TPU 66.11, TPU 66.13
TPU 67.11, TPU 67.13
TPU 68.11, TPU 68.13
TPU 60(3).11, TPU 60.12
TPU 64(5,6,7,8).11
TPU 60(3).13, TPU 60.14
TPU 64(5,6,7,8).13
TPU 60(3).21
TPU 60.22
TPU 60(3).23
TPU 60.24
a [mm]
- 340 - 340
B [mm]
355 355 455 455
b [mm]
282 282 382 382
D [mm]
275 275 375 375
E [mm]
140 140 235 235
F [mm]
20 20 25 25

ABB TPU Series Specifications

General

Category	Transformer
Series	TPU
Primary Voltage	Up to 36 kV
Cooling Type	ONAN / ONAF
Rated Power	Up to 5 MVA
Frequency	50 Hz / 60 Hz
Temperature Rise	As per applicable standards
Standards	IEC
Impedance	As per applicable standards
