30
1ZSE 5492-118 en, Rev. 4
TC_00248
TC_00168
TC_00239
5 Final assembly
SA25
Horizontal drive shaft
SA10 Hose clip
SA11 Couplinghalves
SA12 Hexhead cap screw M6
SA13 Washer
SA14 Vertical square shaft
SA15 Vertical protective tube
SA16 Vertical protective tube
SA17 Clamp
SA18 Hexhead bolt M10
SA19 Washer
SA20 O-ring
SA21 Bevel gear
SA22 Horizontal square shaft
SA23 Horizontal protective tube
SA24 Horizontal protective tube
SA25 Information plate
SA26 Multiple hole coupling
SA27 Hexhead bolt M8
1)
SA28 Washer
1)
SA29 Locknut M8
1)
1)
Included in SA 26
Vertical drive shaft
Multiple hole
coupling
Motor-drive
mechanism
BUE
SA17
SA18
SA19
SA10
SA11
SA12
SA13
SA16
SA14
SA15
SA11
SA12
SA13
SA10
SA11
SA12
SA13
Bevel gear on the top cover SA10
SA11
SA12
SA13
SA25 SA22 SA24 SA23 SA25 SA10 SA21 SA20
SA26
SA29
SA27, SA28

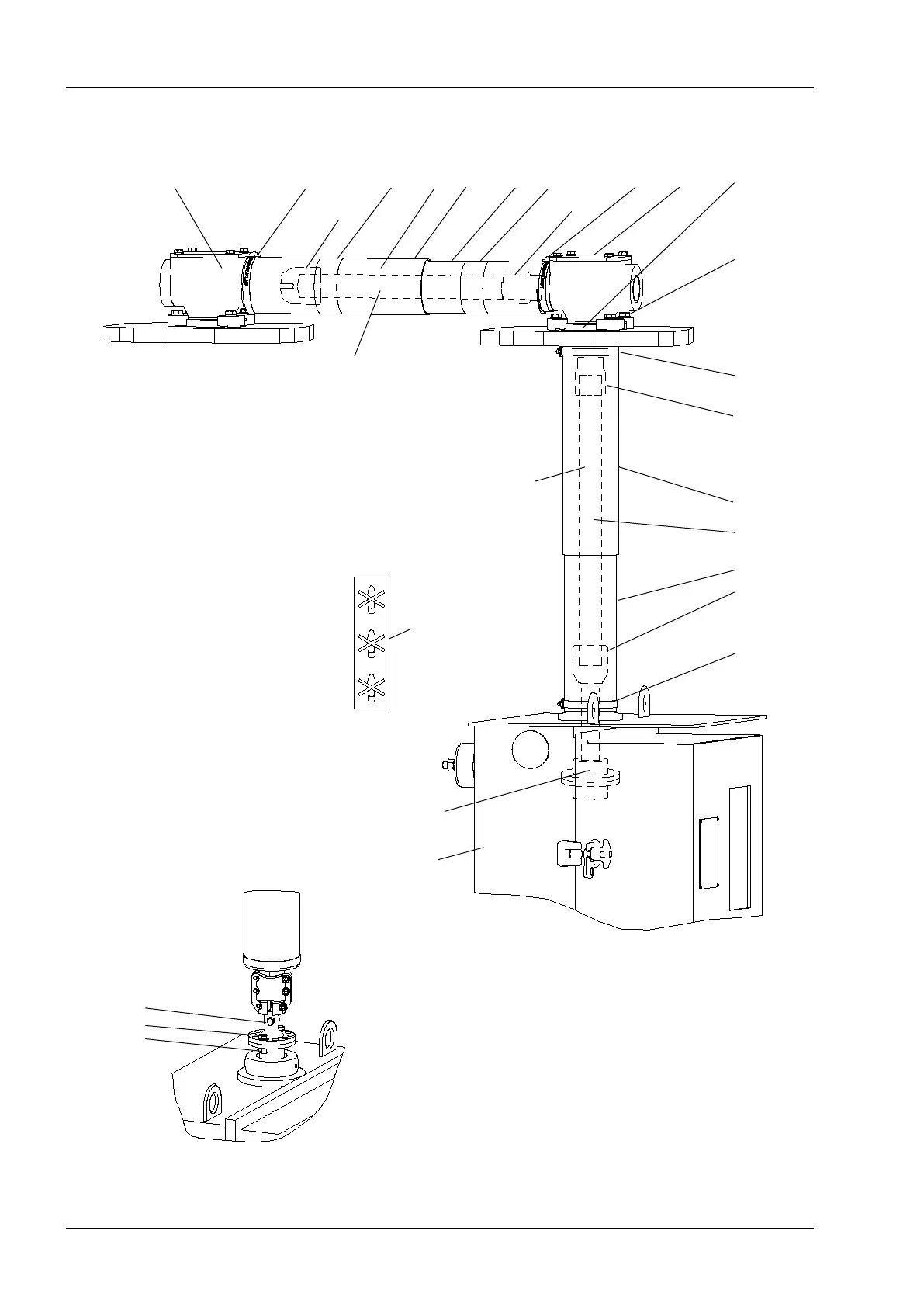

Fig. 16. External shaft system
BUL
