IB 6.2.7.7-3 APPENDIX
3
0

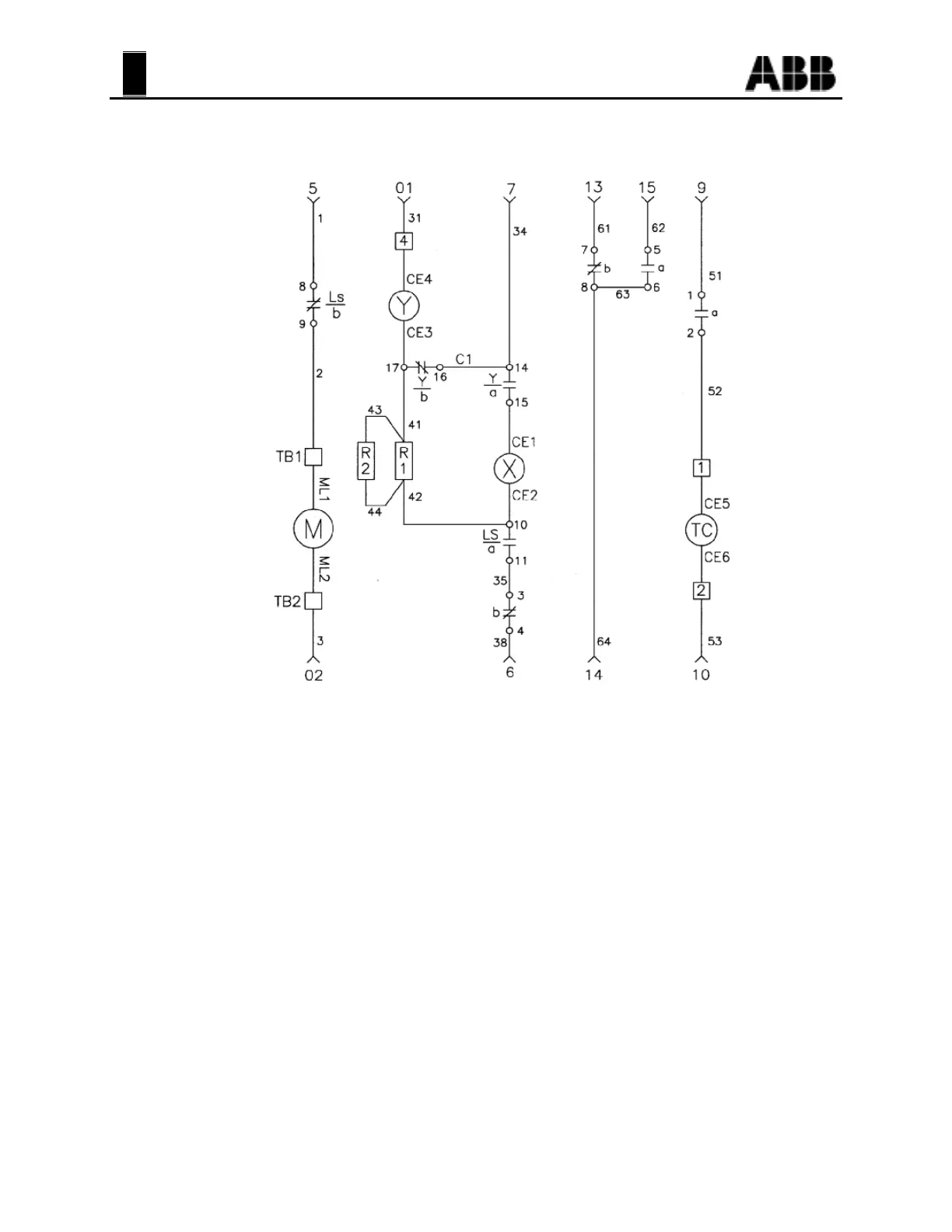

TYPICAL AC SCHEMATIC DIAGRAM OF CONTROL CIRCUIT
FIGURE A13
c- Auxiliary Switch Contact Closed When Breaker is Closed.
d- Auxiliary Switch Contact Open When Breaker is Closed.
LCb - Latch Check Switch Contact Closed When Breaker Operating Mechanism is
Reset.
LSa - Limit Switch Contact Open When Springs are Discharged. Closed When
Springs are charged.
LSb - Limit Switch Contact Closed When Springs Are Discharged. Open When
Springs are Charged.
TC - Shunt Trip Coil.
X - Closing Latch Release Coil.
Y - Contol Relay Lockout Coil.
Ya - Normally Open Relay Contact.
Yb - Normally Closed Control Relay Contact.
TB - Terminal Block Point.
ML - Motor Lead.
CE - Coil Lead End.
C1,C2 - Terminal Jumper (Control Device).
--< - Female Secondary Disconnect Contact.
