ABB VTR161 - Weight and Transportation of the Turbocharger

Assembly Instructions / VTR..0 ... VTR..1
3 Weight and transportation of the turbocharger / 
© Copyright 2020 ABB. All rights reserved. HZTL455311P0026_EN Rev.B July 2020
3 Weight and transportation of the
turbocharger

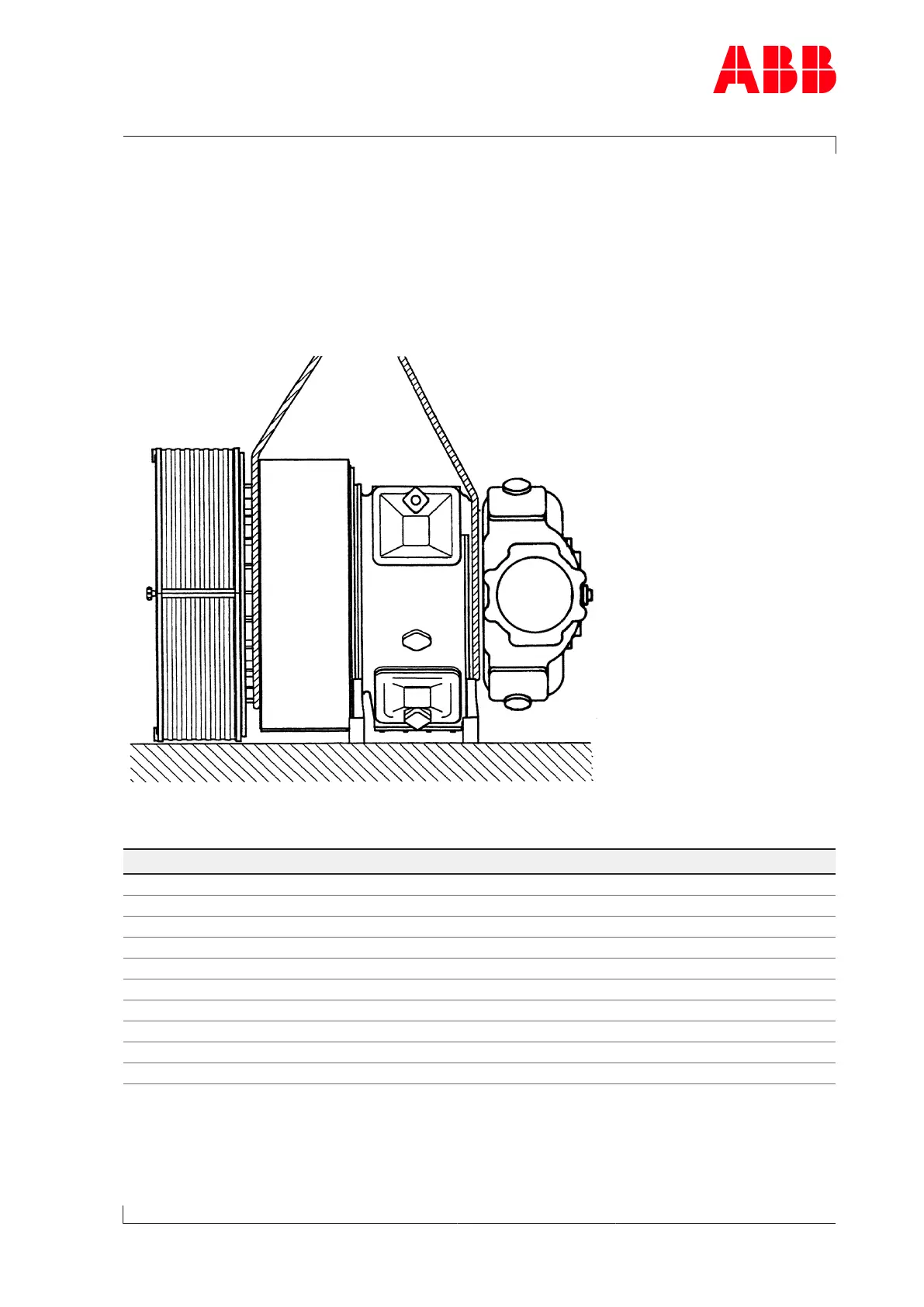

Lifting gear with a sufficient load limit must be used for installing the turbocharger. The fol-
lowing weight specification applies to the heaviest variant possible. Depending on the spe-
cification, the weight specified on the rating plate may be lower than the standard value
specified here.
Weights of the complete turbocharger
Product Weight [kg]
VTR 160 140
VTR 161 263
VTR 200 190
VTR 201 250
VTR 250 360
VTR 251 432
VTR 320 770
VTR 321 870
VTR 400 1180
VTR 401 1420
Table4
