Assembly Instructions / VTR..0 ... VTR..1
4 Installing the turbocharger / 4.1 Completion work, if required
© Copyright 2020 ABB. All rights reserved. HZTL455311P0026_EN Rev.B July 2020
4 Installing the turbocharger
NOTICE
Strength classes of foot fixing screws
For installation of the turbocharger, foot fixing screws in accordance with
strength class 10.9 or 12.9 have to be used.

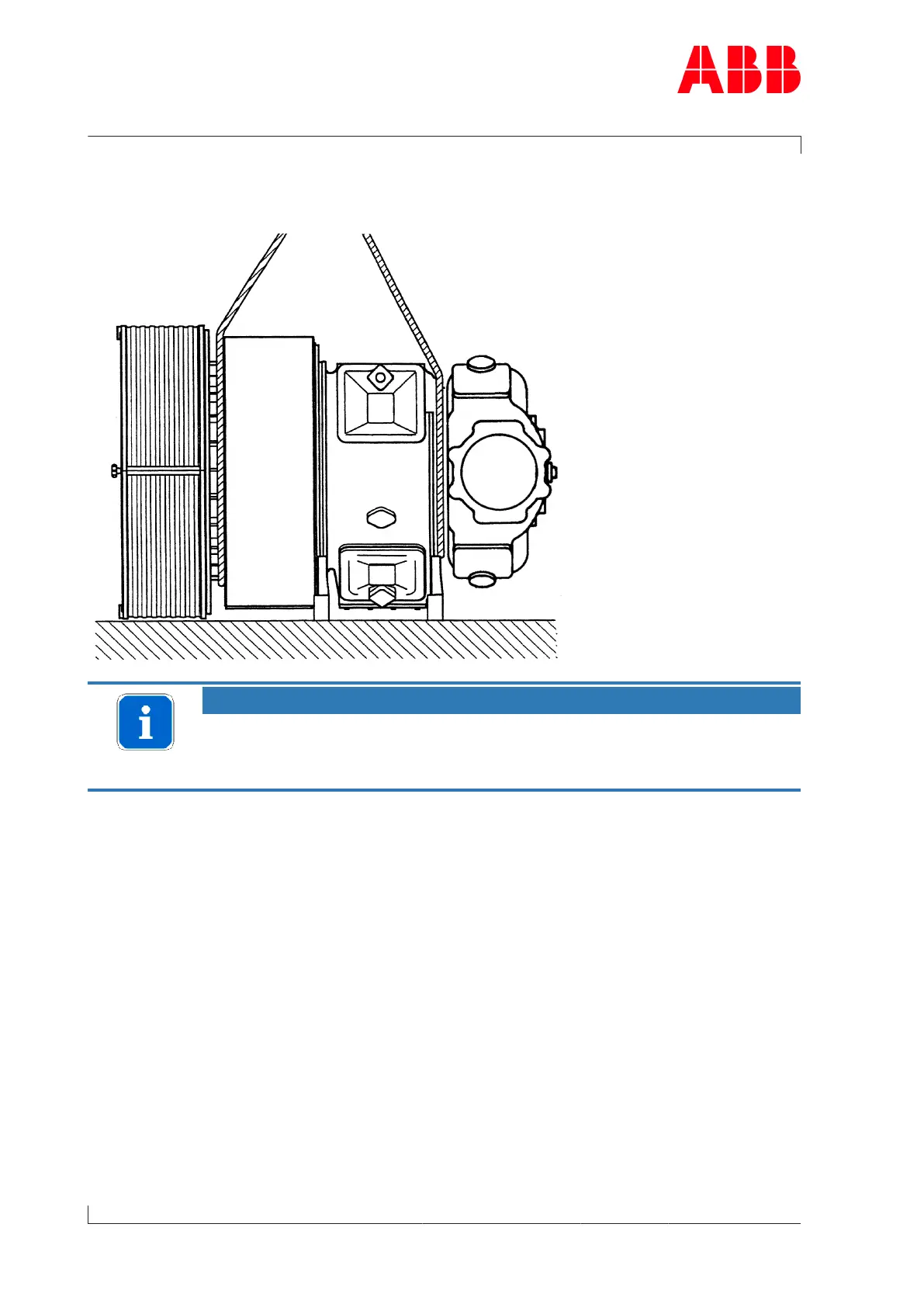

u Attach lifting gear to the turbocharger.
u Align turbocharger on bracket and place it.
u Tighten foot fixing screws with the admissible tightening torque.
u Remove the lifting gear.
4.1 Completion work, if required
u Attach all gas, air, water and oil pipes in accordance with the enginebuilder's instructions.
u Fit speed sensor and plug in cable connector.
