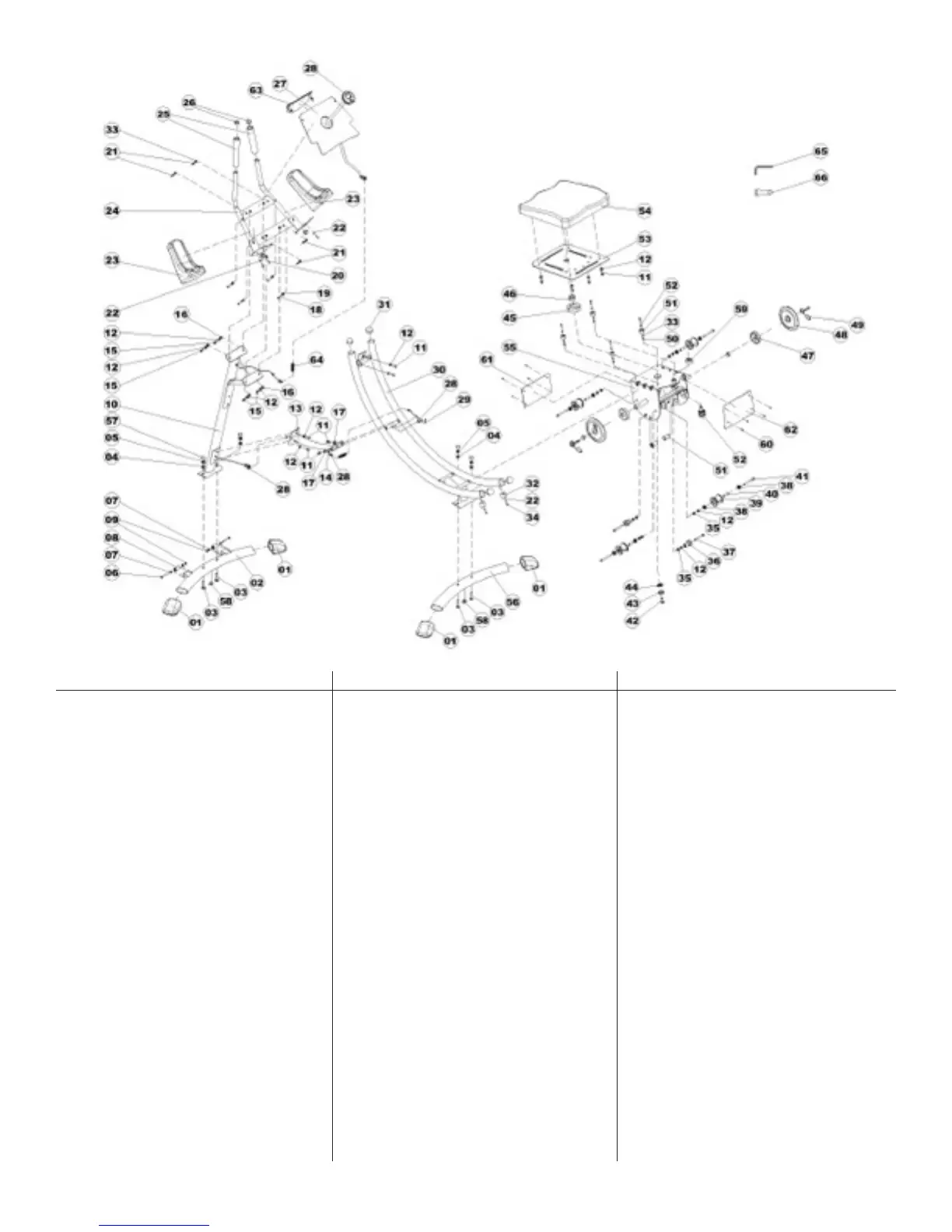

PARTS LIST AND VIEW
NO. Part Name Specification QTY (PCS)
01 foot grip match 70*35*1.5 elliptical tubing 4
02 front leg 1
03 M10*45 screw M10*45(15mm thread) 4
04 R71 arc washer
ø25*d10*2.0_R71 4
05 M10 nut M10 4
06 M6*50 flanged-hex screw M6*50(15mm thread) 2
07 ø13 flat washer ø13*d6*1.2 4
08
front leg wheel ø20*ø7*25 2
09 m6 nut M6 2
10 front support post 1
11 M8*15 hex screw M8*15 10
12 ø16 flat washer ø16*d8*1.5 22
13
front support brace
1
14 wire clip ø15*12 2
15
M8*20 hex screw M8*20 4
16 ø8 spring washer ø8 4
17 R12.5 ø16 arc washer ø16*d8*1.5, R12.5 2
18 M6*40 hex screw M6*40 4
19 R12.7 ø16 arc washer ø16*d6*1.2_R12.7 4
20 M6*15 screw M6*15 4
21 ST4.8*15 self-drilling phillips screw ST4.8*15 4
22
ø18 fla
t washer
ø18*d6*1.2 6
NO. Part Name Specification QTY (PCS)
23 arm cushion 2
24 handlebar frame 1
25 handlebar grip ø29*ø23*220 2
26 circular piston ma
tch ø25.4*1.5 tubing 6
27 arm plate 337*267*_24 1
28 counter including sensor, magnet, and ø76 wire 1set
29
M3*6 phillips screw M3*6 2
30 ab coaster track 1
31 ball piston match ø38*1.5 tubing 4
32 bumper ø32*26.5 2
33 ø10 flat washer ø10*d5*1.0 12
34 M5*10 phillips screw M5*10 2
35 M8 nut
M8
6
36 spacing wheel ø32*42 2
37
M8*65 hex screw M8*65(15mm thread) 2
38 bearing 608ZZ_ABEC-5 8
39 roller wheel ø54*48 4
40 roller wheel axle 12*1.5*30 4
41 M8*75 hex screw M8*75_15mm thread) 4
42 M10*25 hex screw M10*25 1
43 ø10 spring washer ø10 1
44
lifted washer
ø38*ø10.5*2
1
NO. Part Name Specification QTY (PCS)
45 nylon bushing ø70*ø40*20 1
46 ø38 nylon sleeve ø38*ø25*19 2
47 weight post collar ø70*8 2
48 weight pla
te (not inc
luded)
2.5KG/pcs,
ø26.5 4
49
weight plate clip (not included) ø25.4*1.5__ 2
50 M5 nut M5 4
51
seat swivel bushings ø25*20 4
52
M5*20 phillips screw M5*20 4
53 seat plate 1
54 seat cushion 1
55 U shape seat carriage 1
56 rear leg 70*35*1.5 1
57
m10 nut M10
4
58 leg support pad ø25*10 2
59
muffler ø28*13 1
60 ST3.5*10 self-drilling phillips screw ST3.5*10 8
61 front seat cover 1
62 rear seat cover 1
63 front logo plate 1
64 wire protection cover ø14.2*90*0.8 2
65 tool A S5 1
66
tool
B S10/S13/S17
1
