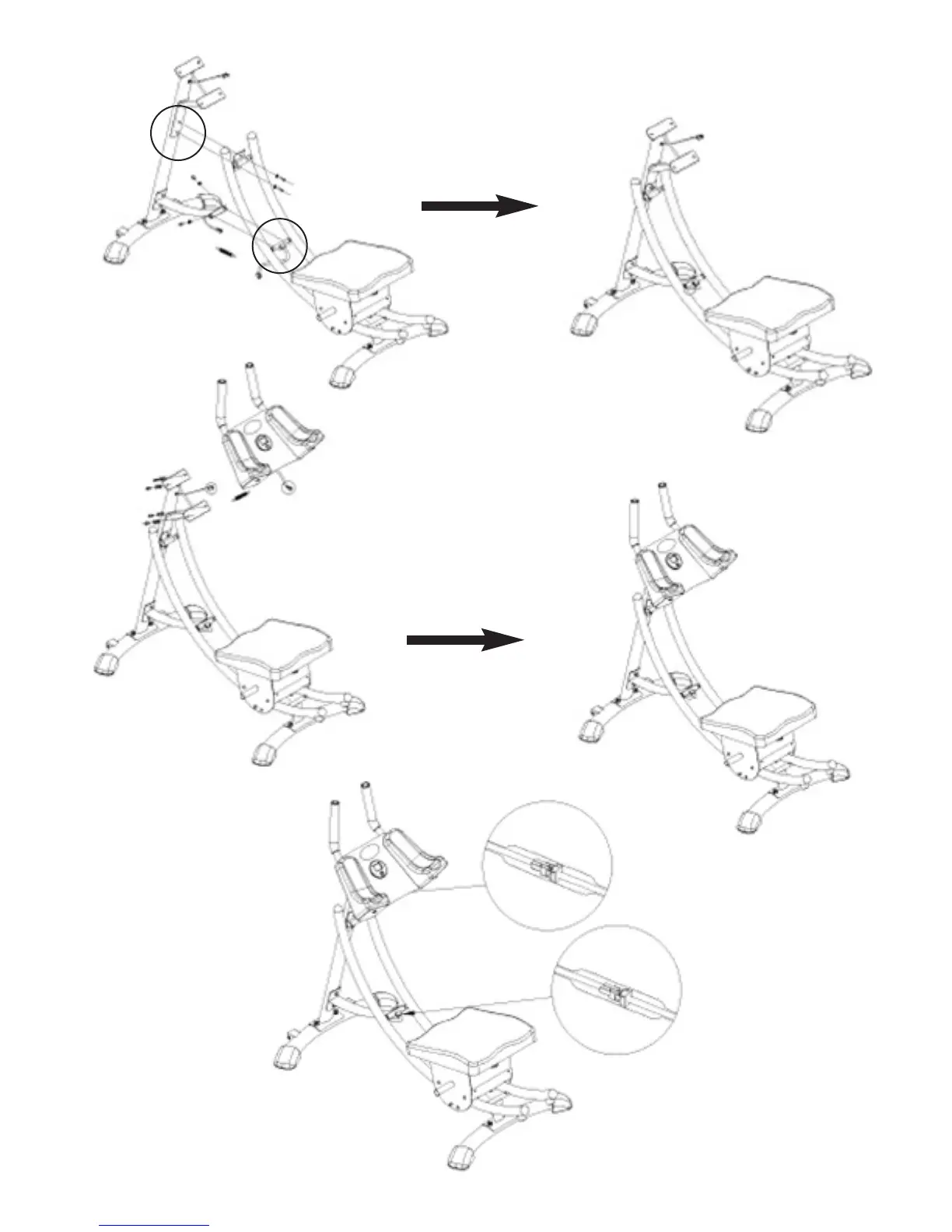

Step 4: Attach armrest console
to top of front post using the 4
pre-attached Allen head screws.
Tighten all bolts and screws
using tools provided. Cover
bolts with black plastic caps.
Step 3: Attach front post to curved
track. The front post is attached to
track in 2 locations as shown using
the 2 pre-attached Allen head screws
for each location. Finger tighten only.
5
Step 5: Connect counter wires
in 2 locations as shown. Install
wire protection covers to cover
wire connections.
To Next Page
