5

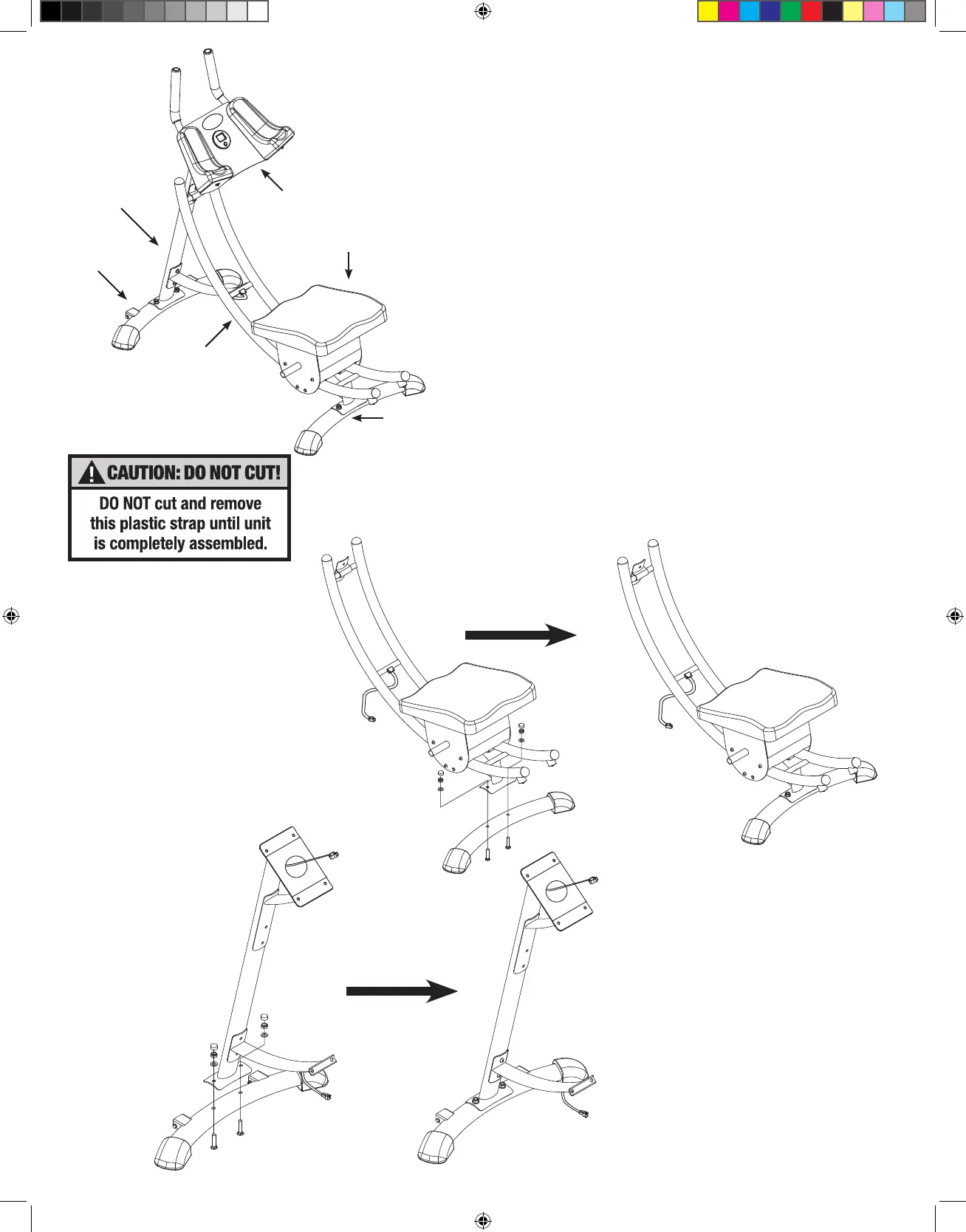

Step 1: Attach rear foot (without
wheels) to rear of curved track.
Remove the 2 bolts which have
been pre-attached to the rear foot,
then re-attach the bolts to connect
foot to track. Finger tighten bolts
only. Do not tighten bolts with tool
until unit is fully assembled.
Step 2: Attach front foot (with
wheels) to front post using the
2 pre-attached bolts. Finger
tighten only.
ASSEMBLY INSTRUCTIONS
IMPORTANT: Remove all parts from packing and inspect for
damage. Retain packing materials if possible.
CAUTION: Do not cut and remove the plastic strap with this label attached until
unit is completely assembed. The strap keeps the SEAT secure to the CURVED
TRACK for easy assembly.
FRONT POST
CURVED
TRACK
ARMREST
CONSOLE
SEAT
REAR
FOOT
Your Ab Coaster® has been thoroughly inspected and partly assembled before shipment. You will
need to take a few additional steps as described below to complete assembly.
Step 1: Attach Rear Foot
Step 2: Attach Front Foot
Step 3: Attach Front Post
Step 4: Attach Armrest Console
Step 5: Connect Wires
FRONT
FOOT
AbC_Black_Manual_V1_120511.indd 10 11/29/12 10:54 AM
