6
Step 4: Attach armrest console
to top of front post using the 4
pre-attached Allen head screws.
Tighten all bolts and screws
using tools provided. Cover
bolts with black plastic caps.

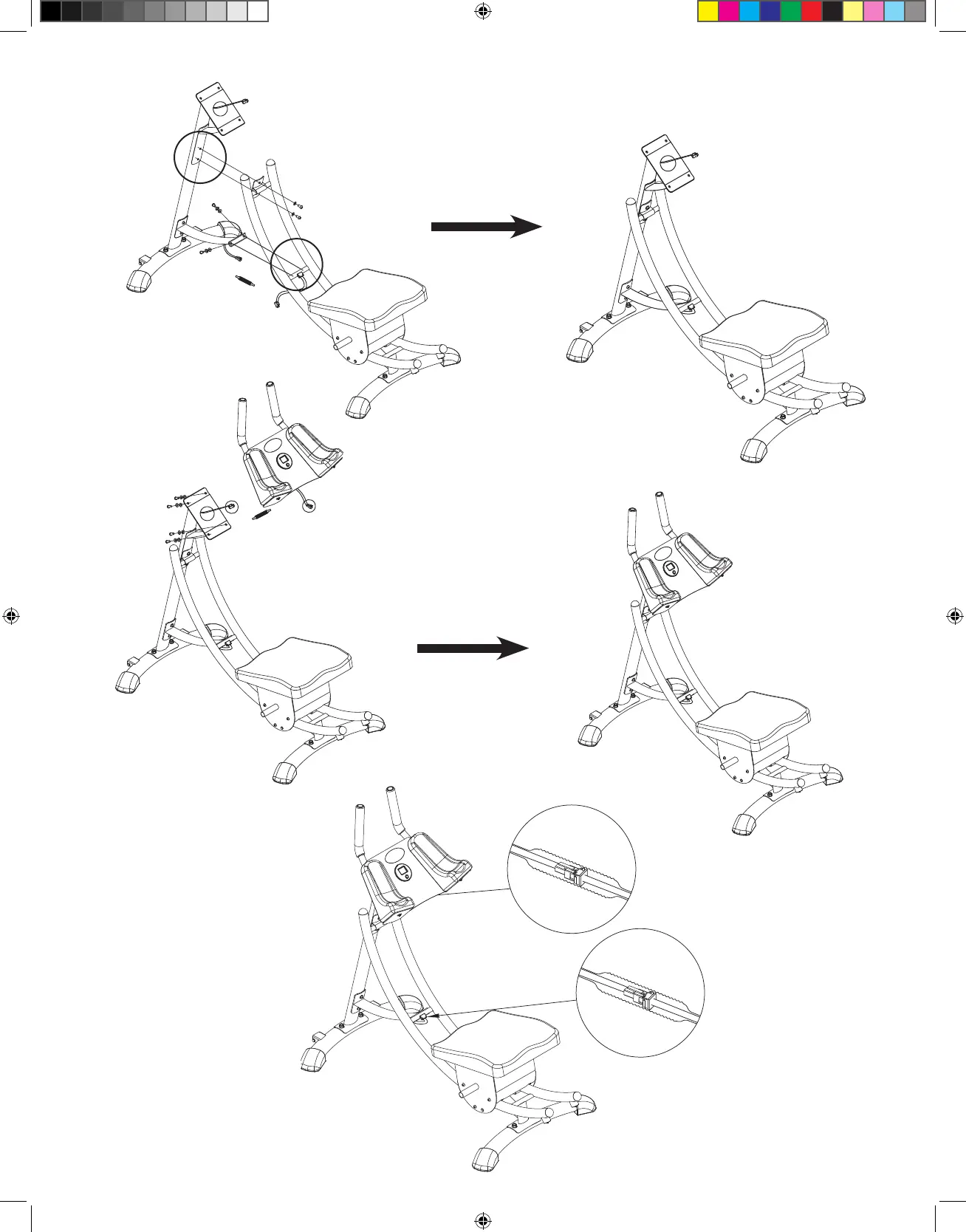

Step 3: Attach front post to curved
track. The front post is attached to
track in 2 locations as shown using
the 2 pre-attached Allen head screws
for each location. Finger tighten only.
Step 5: Connect counter wires
in 2 locations as shown. Install
wire protection covers to cover
wire connections.
Now you may safely cut the
strap that secures the SEAT.
(The strap with the Caution
label that says “Do Not Cut”).
AbC_Black_Manual_V1_120511.indd 11 11/29/12 10:54 AM
To Next Page
